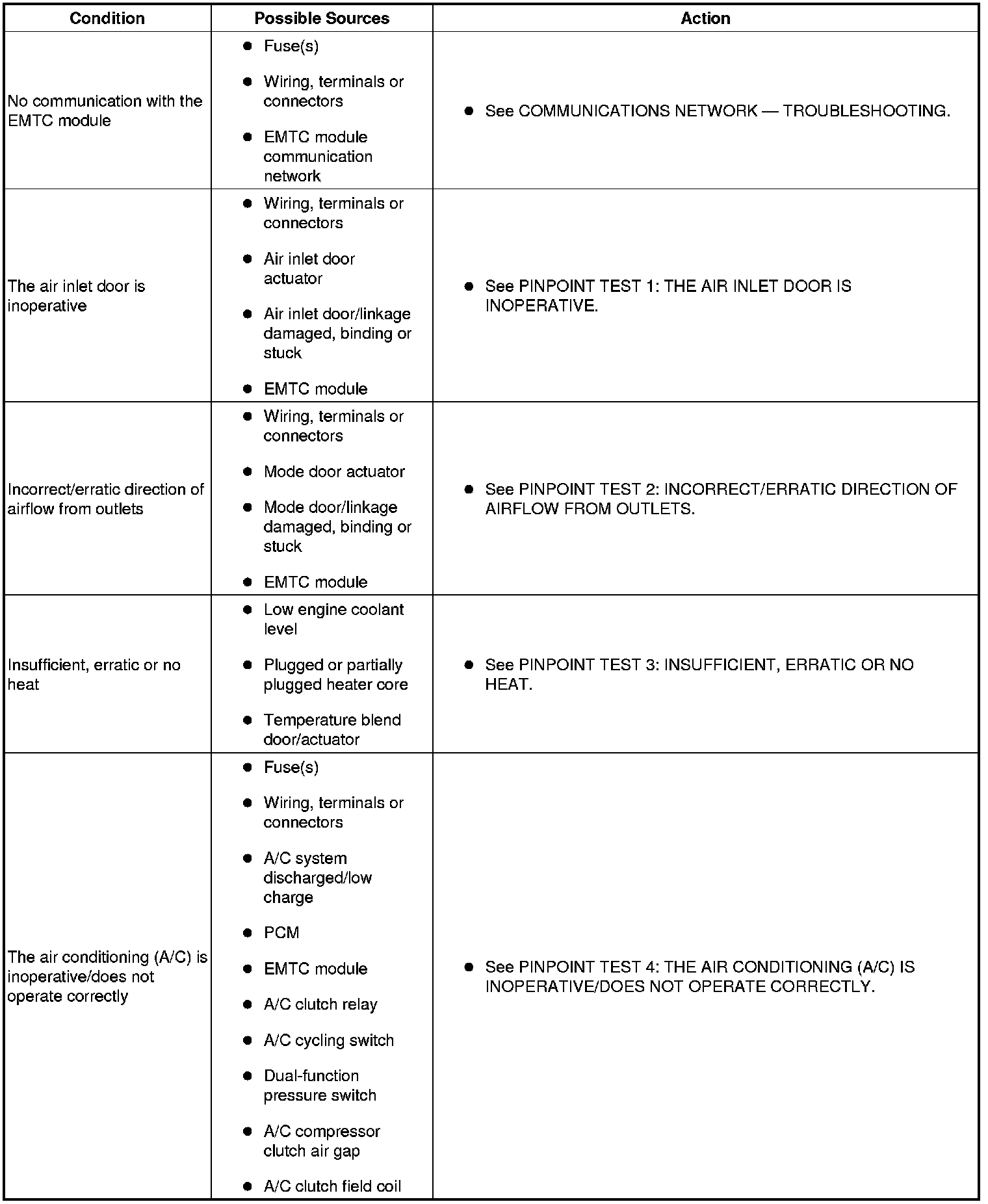

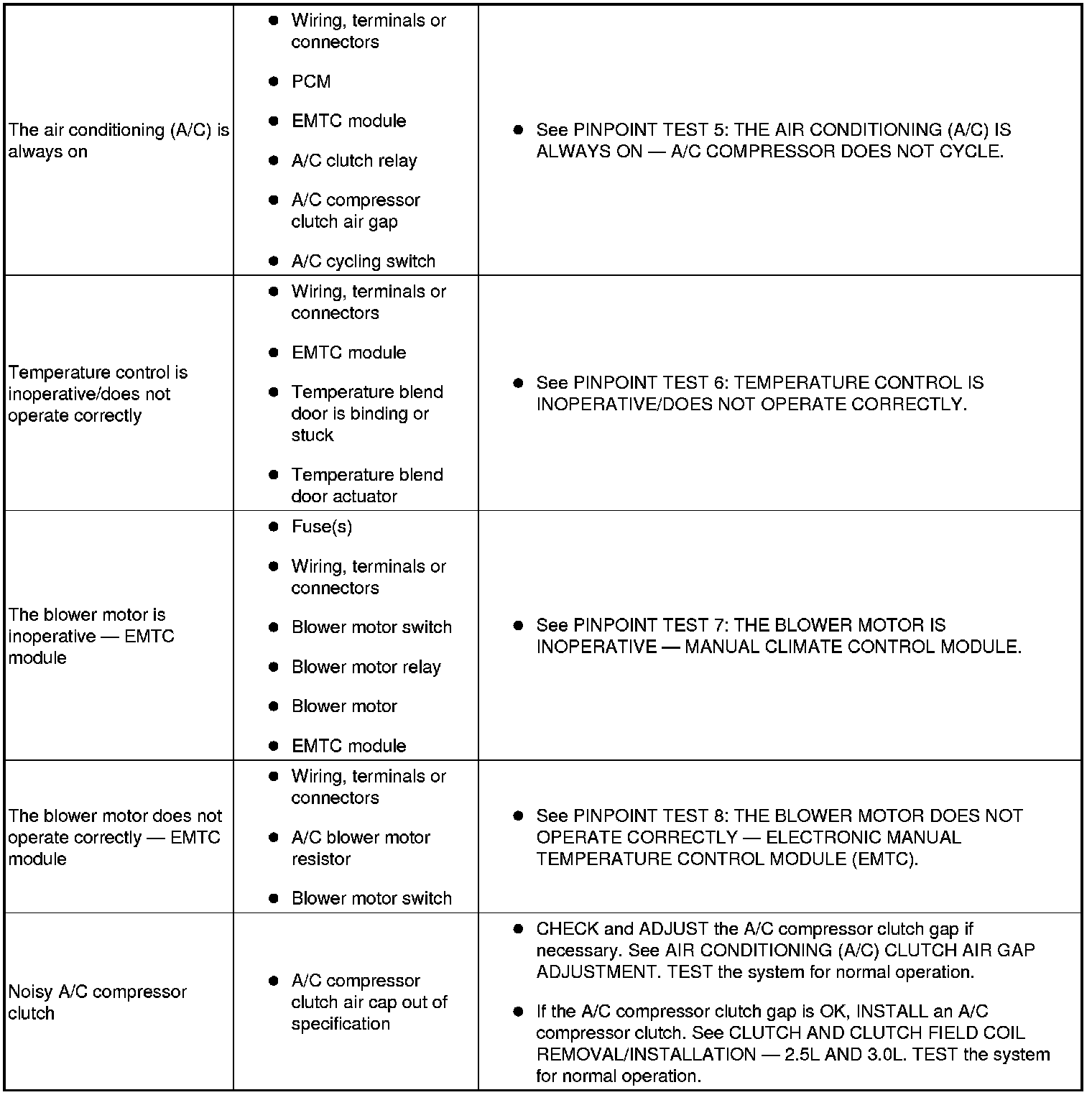

Symptom Troubleshooting Chart - Climate Control

SYMPTOM TROUBLESHOOTING CHART - CLIMATE CONTROL

NOTE:Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those first. See - PCM - DTC Index.
