Courtesy Lamp: Service and Repair

INTERIOR LAMP REMOVAL/INSTALLATION









Removal and Installation

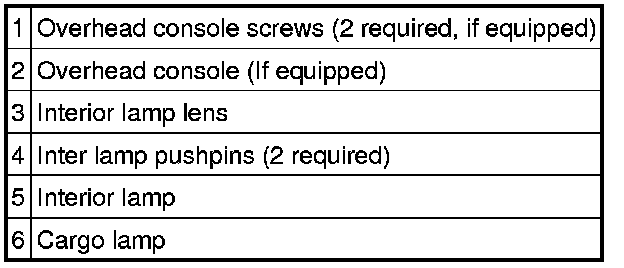

Overhead console

1. Open the overhead console storage door to access the screws.

- Remove the 2 screws.

2. Pull the overhead console down and remove the console from the headliner retainer.

- Disconnect the electrical connector.

Interior lamp

1. Using a small flat screwdriver, release and remove the interior lamp lens.

2. Remove the interior lamp.

- Remove the 2 pushpins.
- Disconnect the electrical connector.

Cargo lamp

1. Remove the cargo lamp.

- Disconnect the electrical connector.

All interior lamps.

1. To install, reverse the removal procedure.
