Test 3: Intermittent

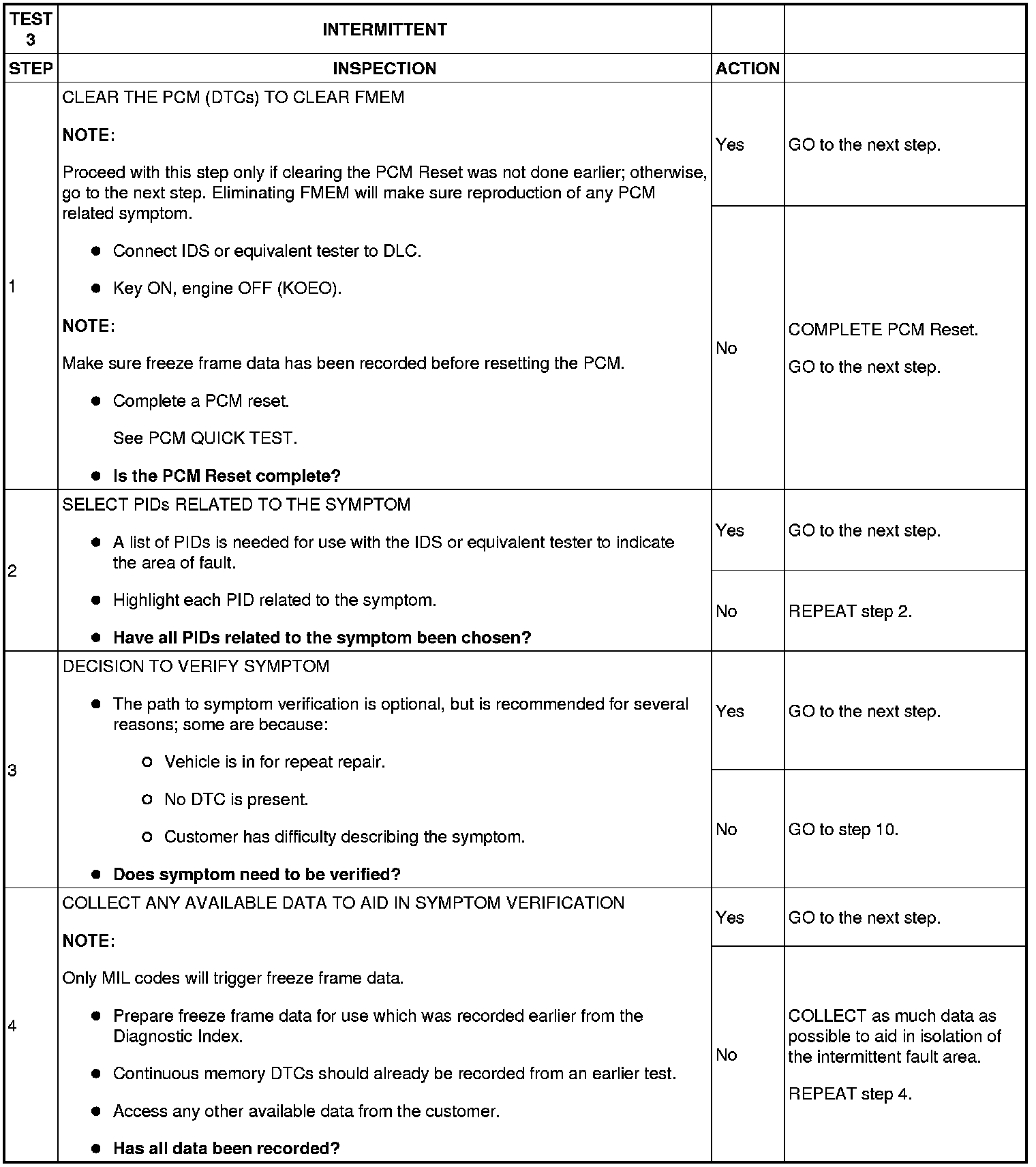

TEST 3: INTERMITTENT

WARNING:When carrying out any of the test steps, always be aware of hands, clothing or tools near cooling fans or hot surfaces.
NOTE:PIDs selected from the PID/DATA MONITOR table will display commanded values only. Digital multimeter measurements will display actual values.
