Exploded Views

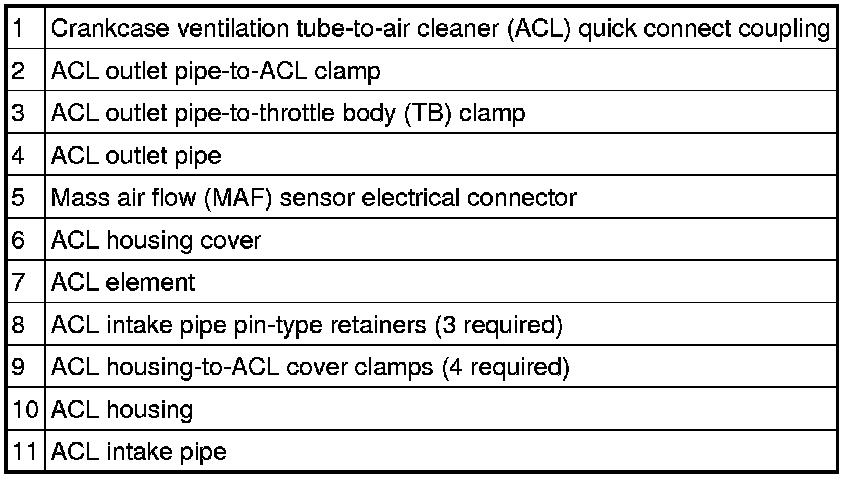

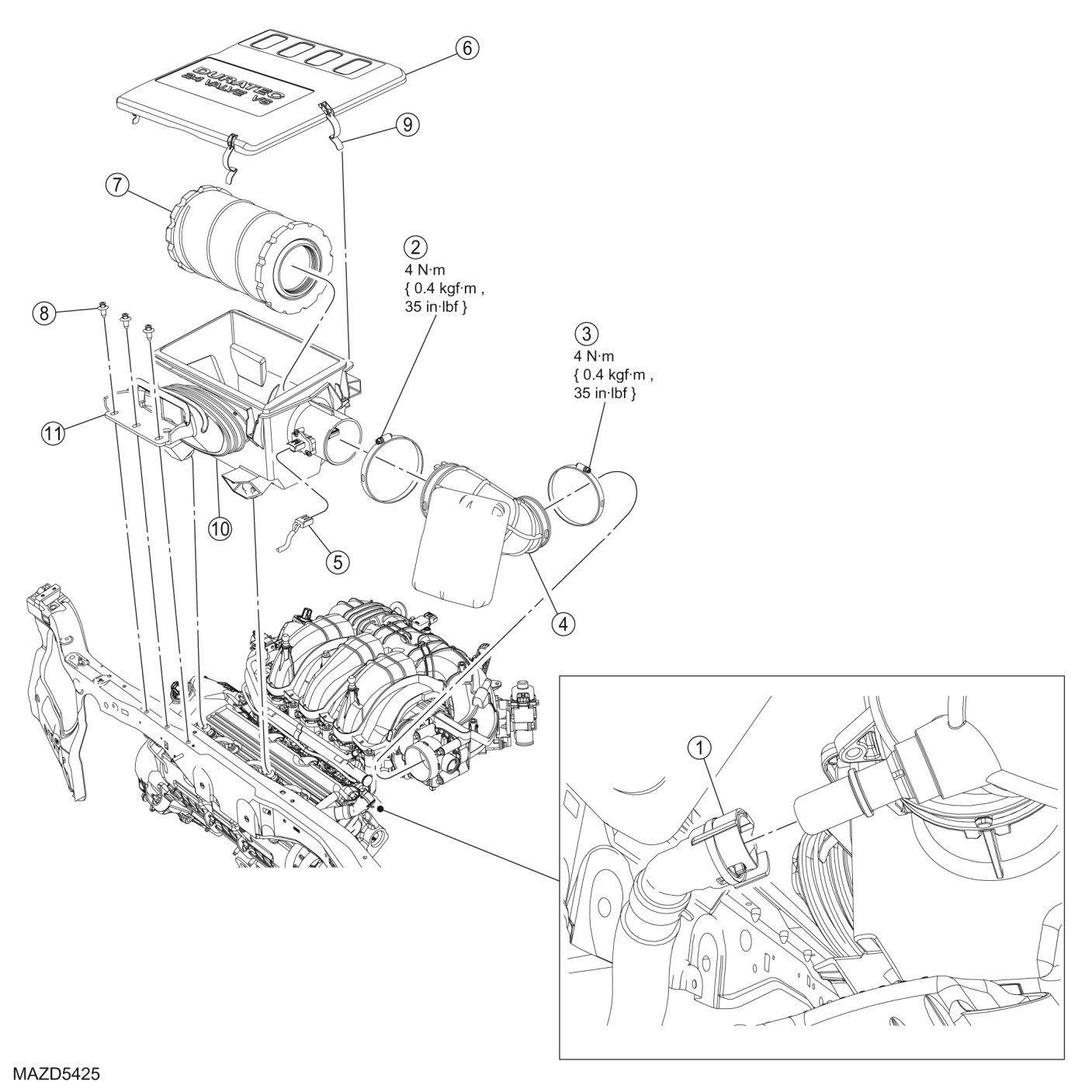

INTAKE AIR SYSTEM COMPONENTS EXPLODED VIEW - 3.0L









1. For additional information, see the procedures.
