Intake Manifold

LOWER INTAKE MANIFOLD





- Tighten in the sequence shown to 10 Nm {0.1 kgf-m, 89 in-lbf}.

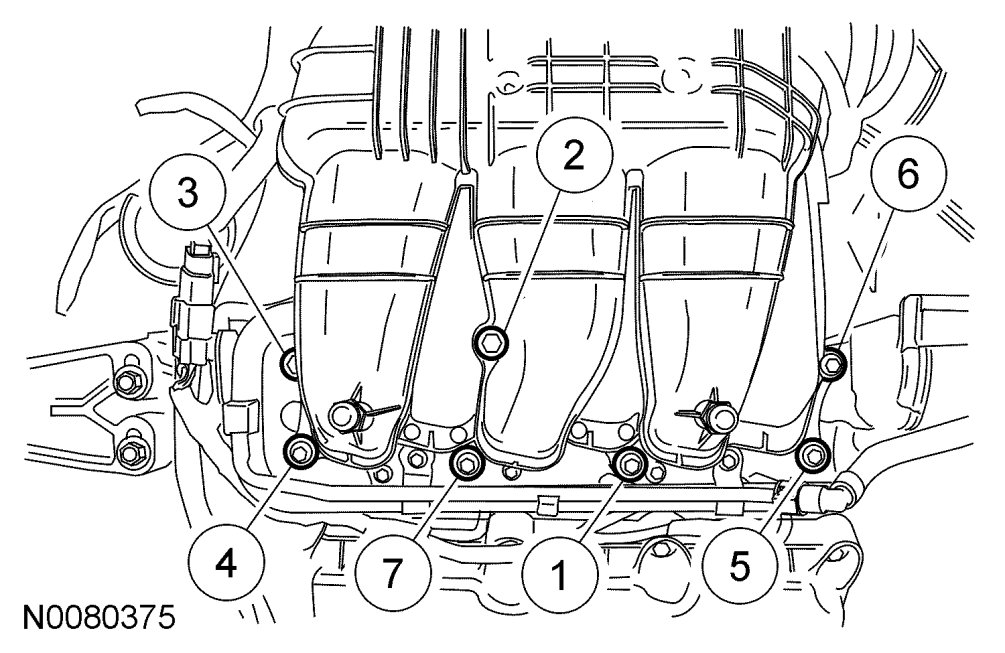

UPPER INTAKE MANIFOLD





- Tighten the bolts in 2 stages in the sequence shown.

- Stage 1: Tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.
- Stage 2: Tighten an additional 45 degrees.
