Exhaust Manifold

6 new LH exhaust manifold studs.

Tighten to 12 Nm {1.2 kgf-m, 106 in-lbf}.

LH catalytic converter Manifold and the 6 nuts






Tighten in 2 stages in the sequence shown

Tighten to 20 Nm {2.0 kgf-m, 177 in-lbf}.

6 new RH exhaust manifold studs.

Tighten to 12 Nm {1.2 kgf-m, 106 in-lbf}.

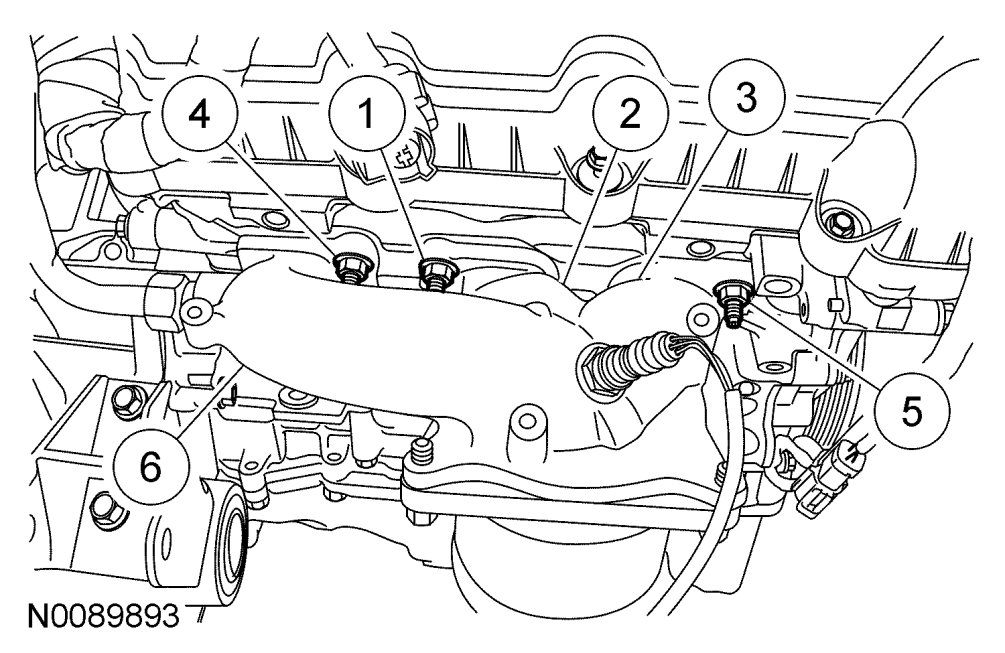

RH exhaust manifold and new nuts.






Tighten the nuts in 2 stages in the sequence shown.

Tighten to 20 Nm {2.0 kgf-m, 177 in-lbf}.
