Connector End Views - Charging System
Connector End Views - Charging System

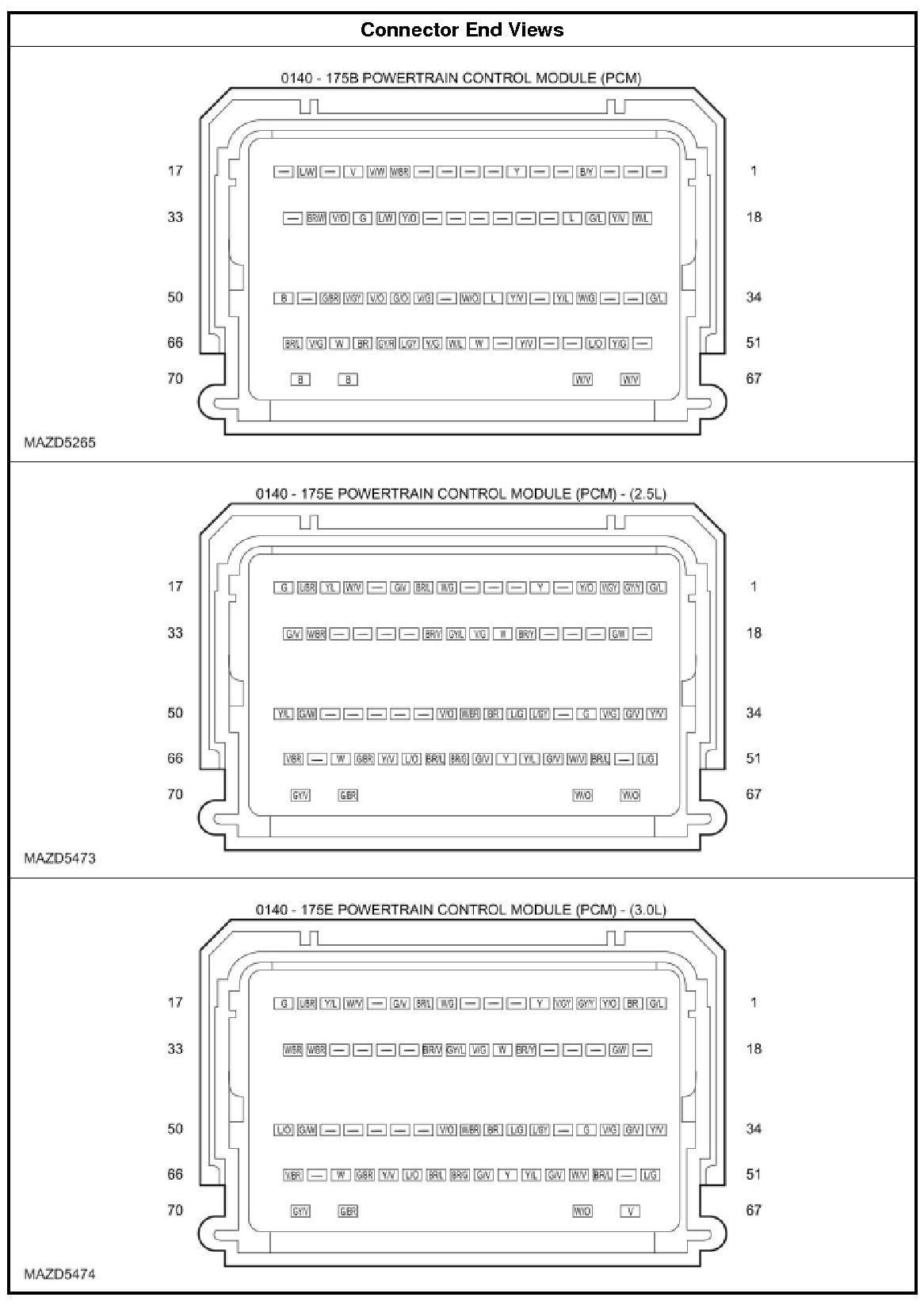

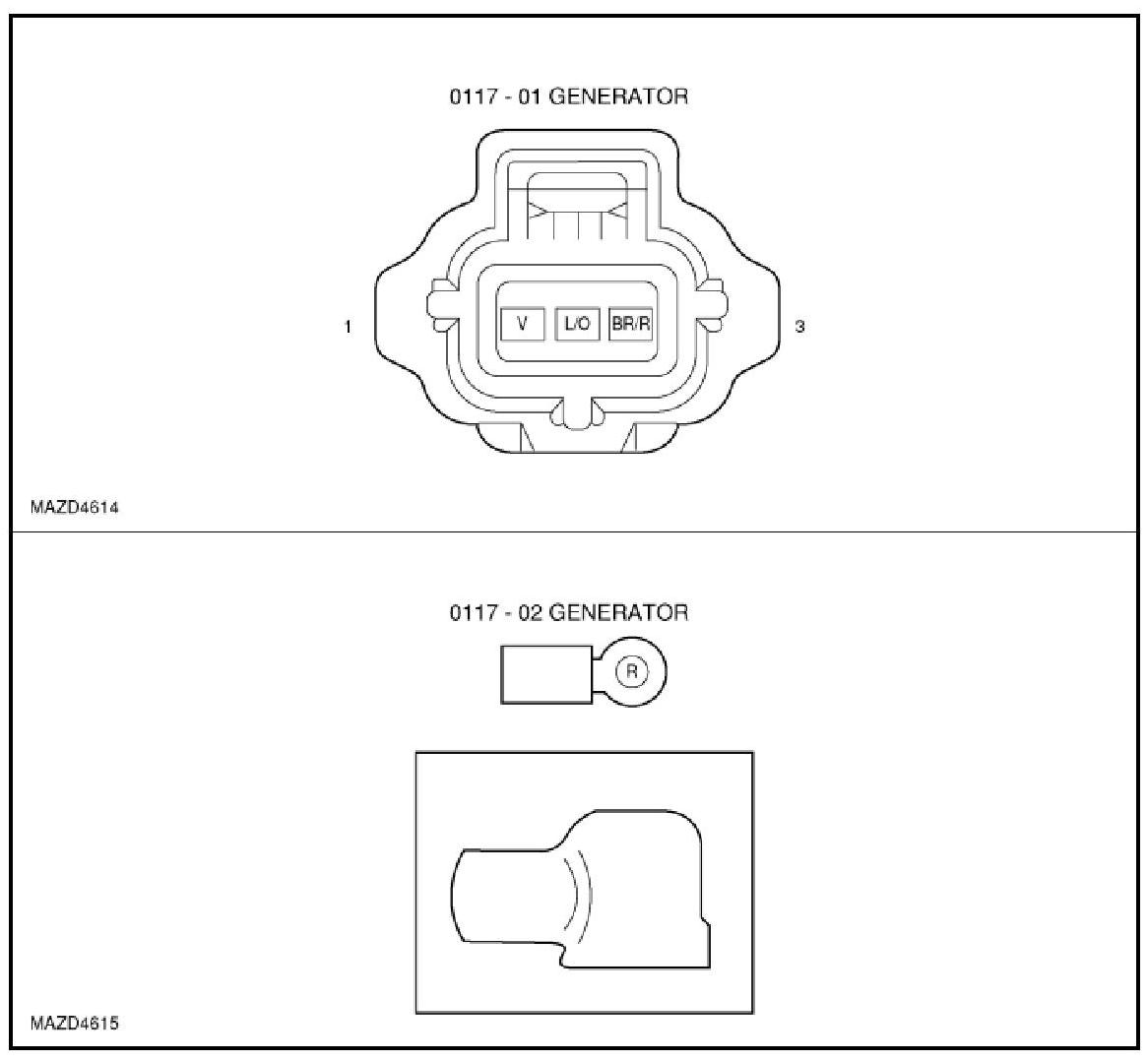

CONNECTOR END VIEWS -
CHARGING SYSTEM
