Connector End Views - Starting System
Connector End Views - Starting System

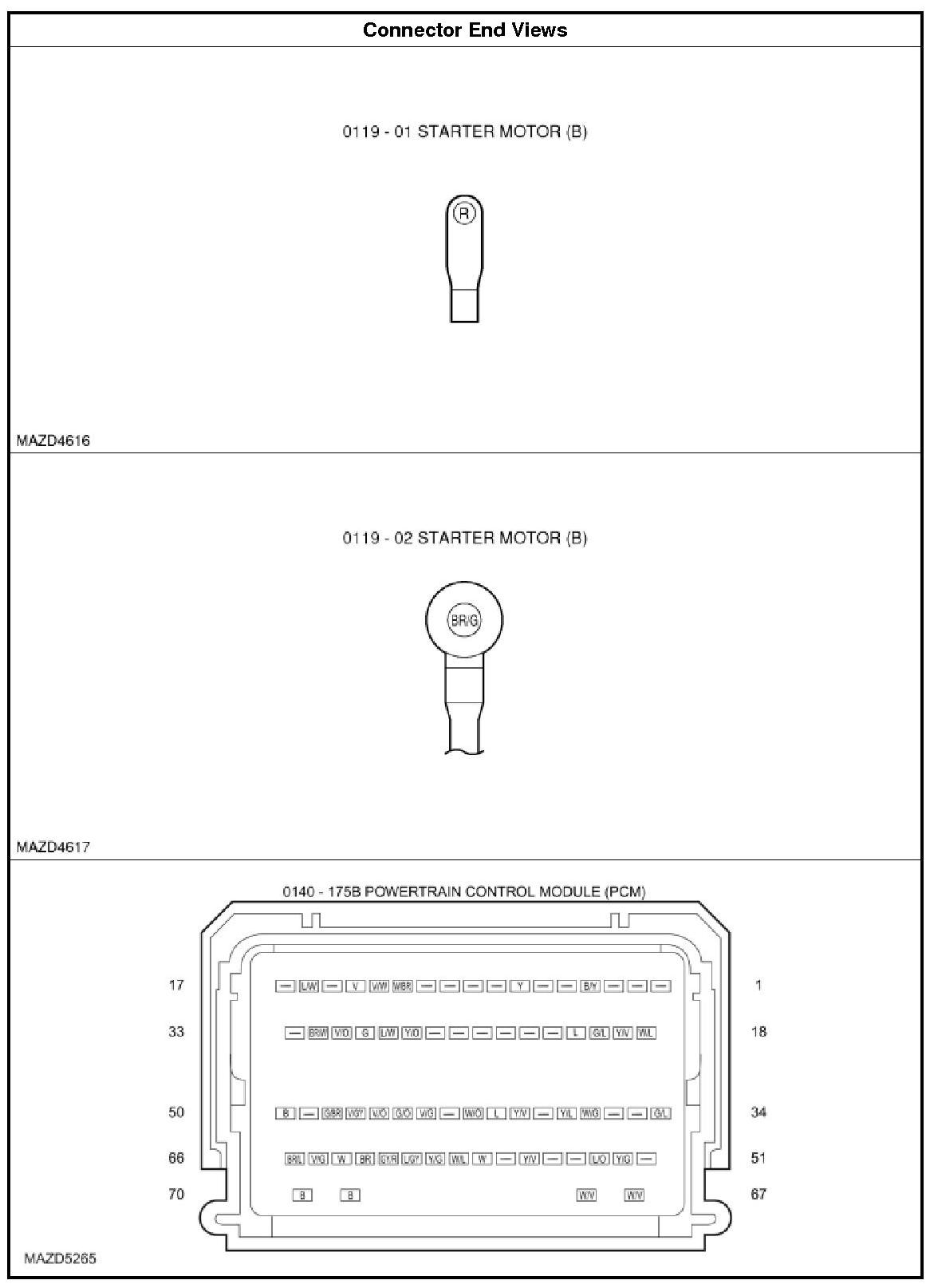

CONNECTOR END VIEWS -
STARTING SYSTEM
