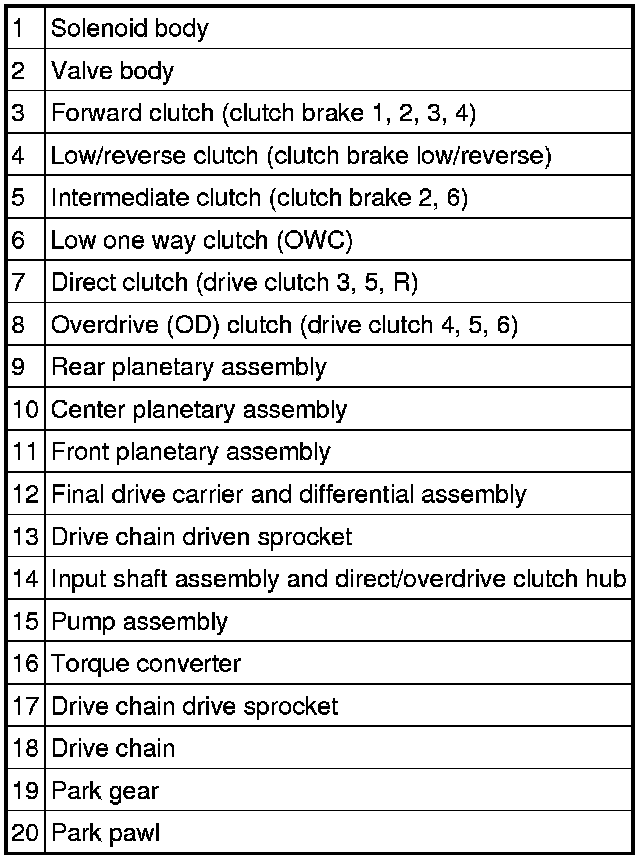

This transaxle has the following major components:

- Case with torque converter housing
- Two drive clutches:

- Direct clutch
- Overdrive (O/D)

- Four brake clutches:

- Forward clutch
- Low one-way clutch
- Low/reverse clutch
- Intermediate clutch

- Three planetary gearsets:

- Front
- Center
- Rear

- Drive chain and sprockets
- Final drive planetary gearset and differential assembly
- Pump and filter assembly
- Main control:

- Valve body assembly
- Solenoid body assembly

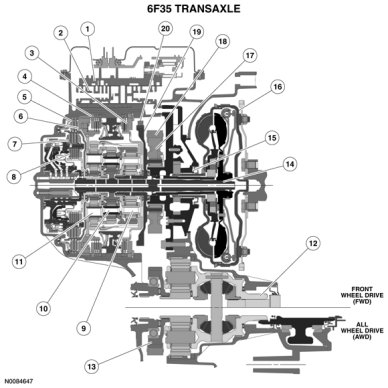

Major Component Cutaway View

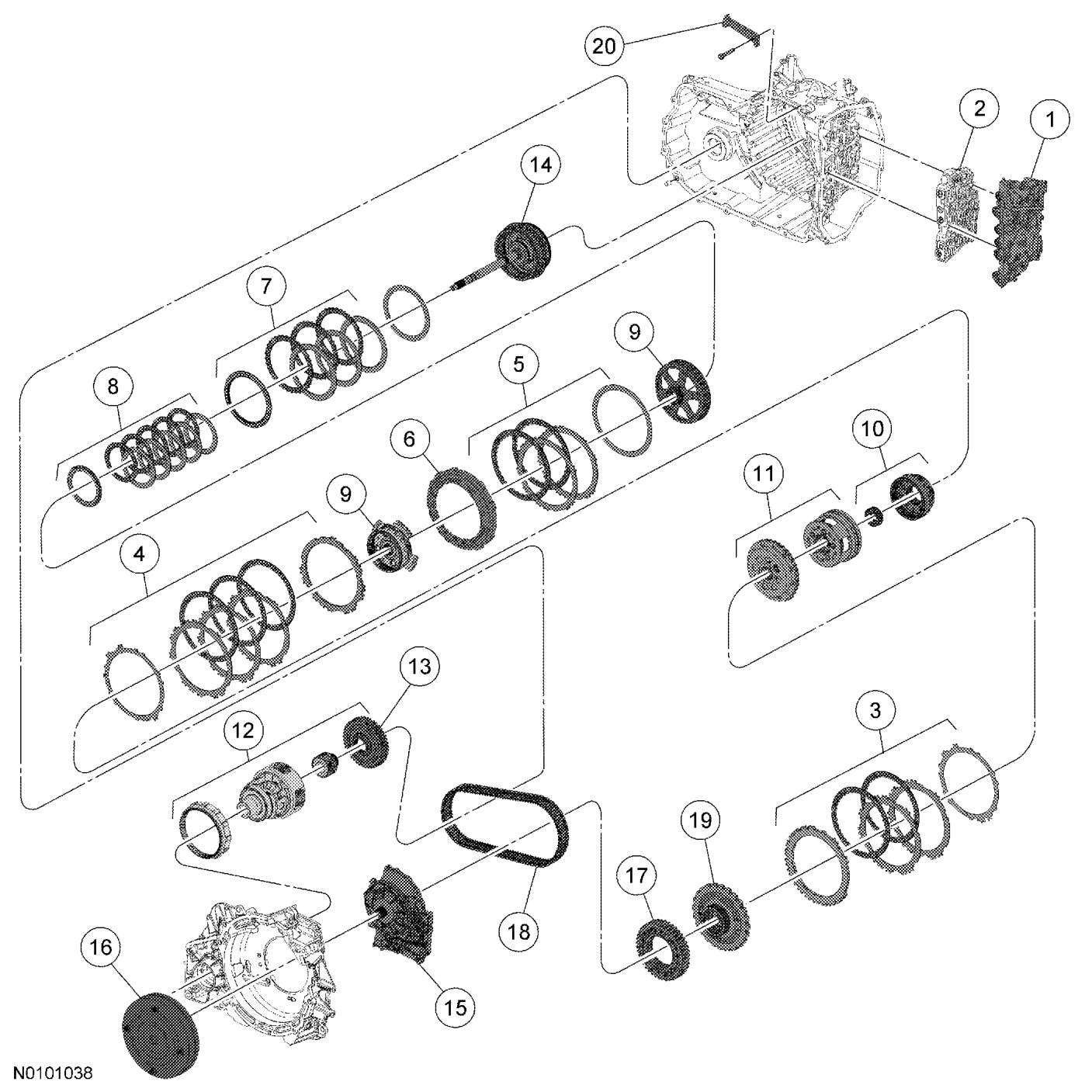

Major Component Exploded View
