Home >> Mazda >> 2011 >> Tribute 2WD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Transmission Mode Switch >> Testing and Inspection

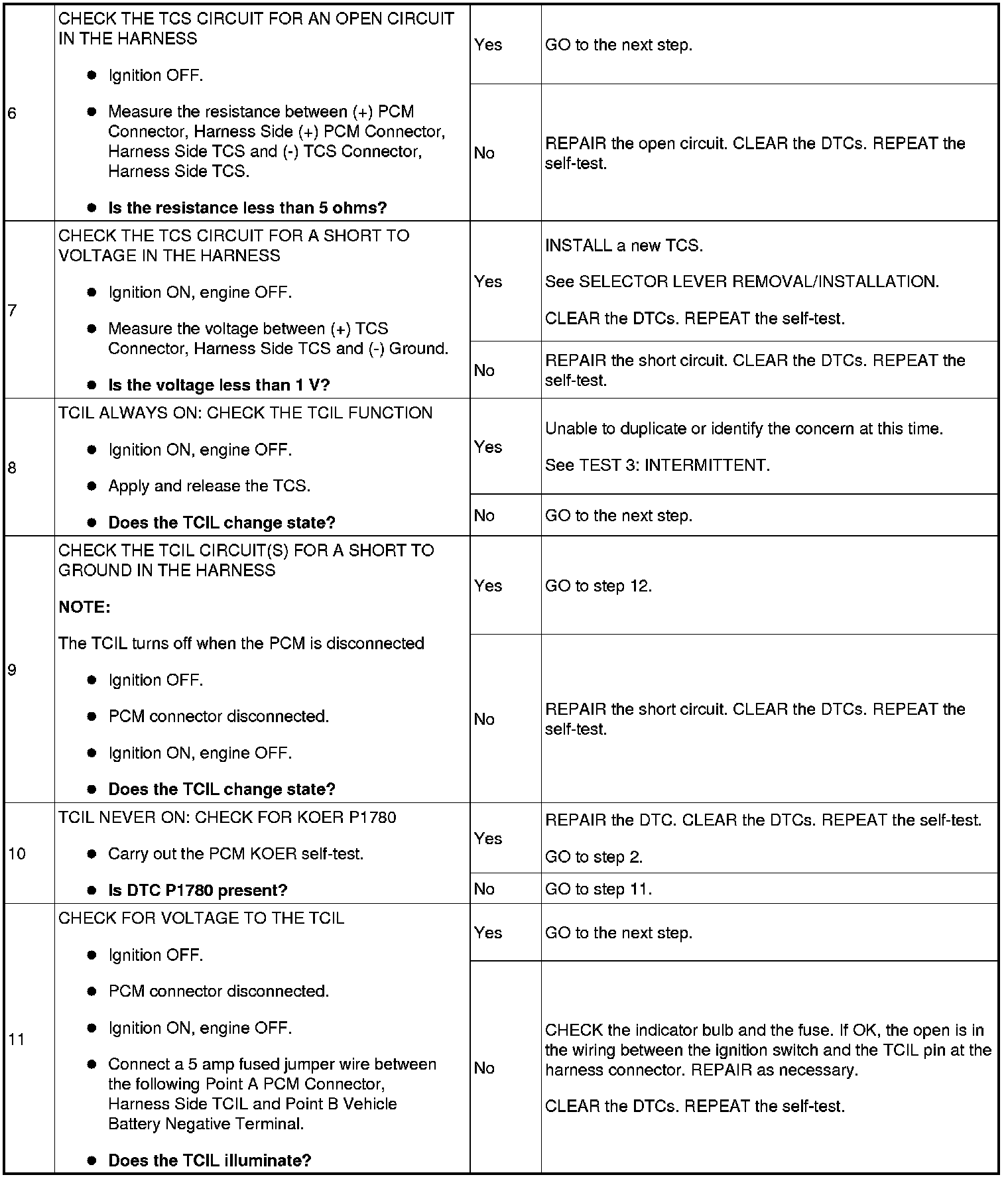

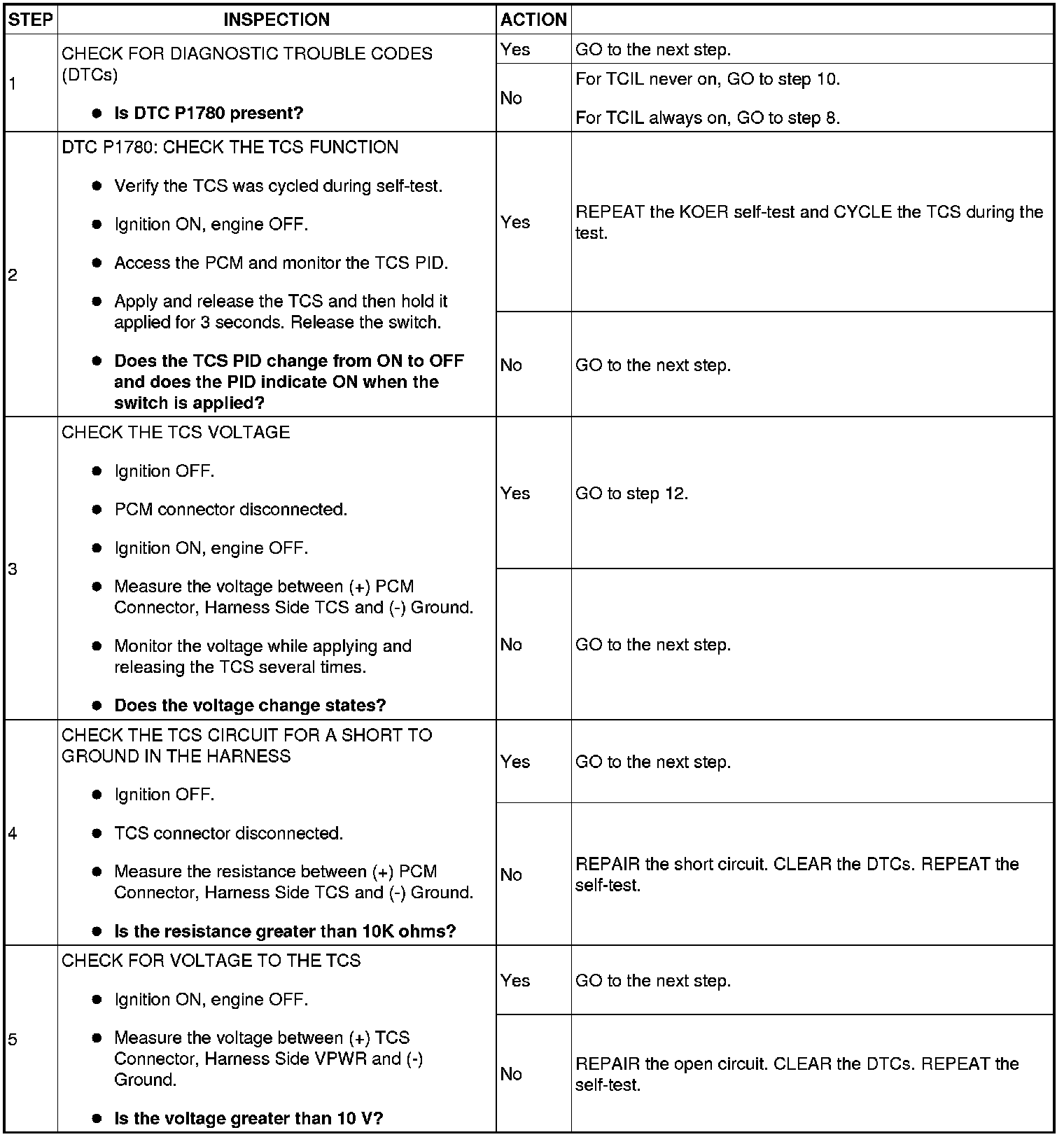

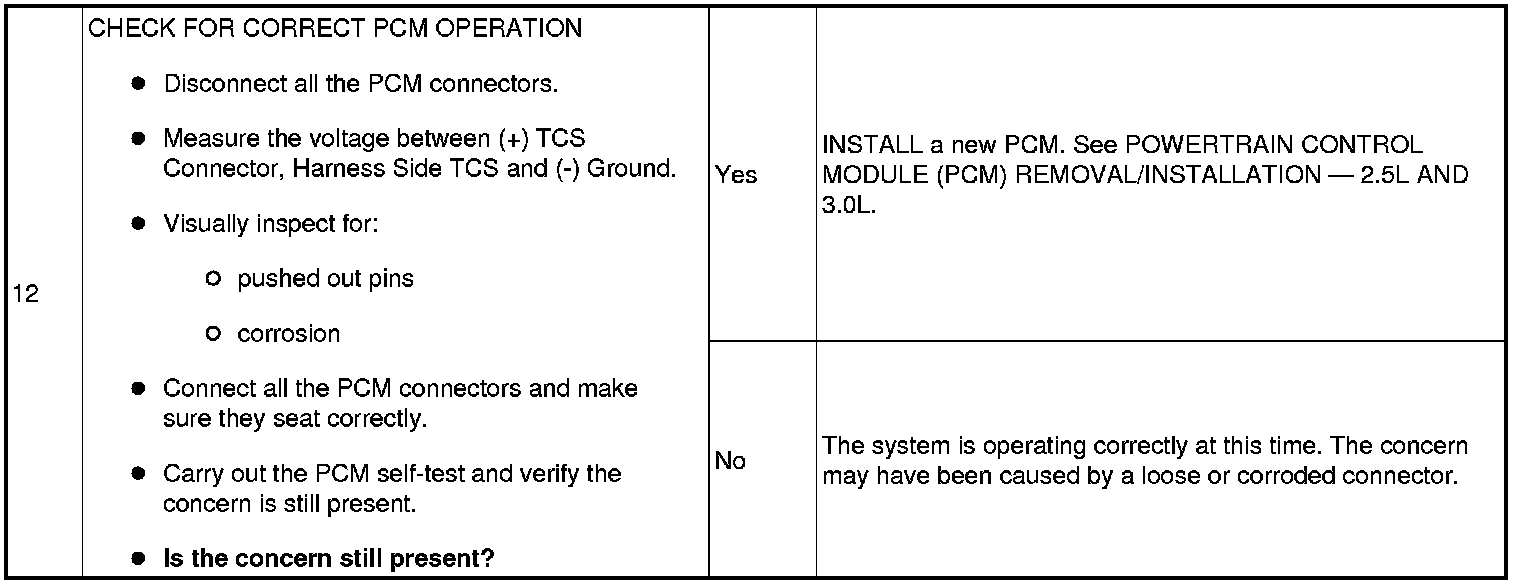

Transmission Mode Switch: Testing and Inspection

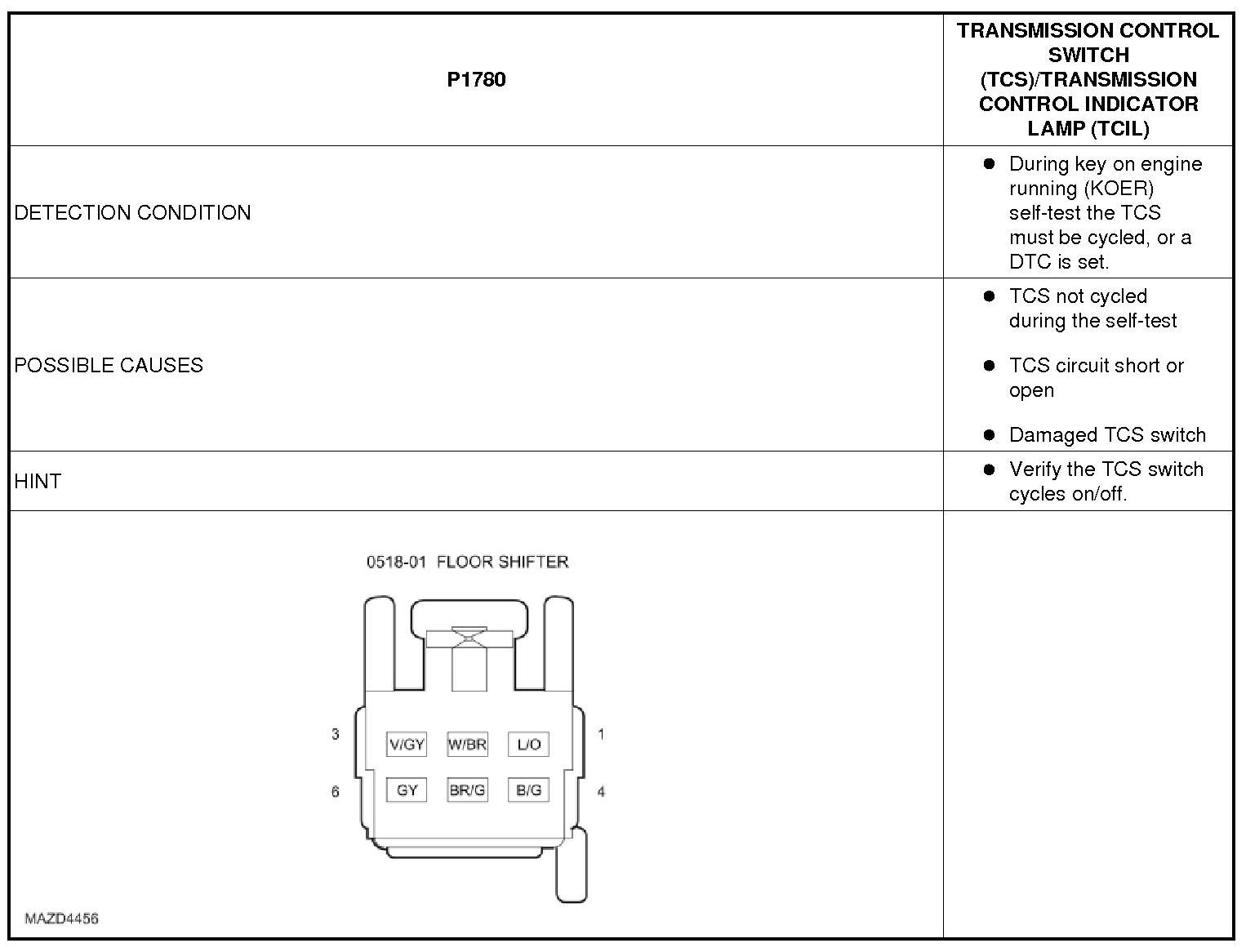

TRANSMISSION CONTROL SWITCH (TCS)/TRANSMISSION CONTROL INDICATOR LAMP (TCIL)
