Connector End Views - Wiper/Washer Systems
Connector End Views - Wiper/Washer Systems

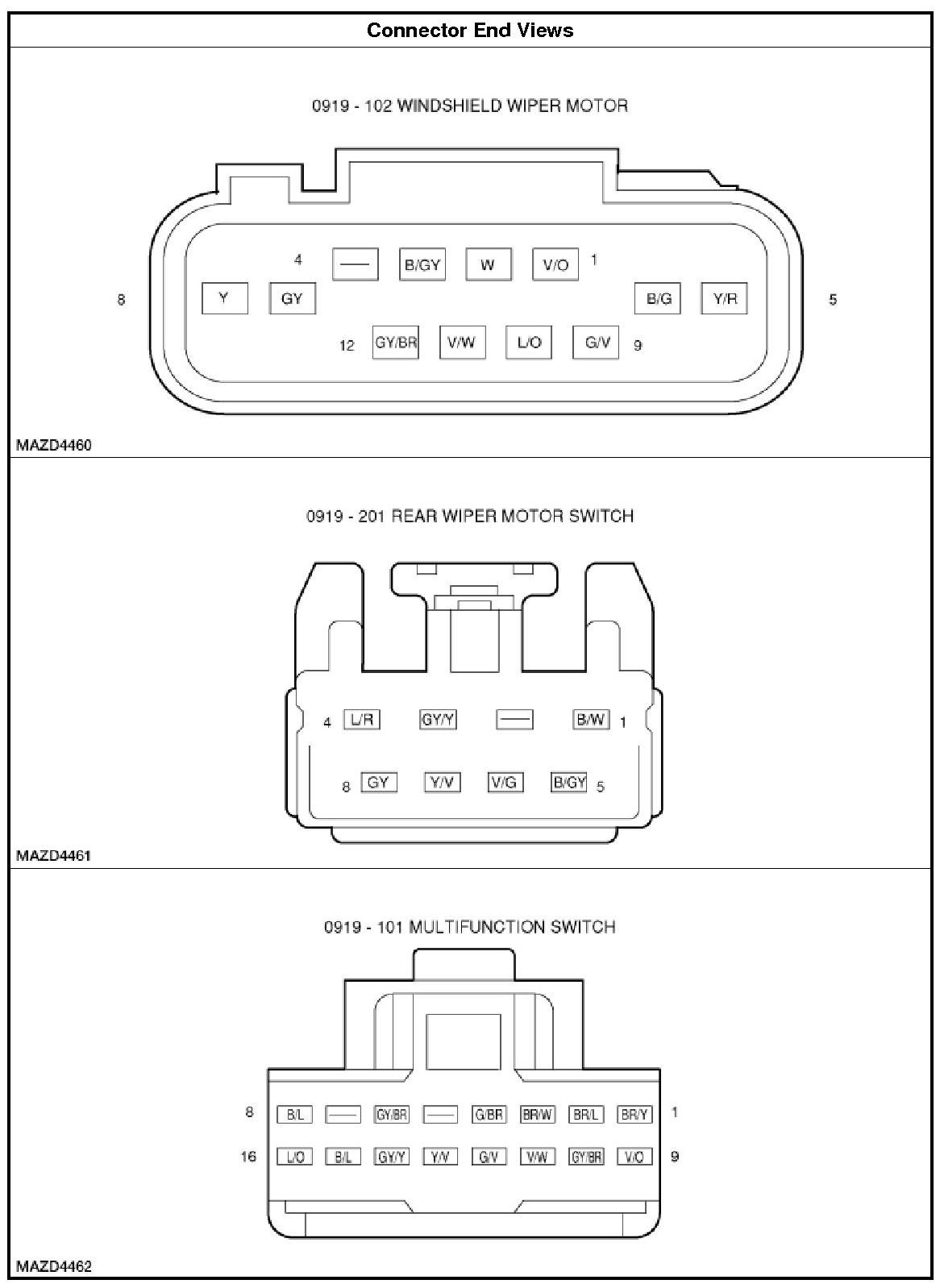

CONNECTOR END VIEWS - WIPER/WASHER SYSTEMS
