Windshield Wiper/Washer Switch Inspection

WINDSHIELD WIPER/WASHER SWITCH INSPECTION

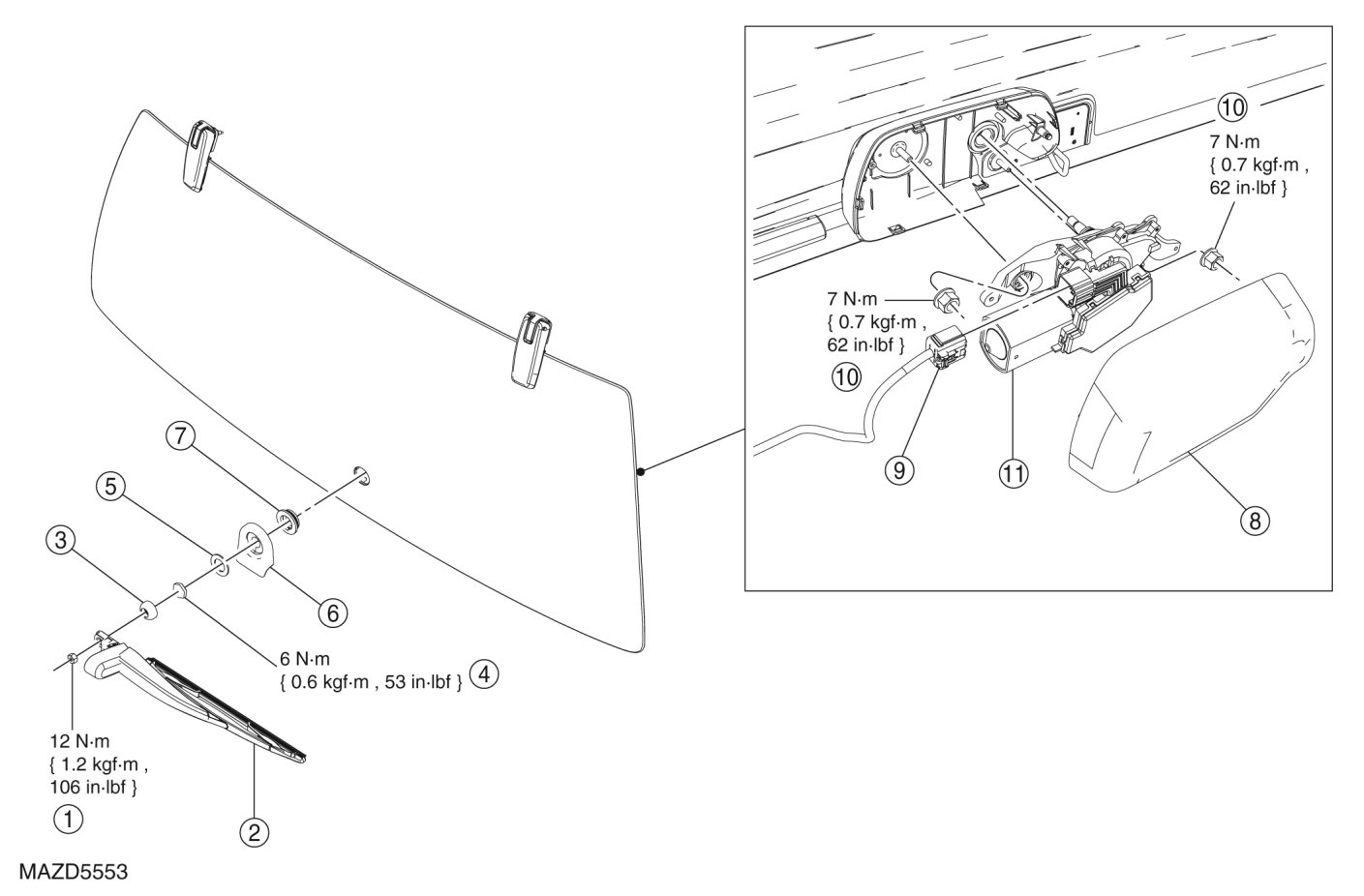

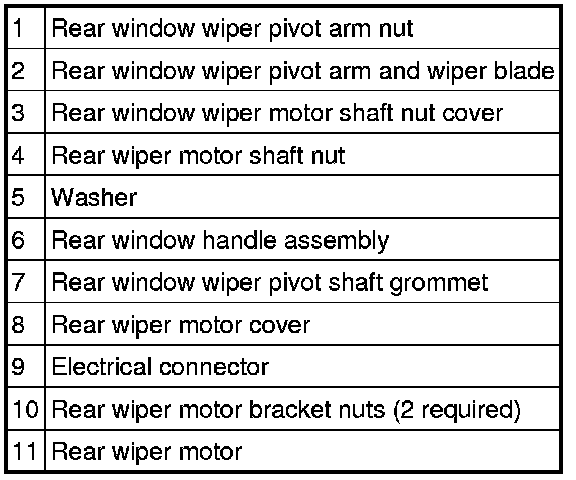

Wiper and Washer System - Exploded View, Rear










For additional information, see - Wipers And Washers - Rear, - Wiper Pivot Arm - Rear Removal/Installation, Rear Window Wiper Motor Removal/Installation or & Wiper Blade - Rear Removal/Installation.

1. Remove the windshield wiper/washer switch.

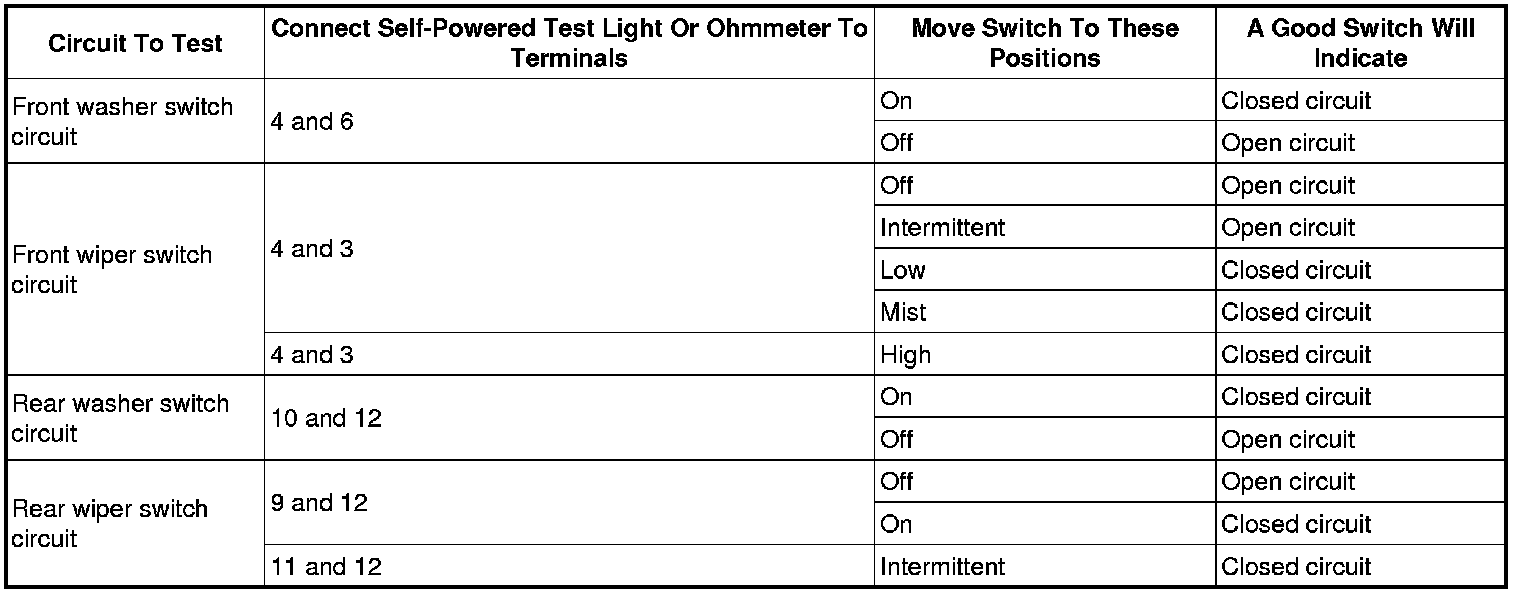

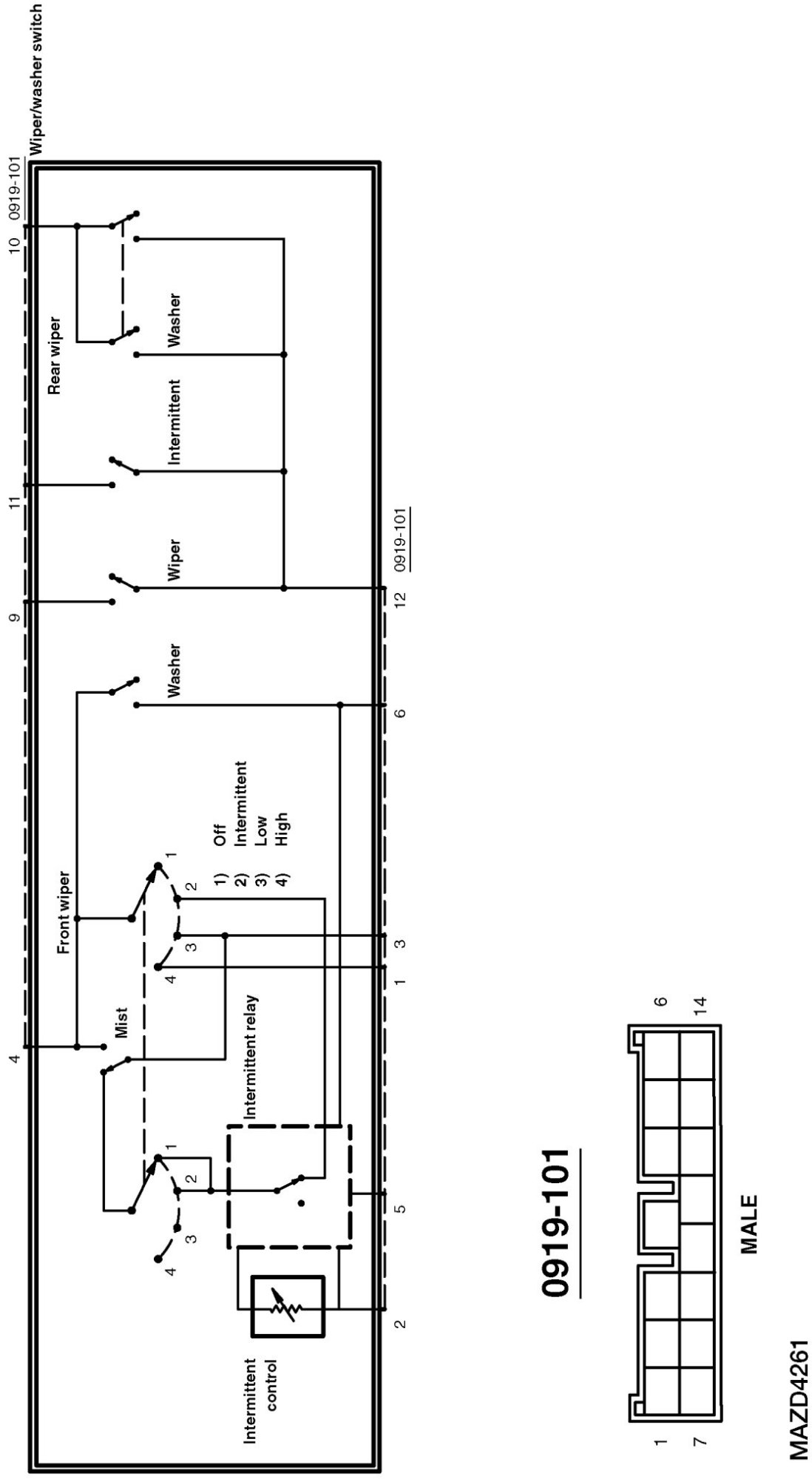

2. Inspect for continuity between the windshield wiper/washer switch terminals using an ohmmeter.





Inspection





3. If not as specified, install a new windshield wiper/washer switch.
