Electronic Throttle Actuator: Service and Repair

THROTTLE BODY REMOVAL/INSTALLATION - HYBRID









1. Remove the Air Cleaner (ACL) outlet pipe. See - Air Cleaner Outlet Pipe Removal/Installation.

2. Disconnect the electronic throttle control electrical connector.

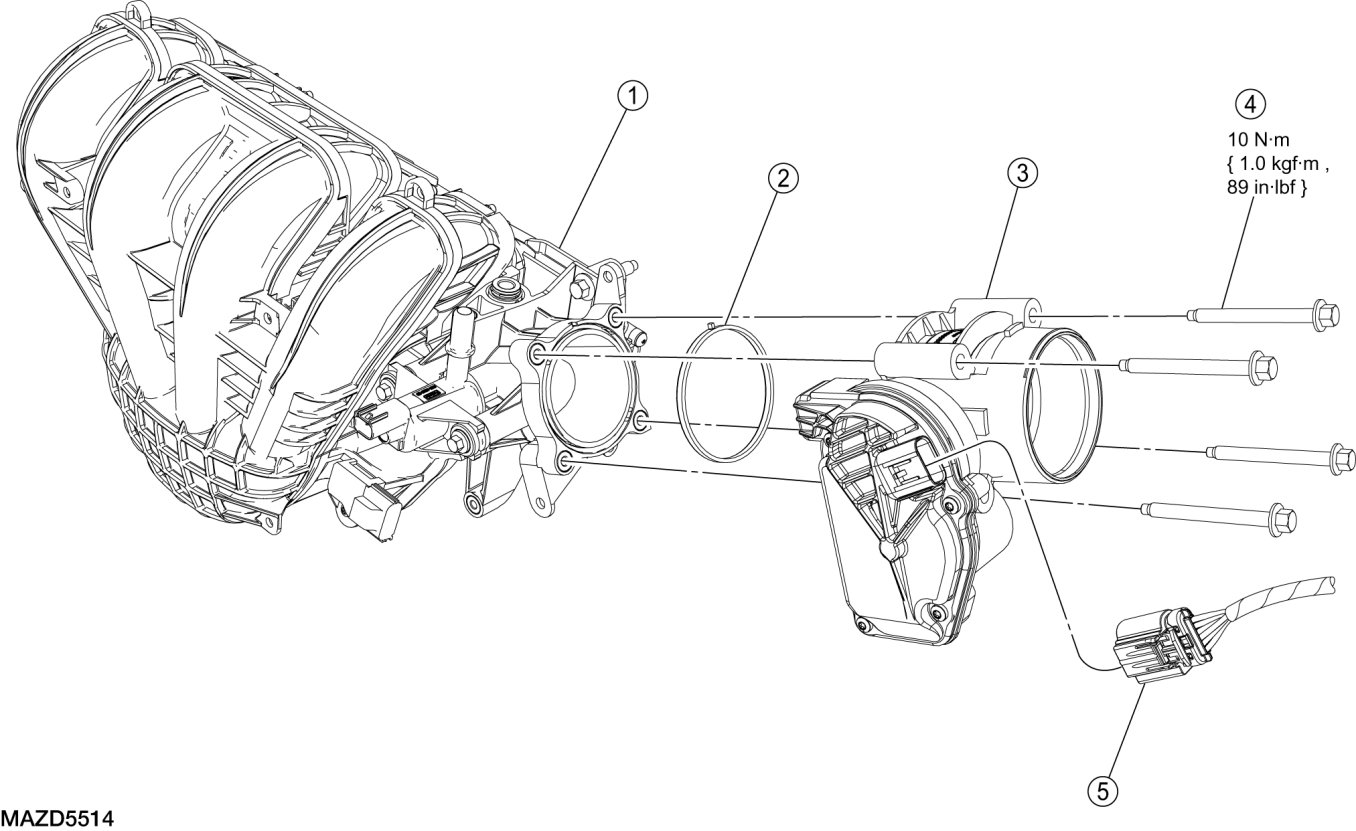

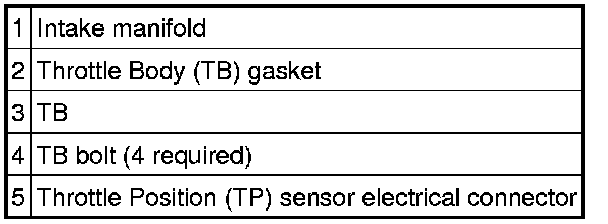

3. Remove the 4 bolts and the Throttle Body (TB).

- Discard the TB gasket.

- To install, tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.

4. To install, reverse the removal procedure.

- Install a new TB gasket.
