Electronic Throttle Actuator: Testing and Inspection

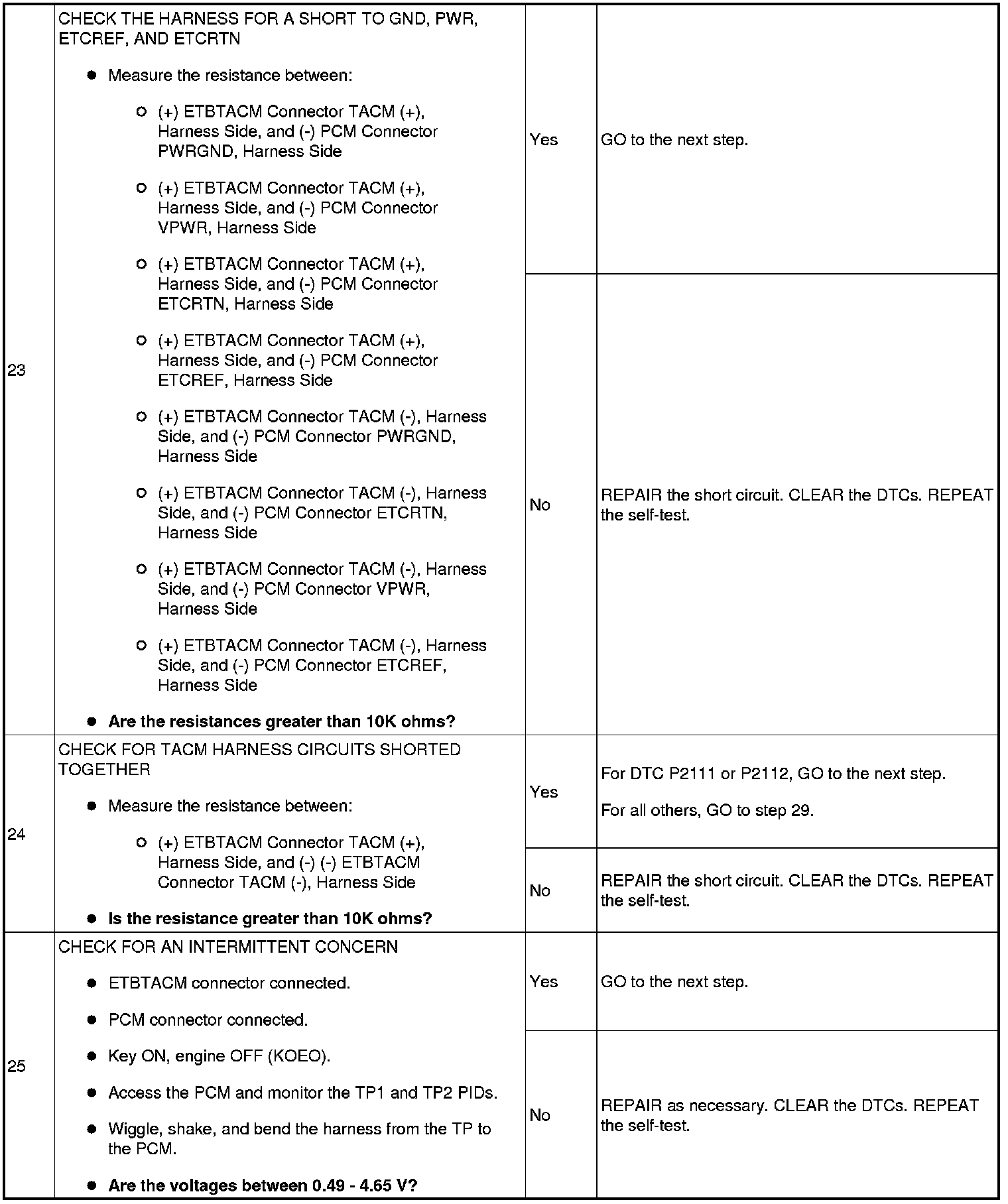

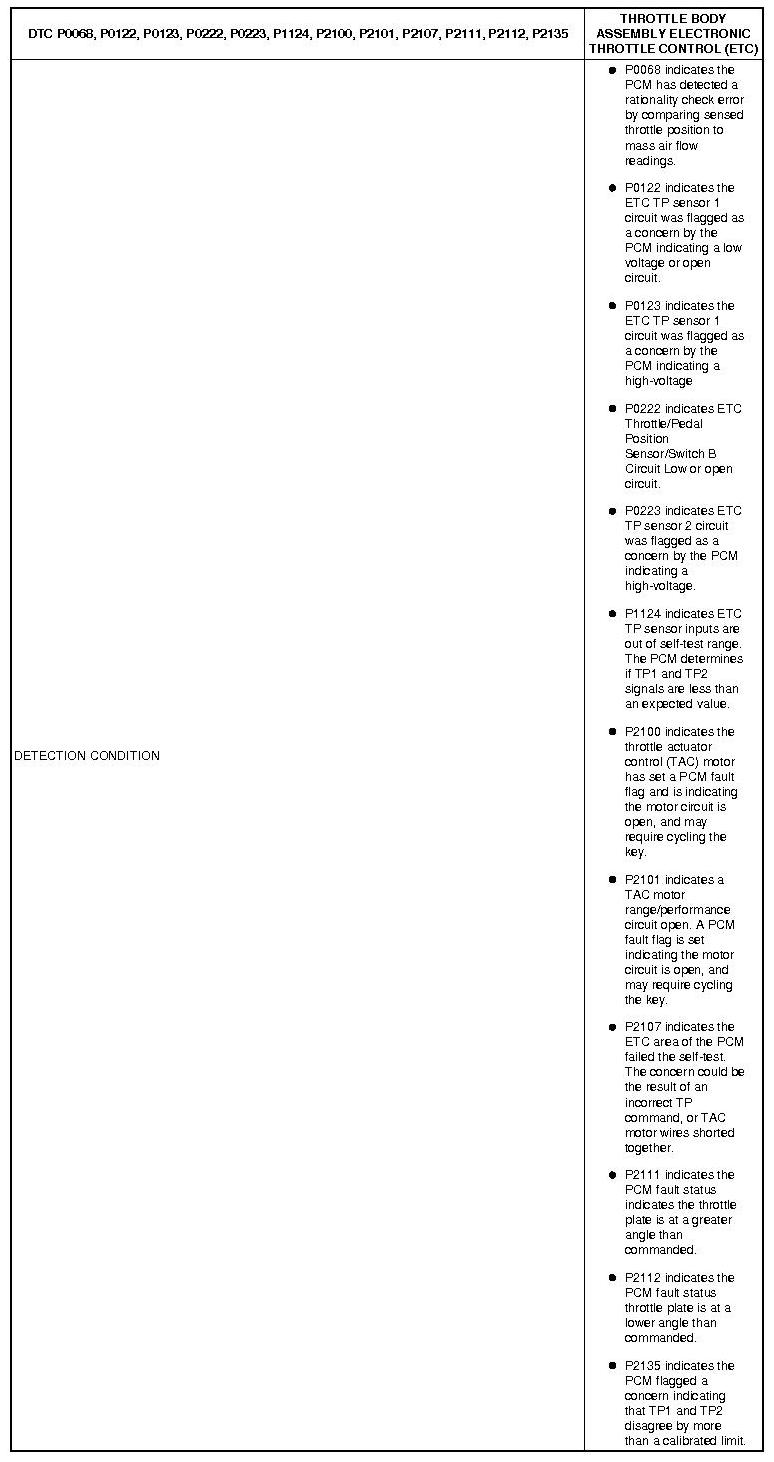

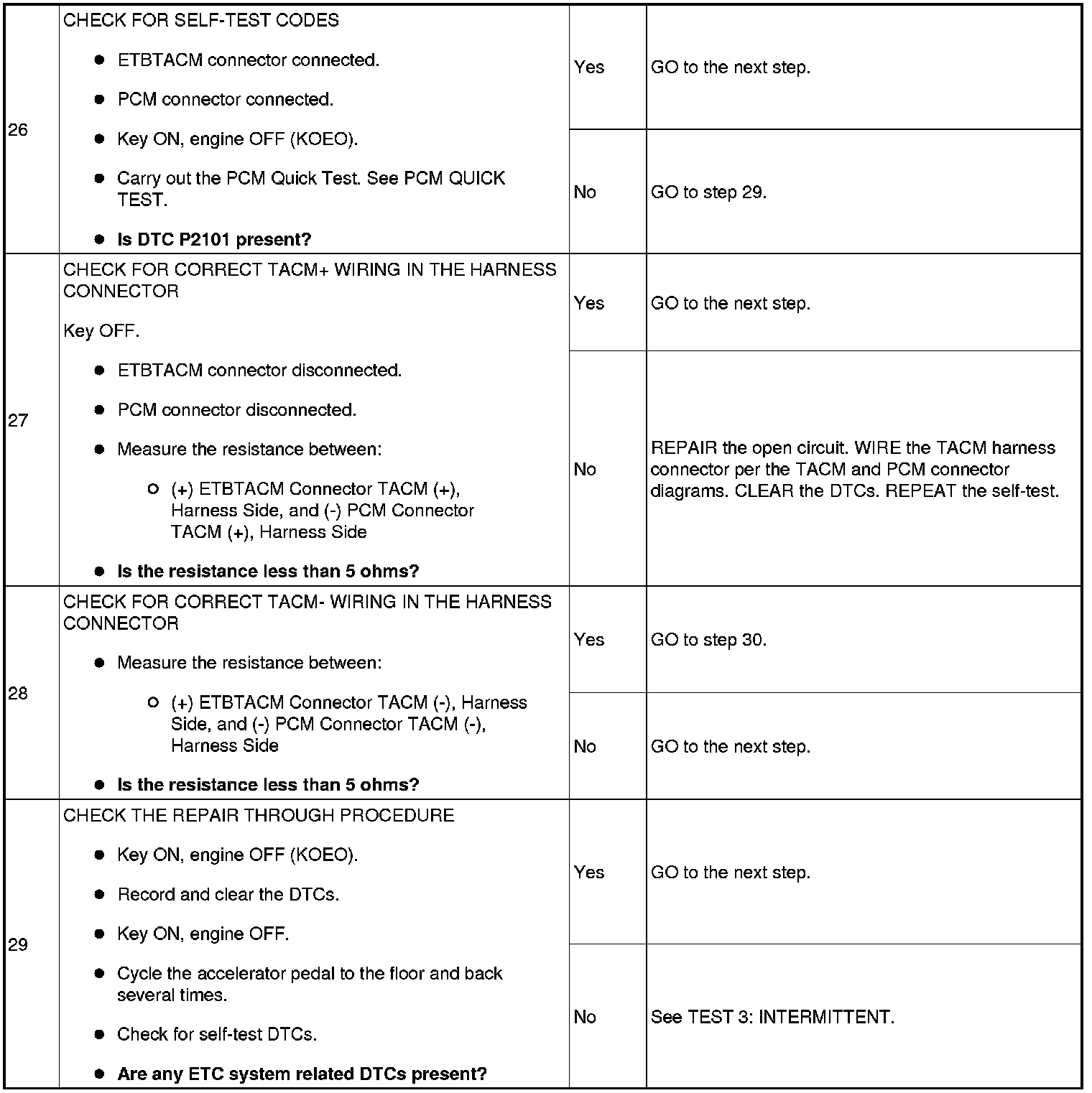

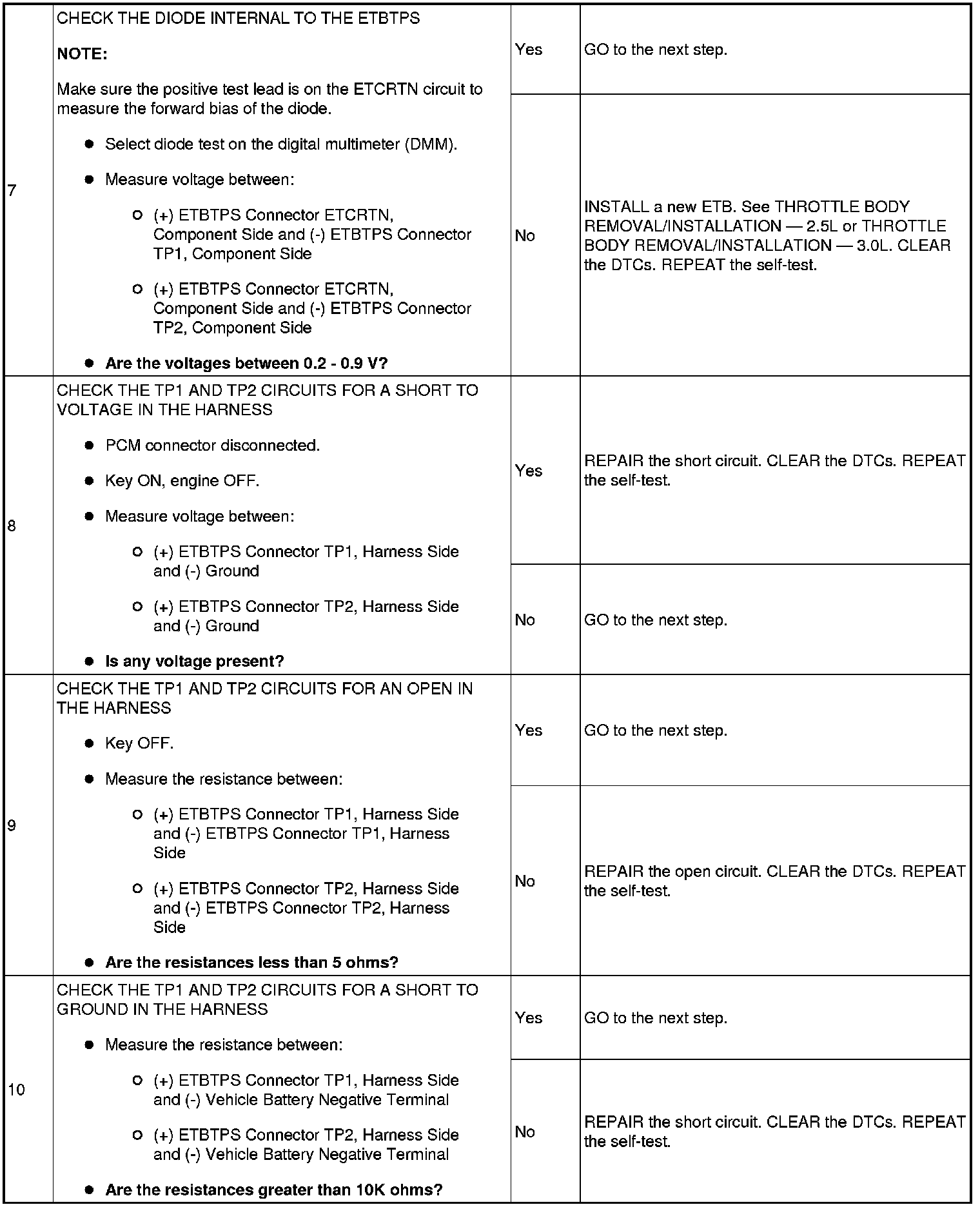

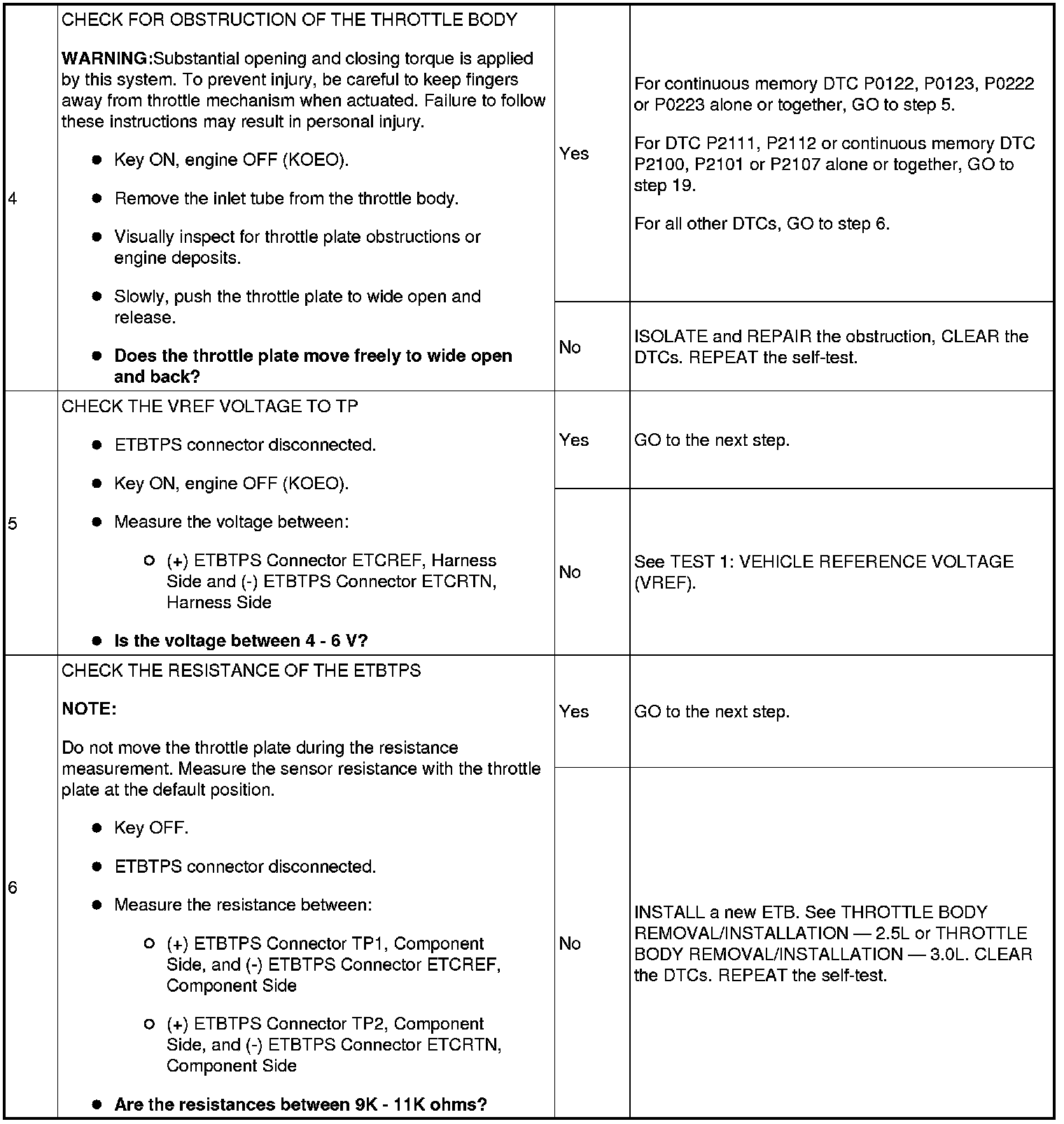

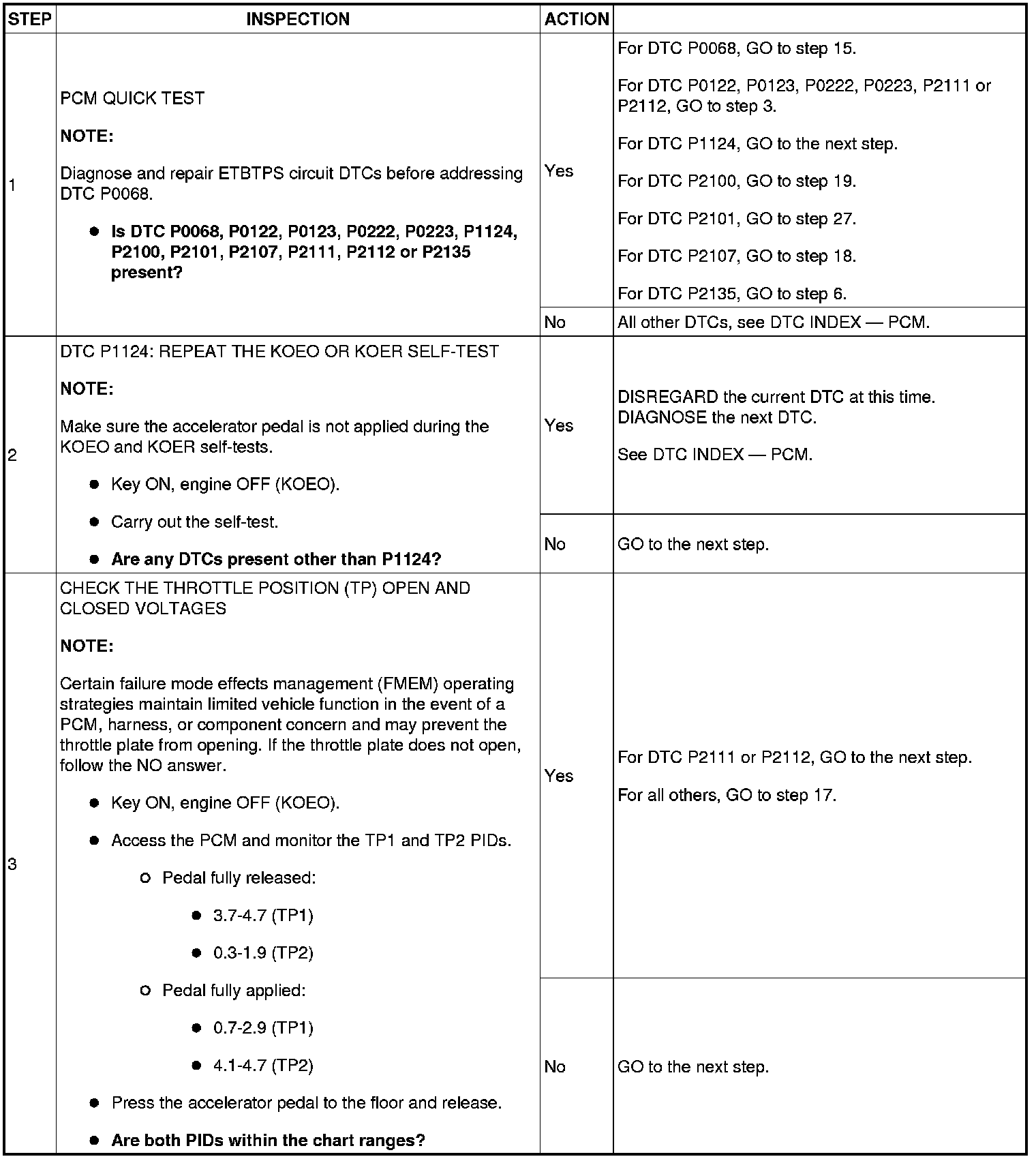

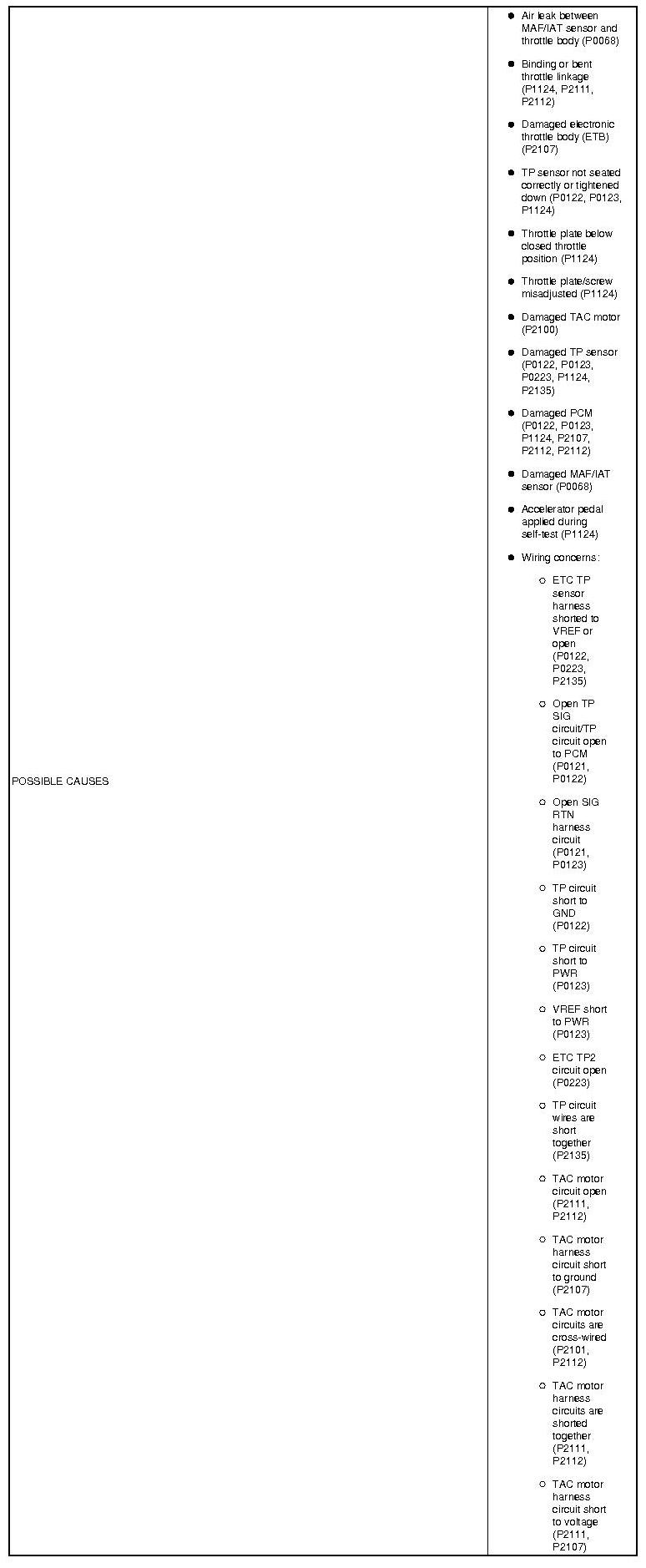

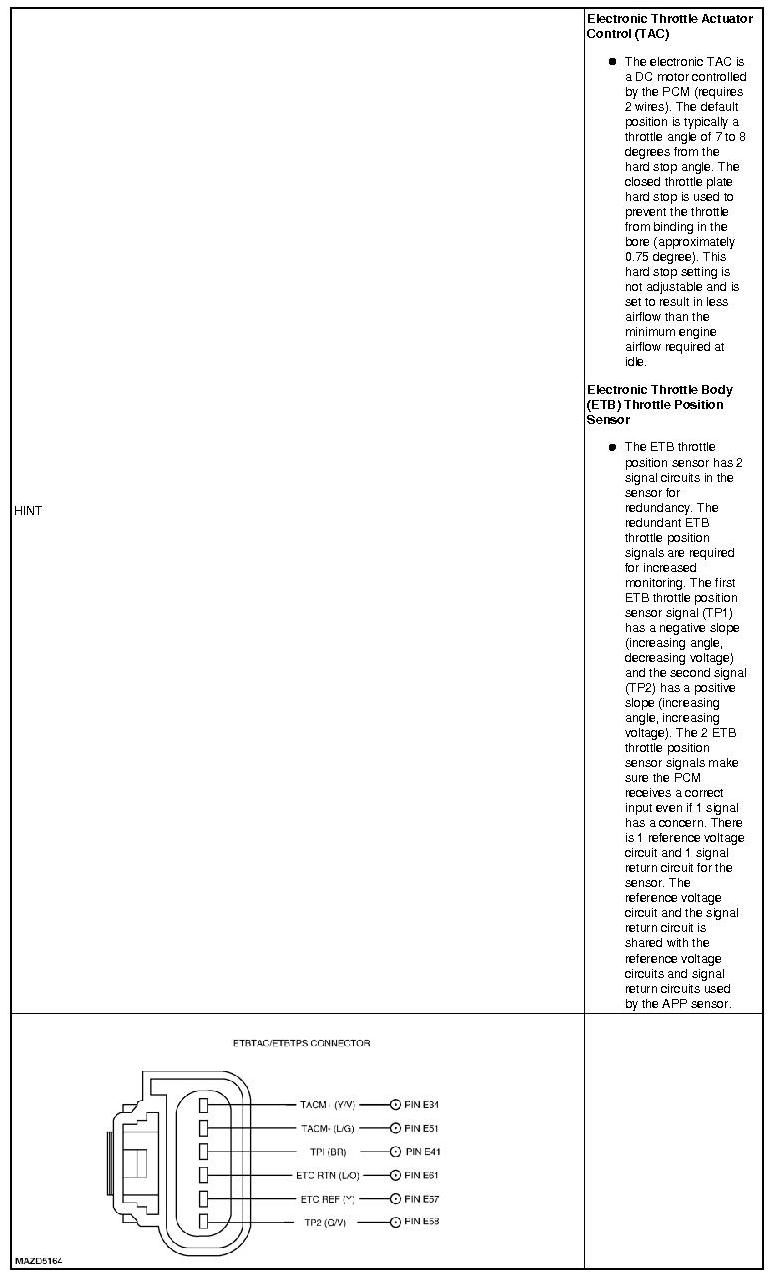

THROTTLE BODY ASSEMBLY ELECTRONIC THROTTLE CONTROL (ETC)
