Wiper and Washer Systems: Locations

WIPER AND WASHER SYSTEM - EXPLODED VIEW, FRONT

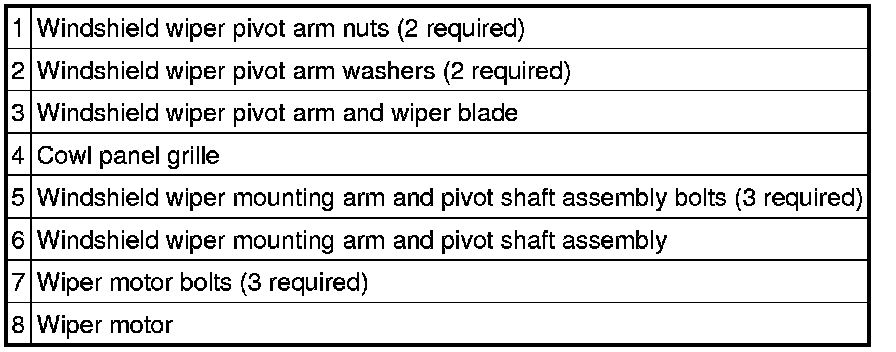

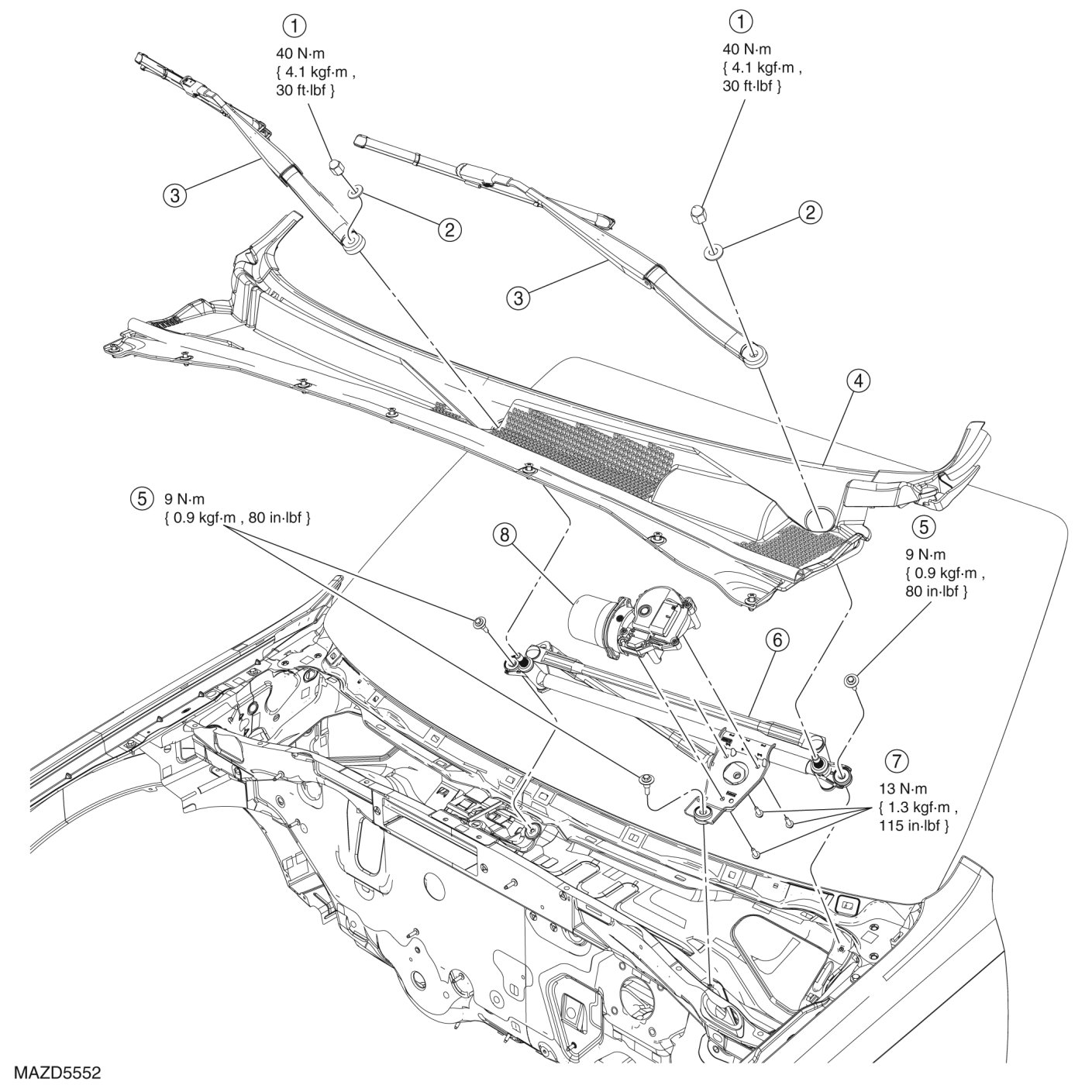

Wiper and Washer System - Exploded View, Front










1. For additional information, see Wiper Blade Removal/Installation, - Wiper Pivot Arm - Front Removal/Installation, Windshield Wiper Motor Removal/Installation or Wiper Mounting Arm And Pivot Shaft Removal/Installation.
