Steering Shaft: Testing and Inspection

STEERING SHAFT INSPECTION

1. Inspect the steering column for excessive play and damage.

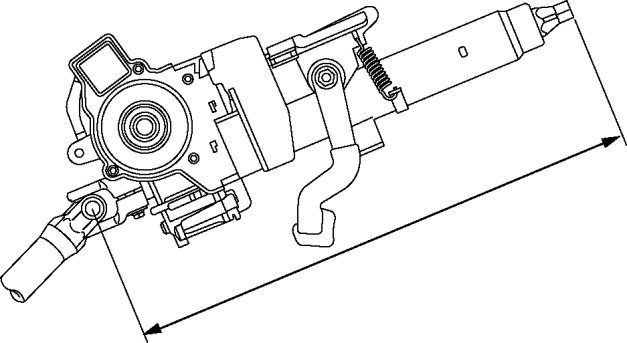

2. Verify that the dimension of the steering shaft shown in the figure is as specified.






- If not within the specification, replace the steering column component.

Steering shaft length
- 443.7-449.7 mm {17.47-17.70 in}

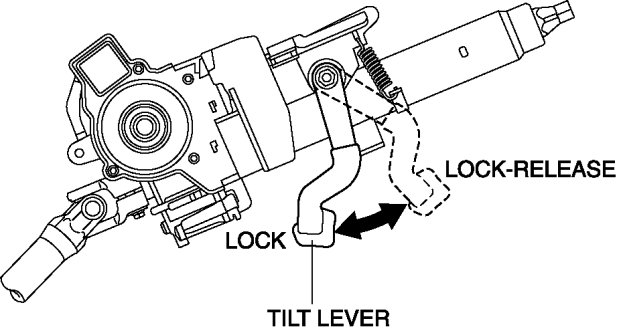

3. Inspect the tilt mechanism operation for the following:






a. The tilt lever moves smoothly from the lock to the lock-release position.

b. The steering shaft is fixed firmly when the tilt lever is locked.

- If there is any malfunction, replace the steering column.
