Seals and Gaskets: Service and Repair





OIL SEAL REPLACEMENT [FN4A-EL]

CAUTION:
- The oil seal is easily damaged by the sharp edges of the drive shaft splines. Do not let the splines contact the oil seal.

1. Drain the ATF into a separate suitable container. Automatic Transaxle Fluid (ATF) Replacement

2. Remove the drive shaft and/or joint shaft. Drive Shaft Removal/Installation Joint Shaft Removal/Installation

3. Remove the oil seal using the flathead screwdriver.

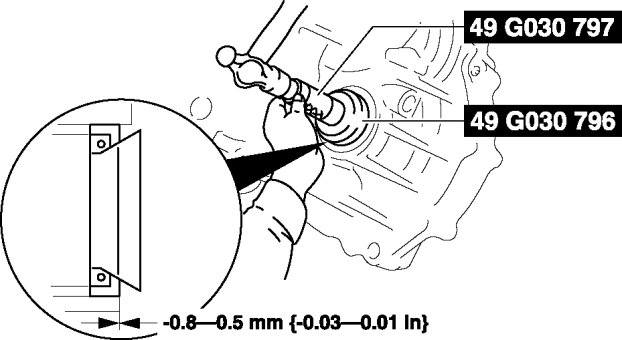

4. Using the SSTs and a hammer, tap a new oil seal in evenly until the SSTs contacts the transaxle case.






5. Coat the lip of the oil seal with ATF.

6. Install the drive shaft and/or joint shaft. Drive Shaft Removal/Installation Joint Shaft Removal/Installation

7. Add the ATF. Automatic Transaxle Fluid (ATF) Replacement

8. Perform the "Mechanical System Test". Mechanical System Test
