Fuel Pressure Sensor: Testing and Inspection





FUEL PRESSURE SENSOR INSPECTION [SKYACTIV-G 2.0]

Voltage Inspection

NOTE:
- The fuel pressure sensor cannot be removed as a single unit. When replacing the fuel pressure sensor, replace it together with the fuel distributor as a single unit.

1. Connect the M-MDS to the DLC-2.






2. Switch the ignition to ON.

3. Verify that the fuel pressure sensor output voltage (PID: FUEL_PRES) is within the specification. On-Board Diagnostic Test Component Tests and General Diagnostics

- If not as specified, replace the fuel distributor. Service and Repair

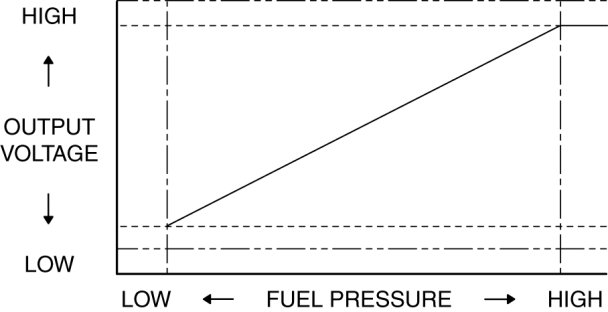

Specification
