Rear Planetary Gear Assembly

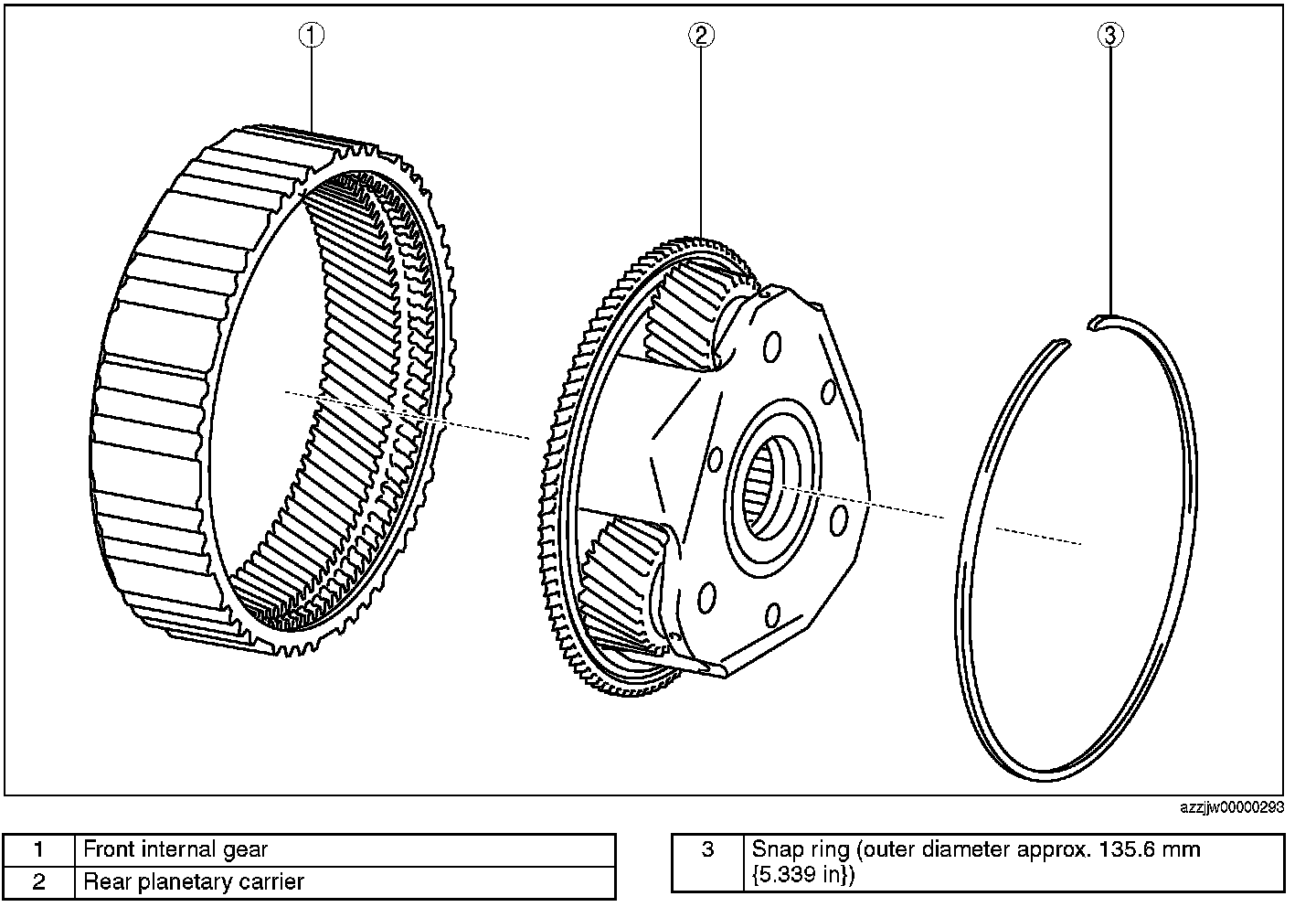

REAR PLANETARY GEAR ASSEMBLYStructural ViewAssembly Procedure 1.
Assemble the rear planetary carrier.
2.
Assemble the snap ring.
CAUTION: After assembling the snap ring, verify that the snap ring is securely inserted into the bottom of the snap ring groove. NOTE: Snap ring size: Outer diameter approx. 135.6 mm {5.339 in}
