Reduction Planetary Gear Assembly

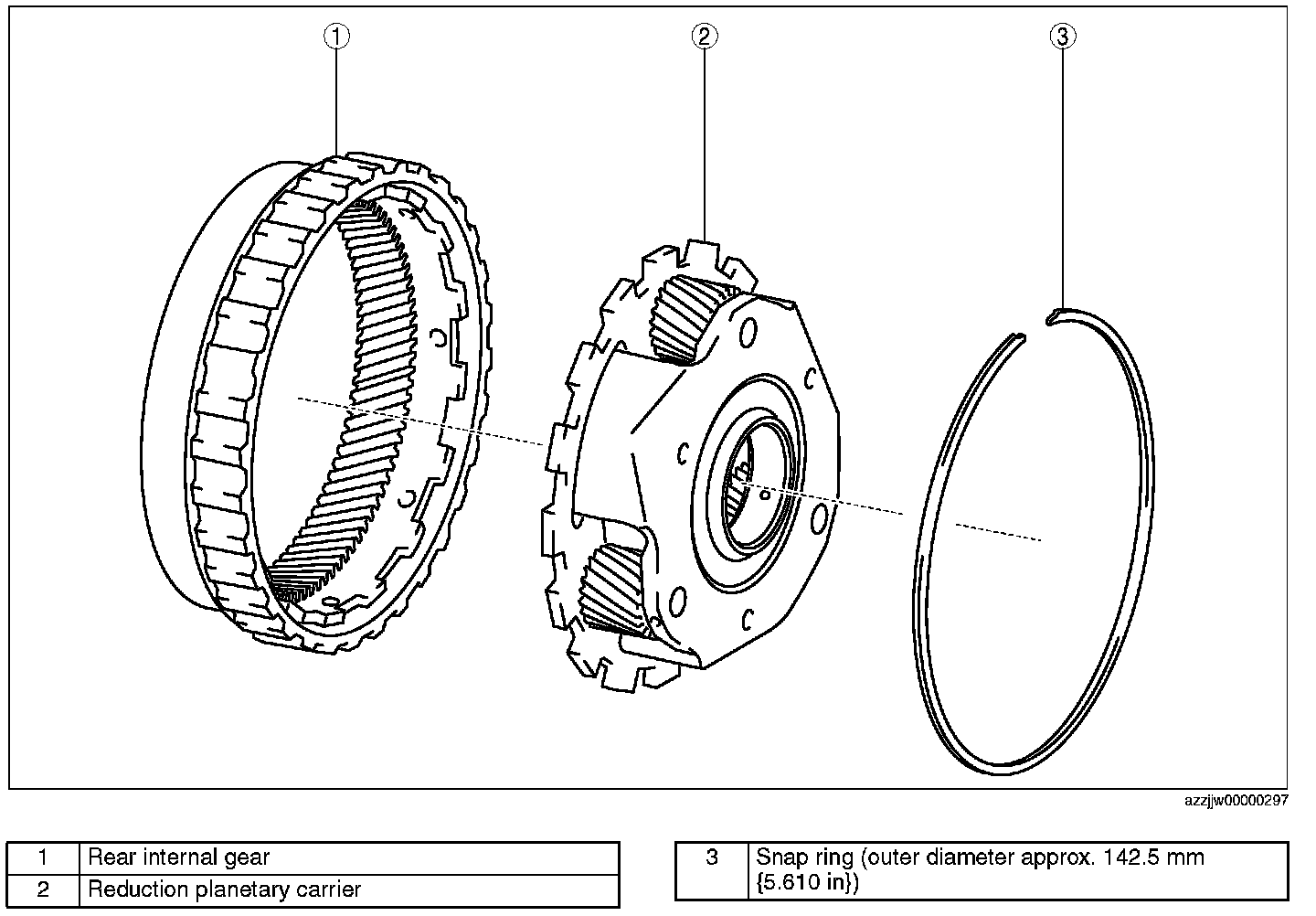

REDUCTION PLANETARY GEAR ASSEMBLYStructural ViewAssembly Procedure 1.
Assemble the reduction planetary carrier.
2.
Assemble the snap ring.
CAUTION: After assembling the snap ring, verify that the snap ring is securely inserted into the bottom of the snap ring groove. NOTE: Snap ring size: Outer diameter approx. 142.5 mm {5.610 in}
