Child Seat Tether Attachment: Service and Repair

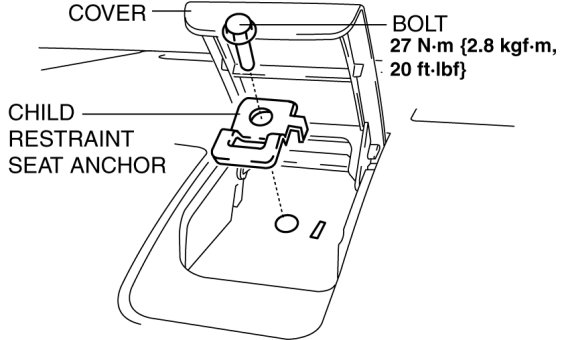

CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION4SD 1.
Remove the cover.
2.
Remove the bolt and child-restraint seat anchor.
3.
Install in the reverse order of removal.
5HB 1.
Remove the trunk end trim.
Trunk End Trim Removal/Installation 2.
Remove the bolt and child-restraint seat anchor.
3.
Install in the reverse order of removal.
