Rear Washer Nozzle Removal/Installation





REAR WASHER NOZZLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Liftgate upper trim

b. Rear spoiler Service and Repair

c. High-mount brake light Removal and Replacement

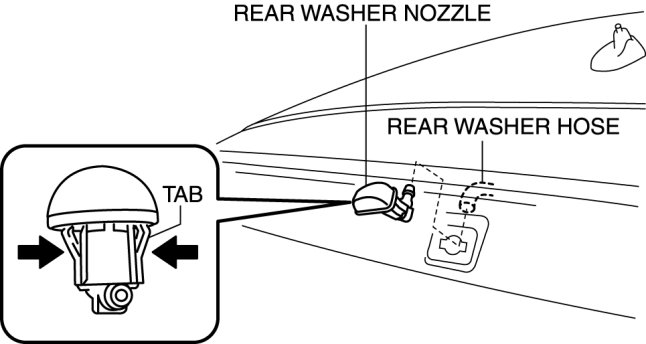

3. Disconnect the rear washer hose.

4. Press the tabs and remove the rear washer nozzle.






5. Install in the reverse order of removal.

6. Adjust the rear washer nozzle. Adjustments
