Immobilizer System - DTC Table

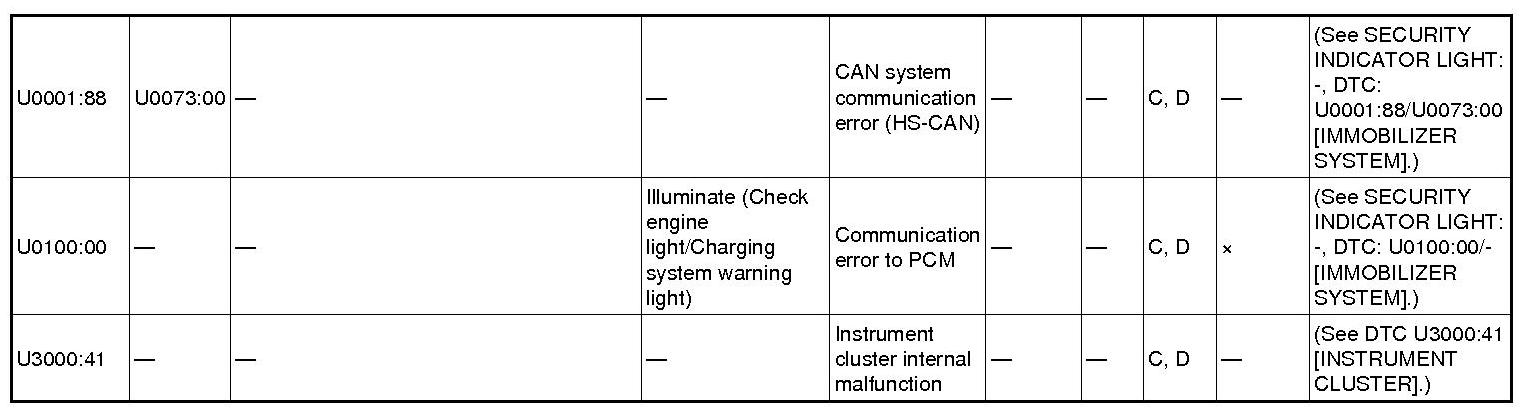

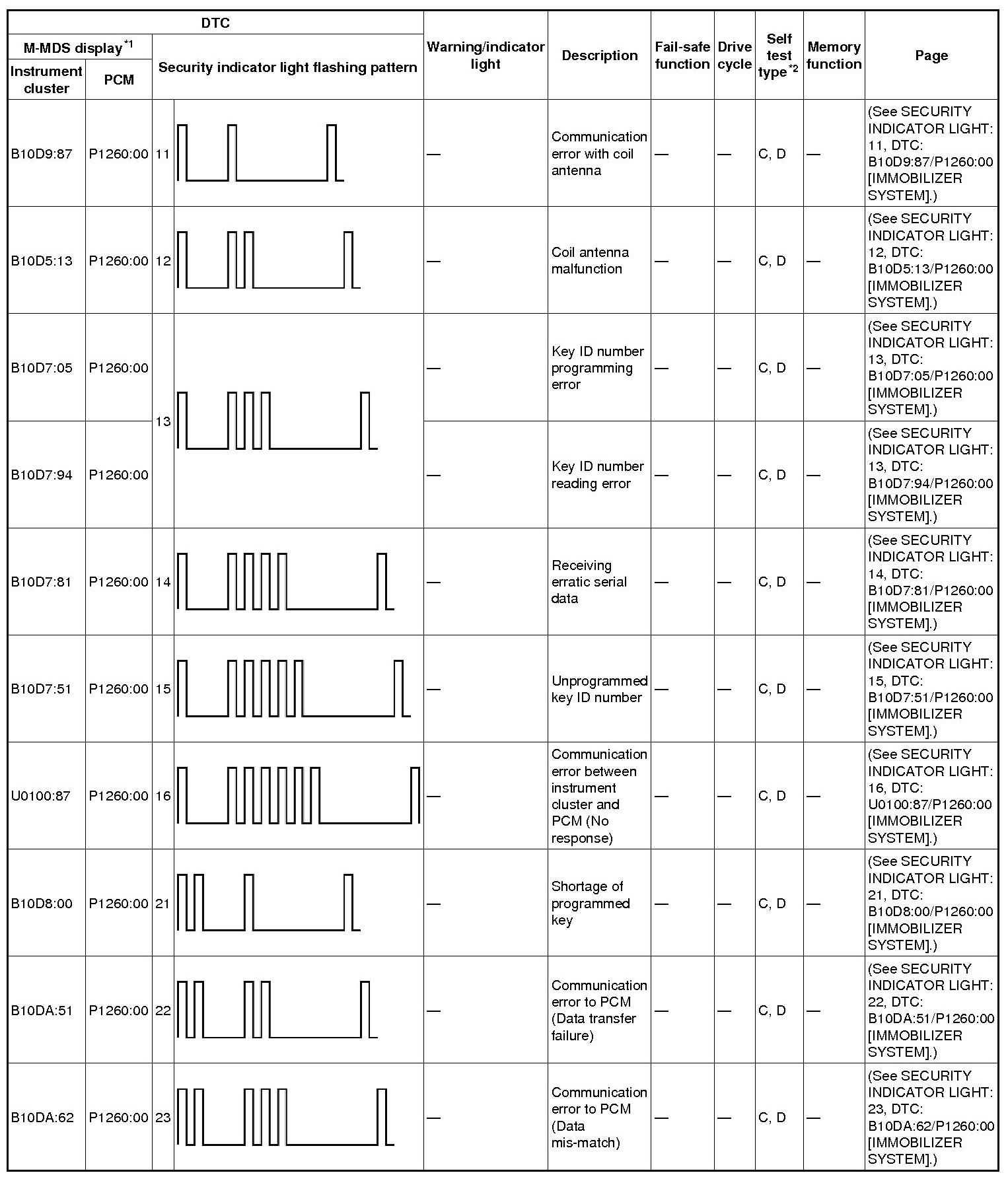

DTC TABLE [IMMOBILIZER SYSTEM]

NOTE:
- The security indicator light flashes or illuminates under the following conditions when the ignition is off or ACC.

- There is a malfunction:

- DTC 16 or below: Flashes for approx. 1 min and the DTC flash pattern indicated in the table below repeats 10 times.
- DTC 21 or higher: Illuminates for approx. 1 min and the DTC flash pattern indicated in the table below repeats 10 times.
- If more than one DTC is detected, only the DTC with the lowest number is displayed.

- There is no malfunction:

- The security indicator light illuminates for approx. 3 s and then turns off.

x: Applicable-: Not applicable









*1
The letters at the beginning of each DTC are only displayed when using the M-MDS, and refer to the following: B= Body system, P= Powertrain system, U= Network communication system.
*2
C: CMDTC self test, D: ODDTC self test
