Multiplex Communication System - DTC Table

DTC TABLE [MULTIPLEX COMMUNICATION SYSTEM]

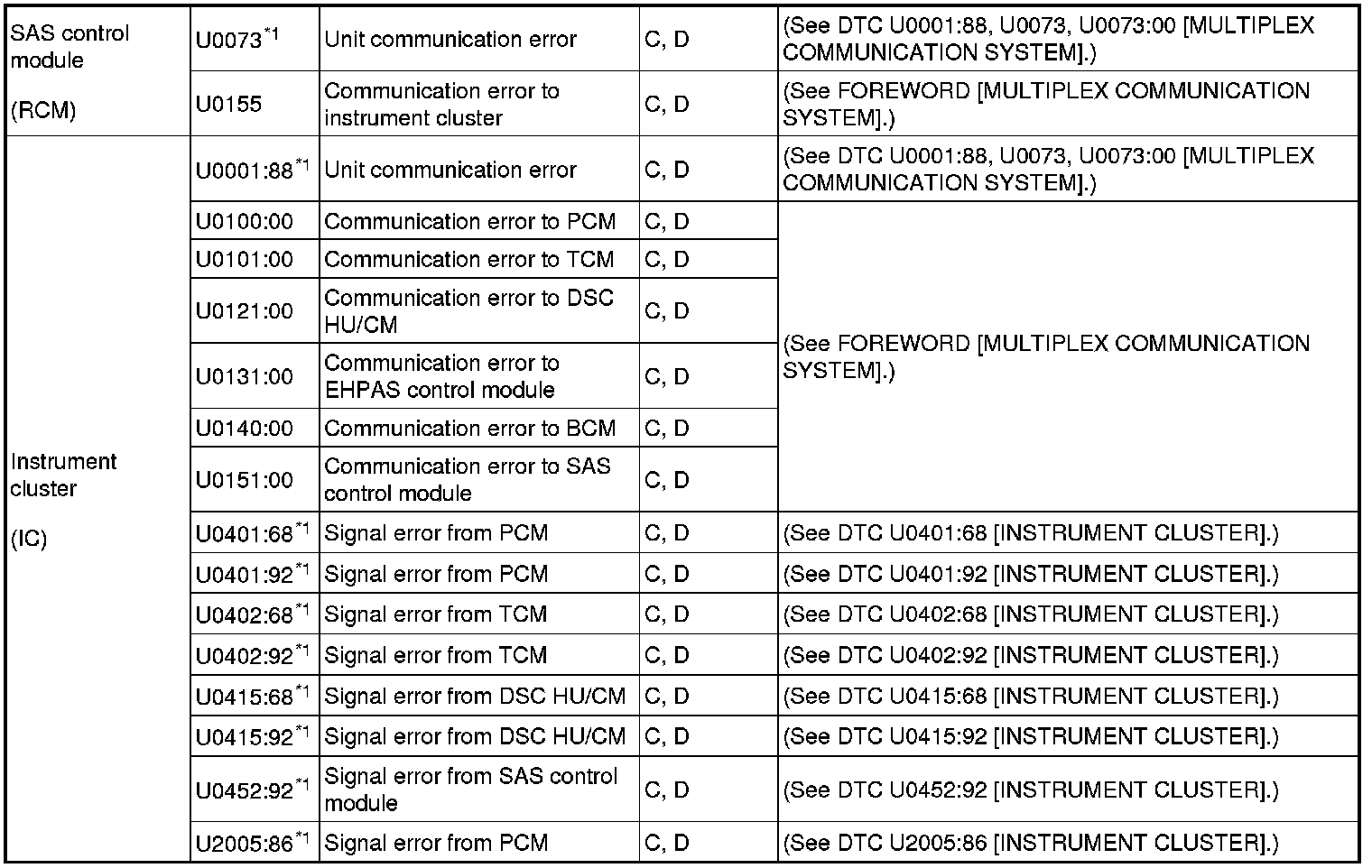

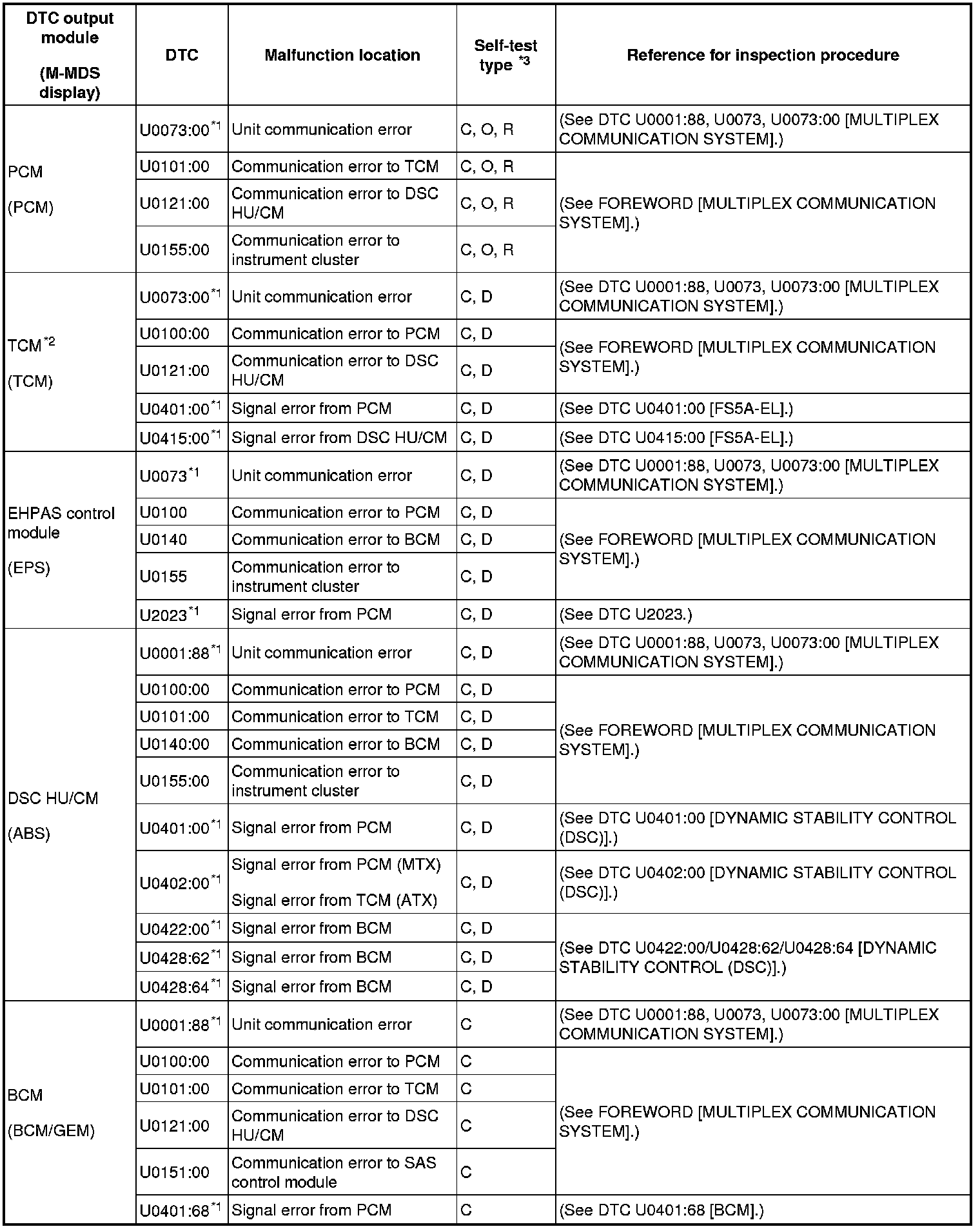

HS-CAN

*1
If only the target DTCs are displayed, perform the corresponding DTC inspection.
*2
ATX
*3
C:CMDTC self-test, D:ODDTC self-test, O:KOEO self-test, R:KOER self-test

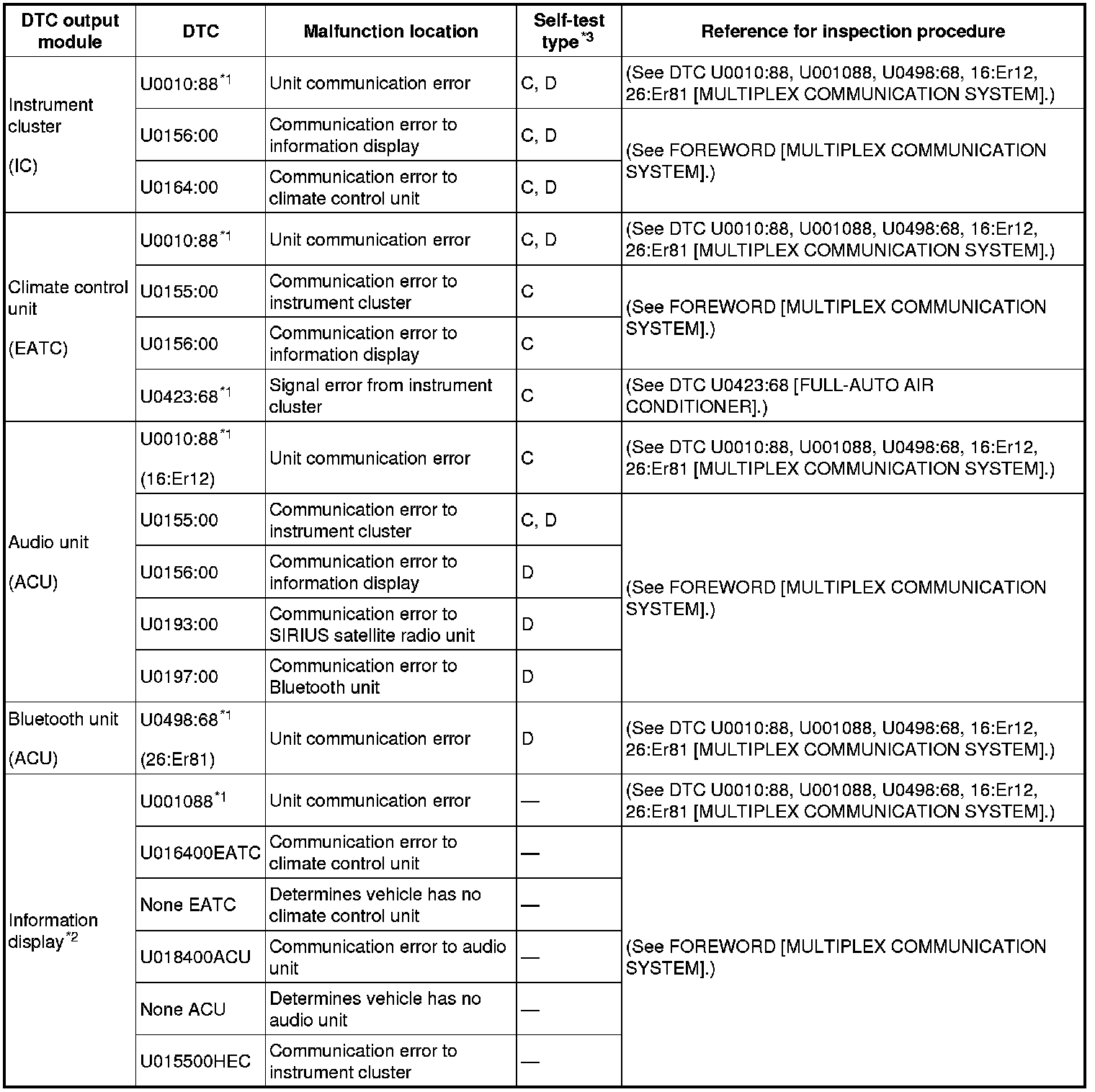

MS-CAN

*1
If only the target DTCs are displayed, perform the corresponding DTC inspection.
*2
Verify the check code using the input/output check mode.
*3
C:CMDTC self test, D:ODDTC self test
