No. 1 Security Light Display Is Not Normal

NO.1 SECURITY LIGHT DISPLAY IS NOT NORMAL [IMMOBILIZER SYSTEM]





NOTE:

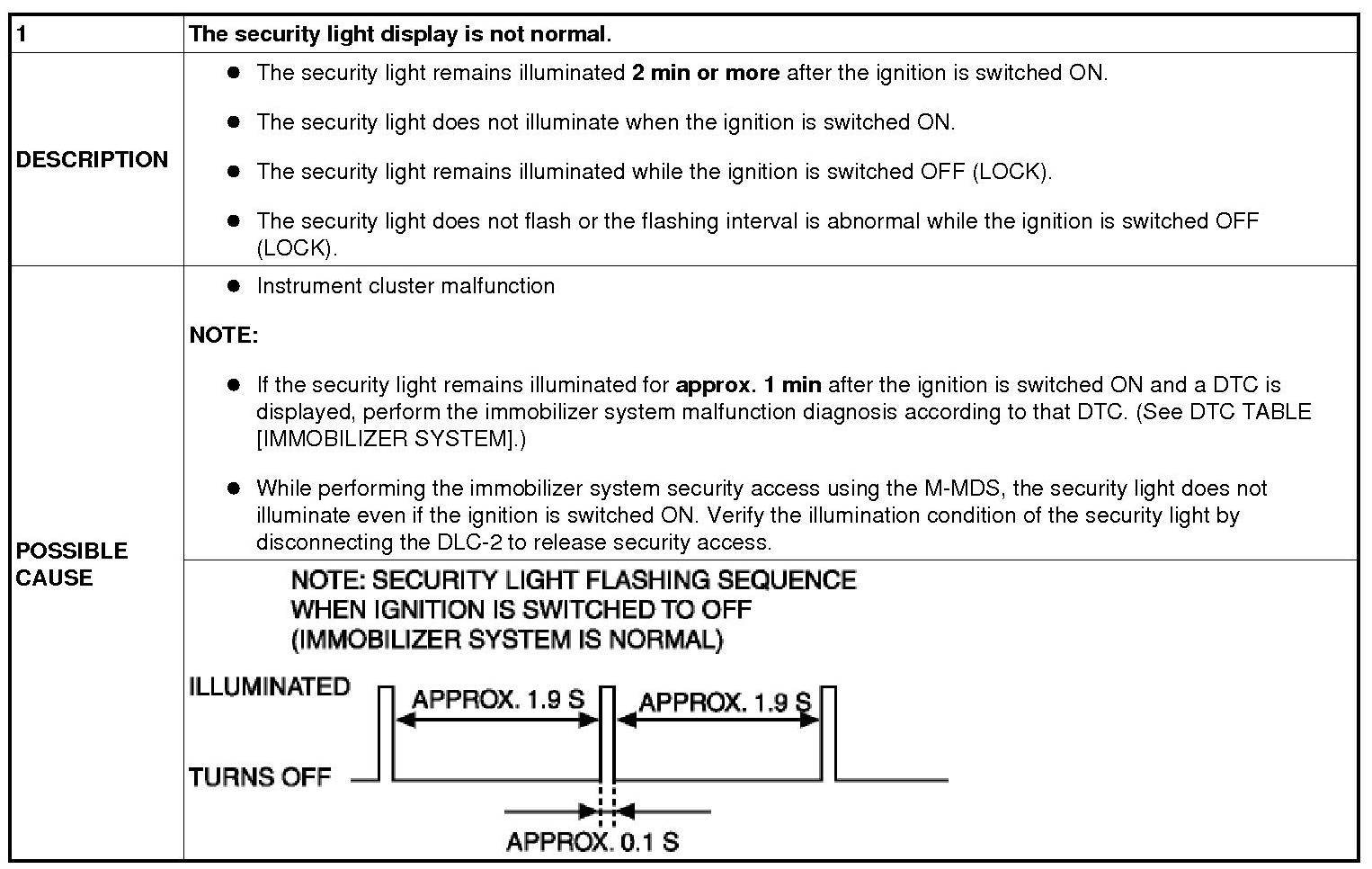

- Normal operation of the security light is as follows. The light starts flashing every 2 s when the ignition is switched from ON to ACC and the immobilizer system is armed. The light stops flashing when the ignition is switched ON with the correct ignition key. At this time, the immobilizer system is disarmed and the security light illuminates for about 3 s and then goes out.

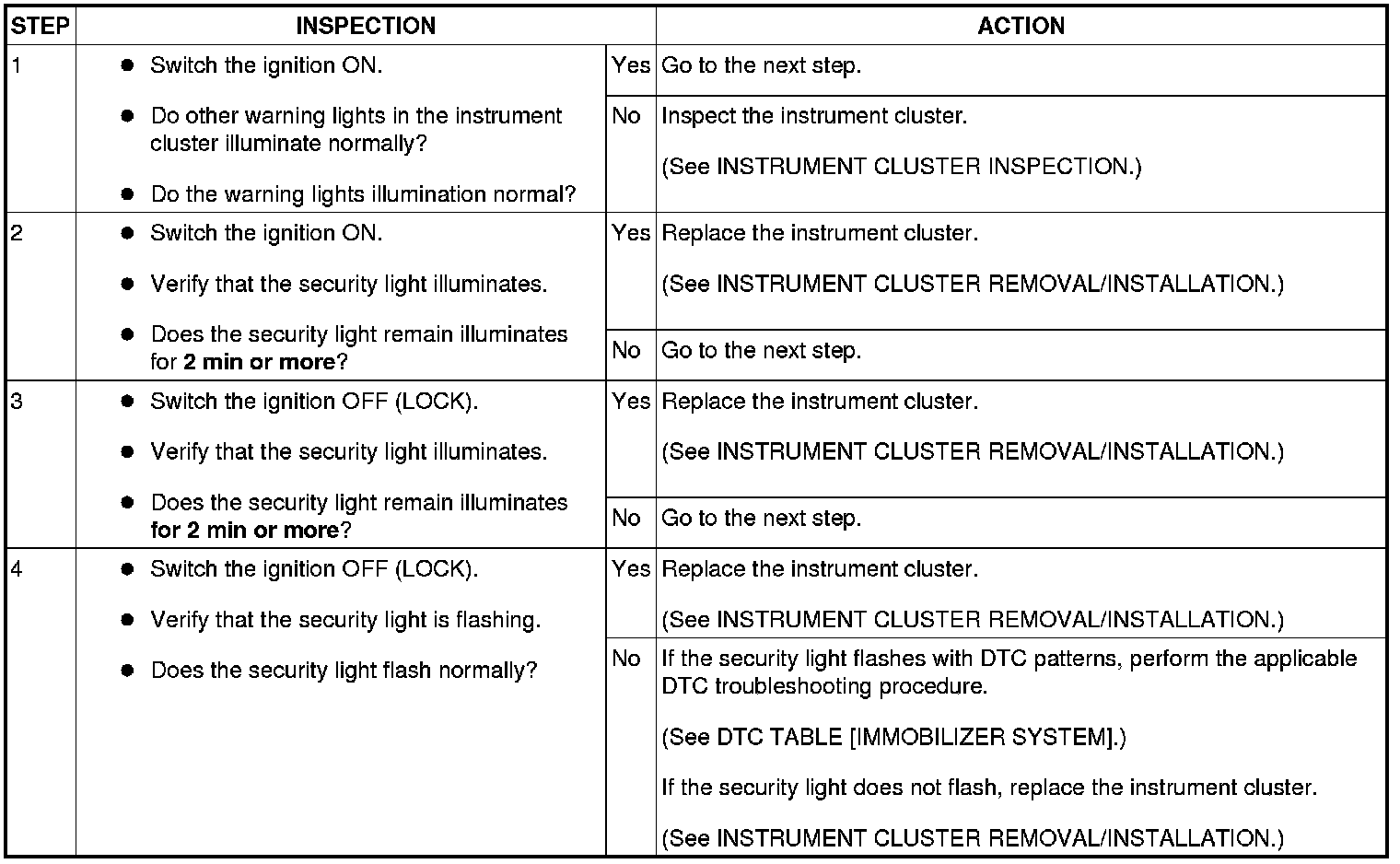

Diagnostic Procedure
