Voice Activation Microphone: Service and Repair

MICROPHONE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper column cover Service and Repair

b. Instrument cluster Removal and Replacement

c. Switch panel Service and Repair

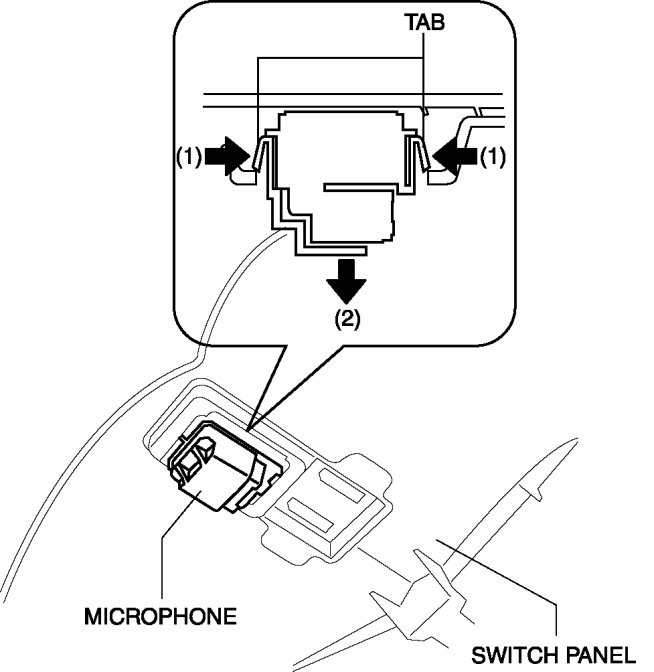

3. Remove the microphone in the direction of the arrow (2) shown in the figure while pressing the microphone tabs in the direction of the arrow (1).

4. Install in the reverse order of removal.
