Control System Personalization Features Setting Procedure

CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE

1. Connect the M-MDS (IDS) to DLC-2.

2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

- When using the IDS (laptop PC)

- Select the "Module Programming".
- Select "Programmable Parameters".
- Select menu in the BCM/GEM.

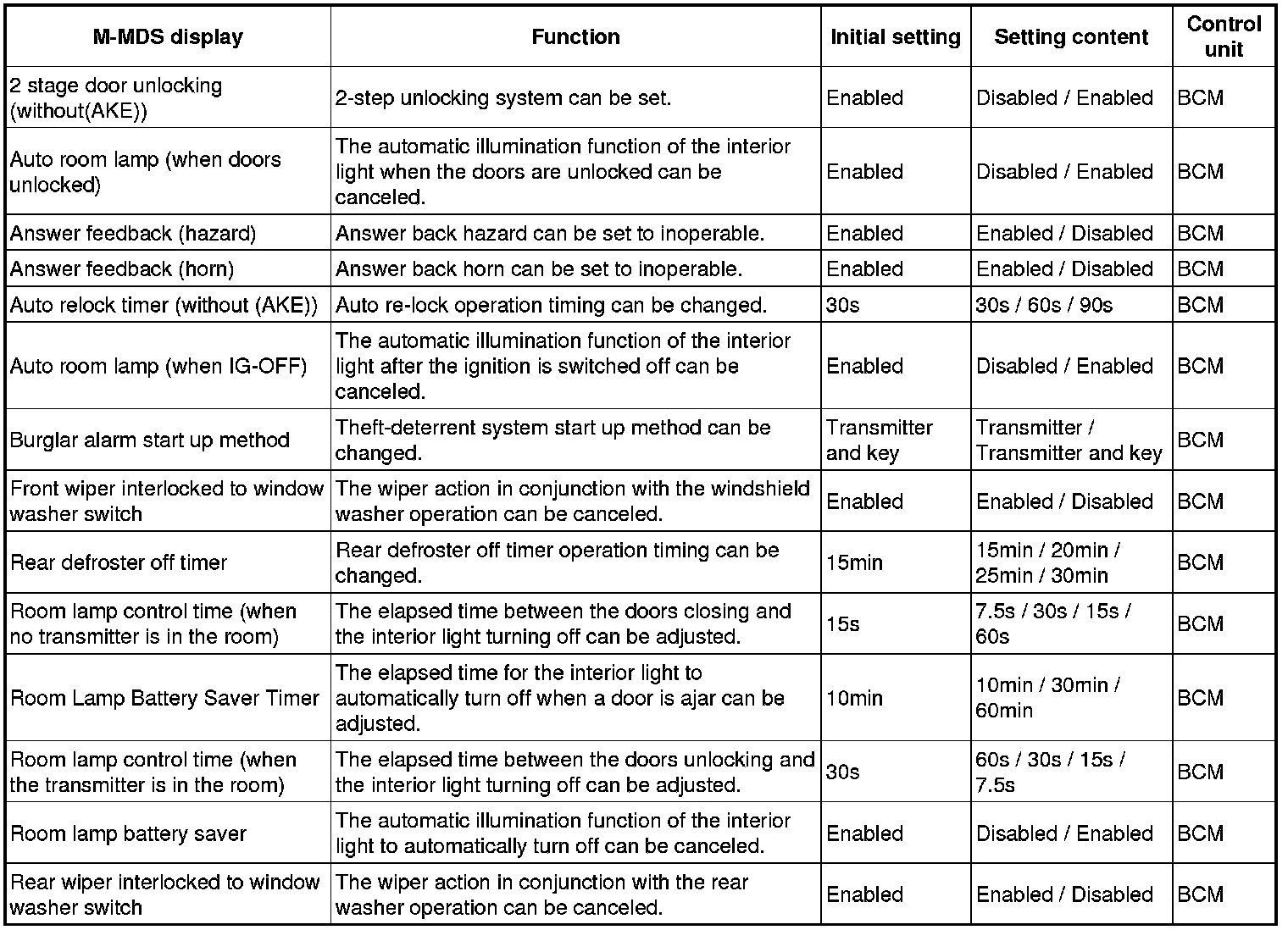

3. Select an item name, and then select option.
