Removal and Replacement

REAR BUMPER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the rear combination light. Service and Repair

3. Remove the rear splash shield. Service and Repair

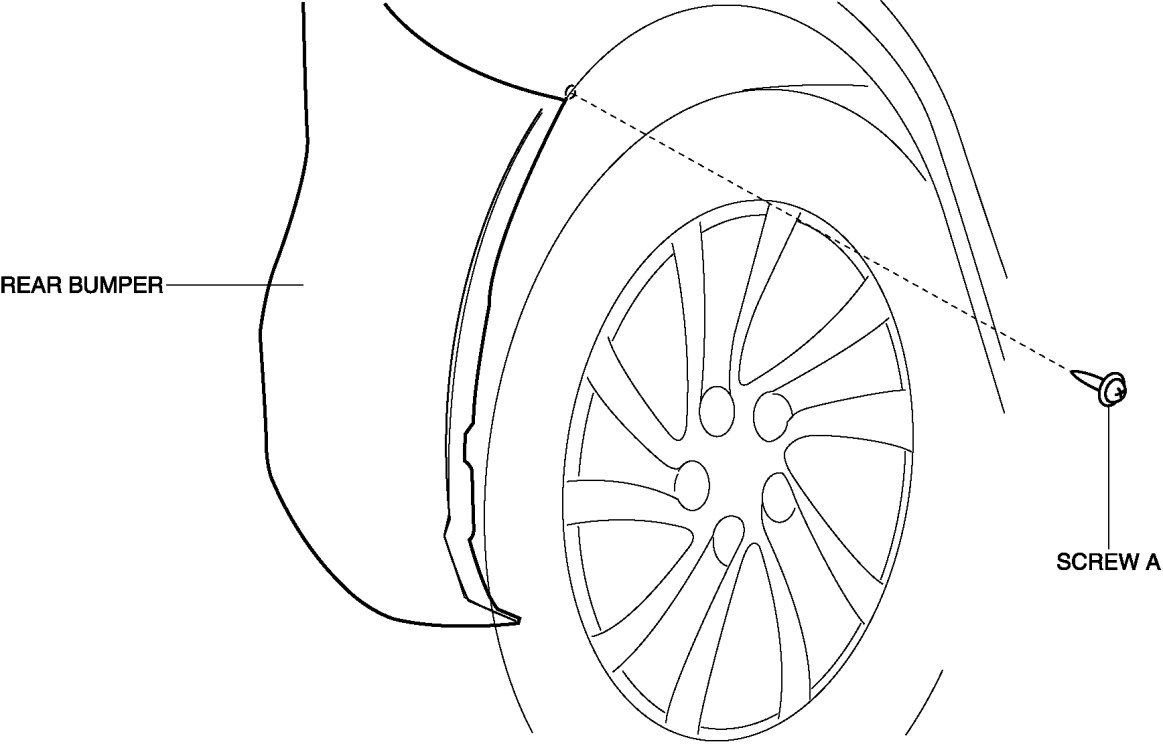

4. Remove the screw A.

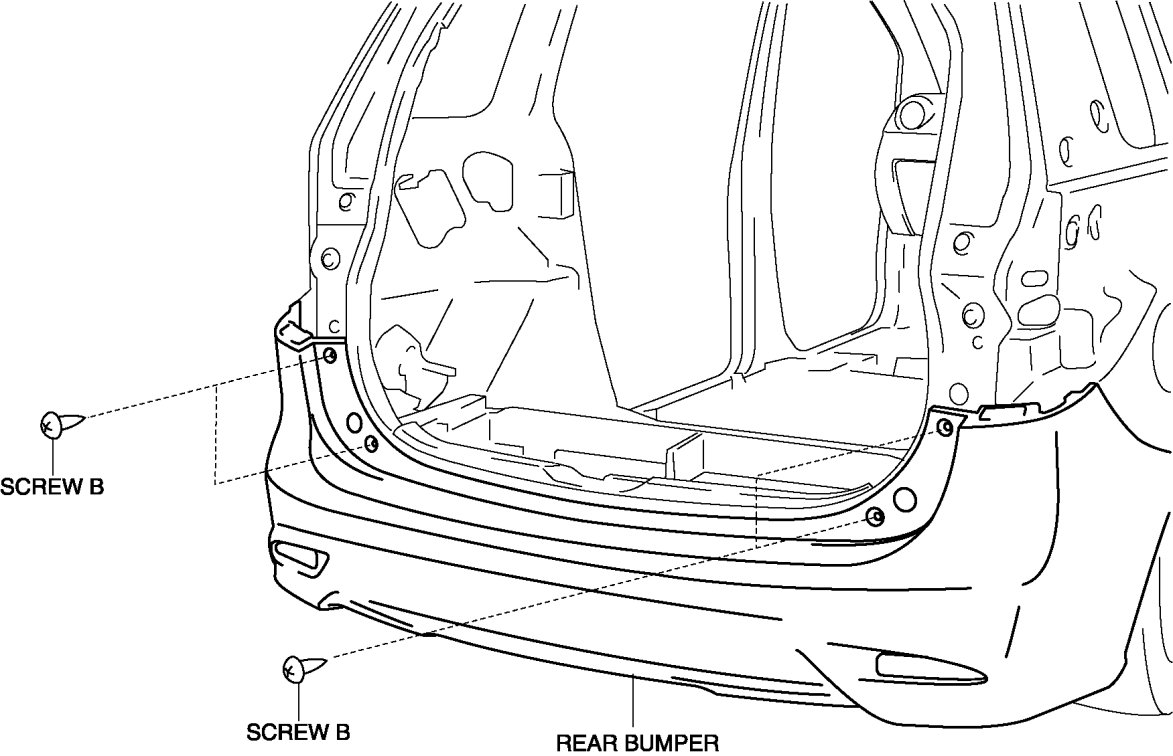

5. Remove the screw B.

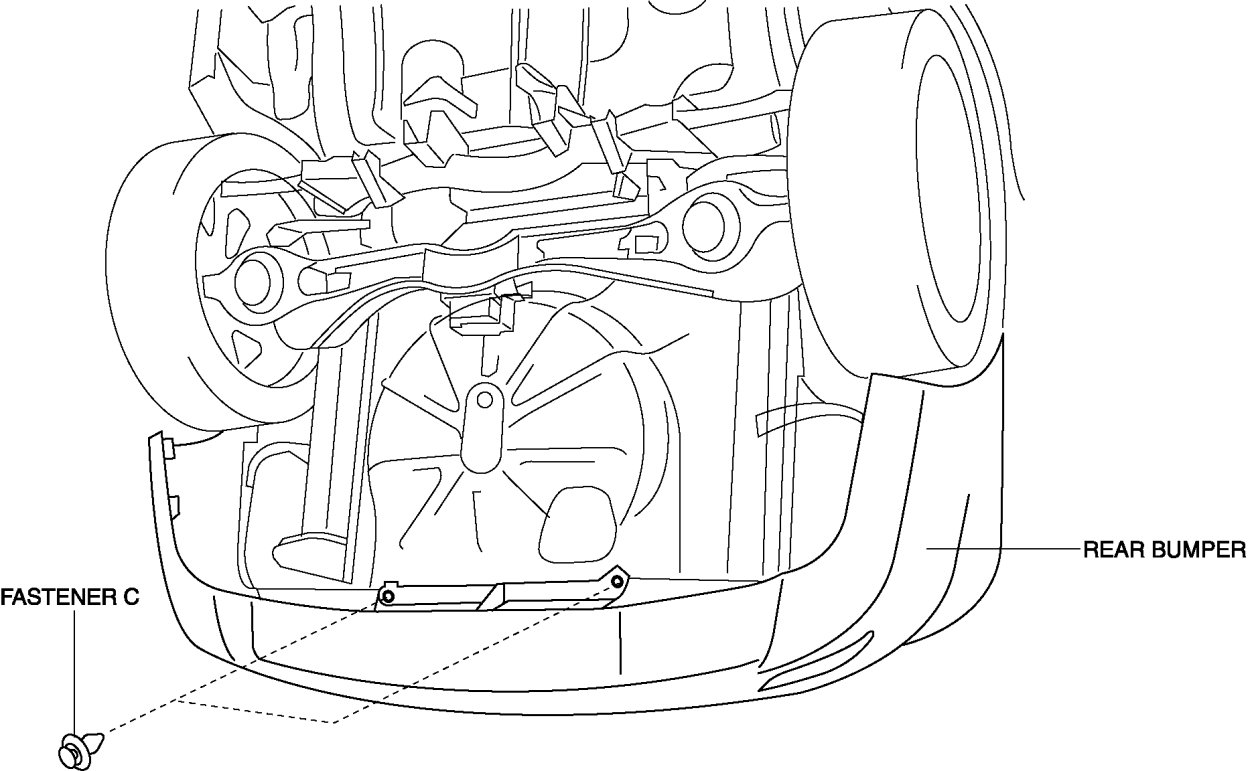

6. Remove the fastener C.

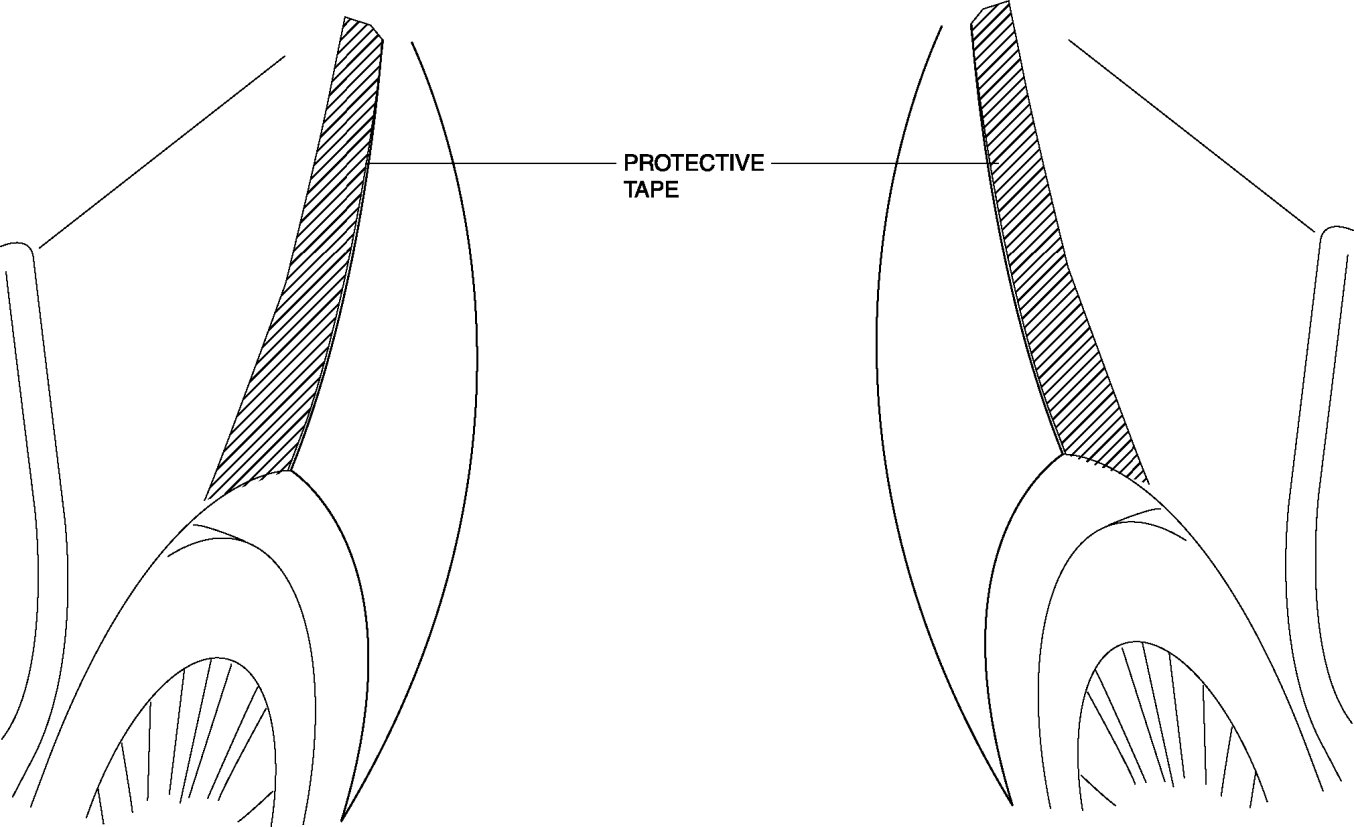

7. Affix the protective tape to the position shown in the figure.

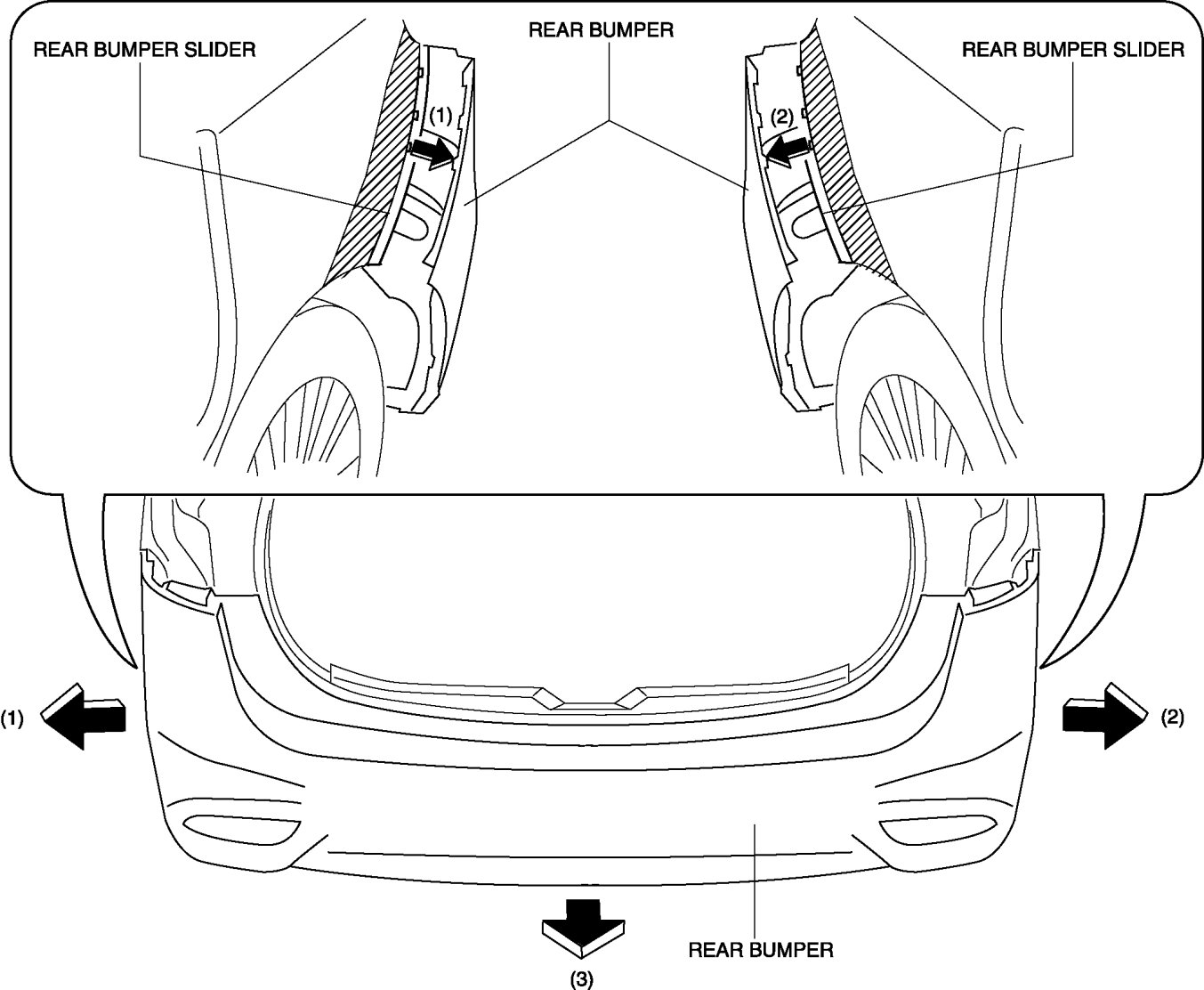

8. Pull the rear bumper in the direction of arrow (1), (2) shown in the figure to disengage the rear bumper from the rear bumper slider.

9. Pull the rear bumper in the direction of arrow (3).






CAUTION:
- When disengaging the rear bumper from the rear bumper slider, the rear bumper could fall and be damaged. Support the rear bumper so that it does not fall.

10. Remove the rear bumper.

11. Install in the reverse order of removal.
