Hood Switch / Sensor: Testing and Inspection
HOOD LATCH SWITCH INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the hood latch.
Service and Repair 3.

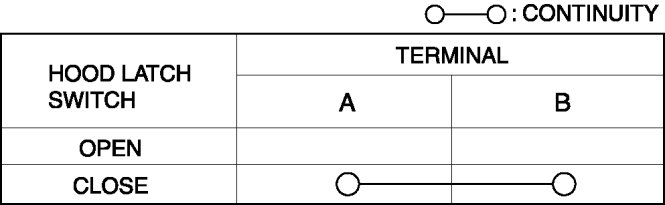

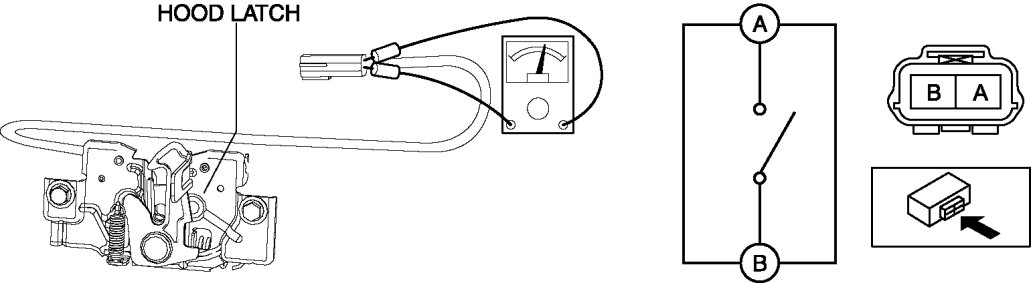

Verify that the continuity is as indicated in the table.
-
If not as indicated in the table, replace the hood latch.
NOTE: -

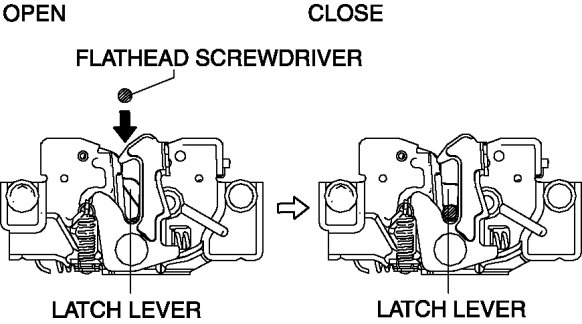

Press the latch lever in using a flathead screwdriver to inspect the closed condition of the hood latch switch.
