Liftgate Light Removal/Installation

LIFTGATE LIGHT REMOVAL/INSTALLATION

NOTE:
- Fogging or condensation on the inside of the liftgate light may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the liftgate lights and has no effect on the light performance. Fogging or condensation will dissipate when the temperature inside the liftgate lights rises after illuminating the back-up lights and a period of time has elapsed.

1. Disconnect the negative battery cable.

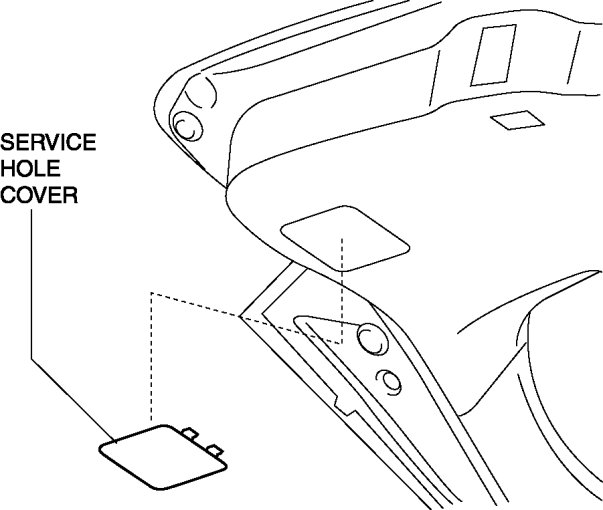

2. Remove the service hole cover.

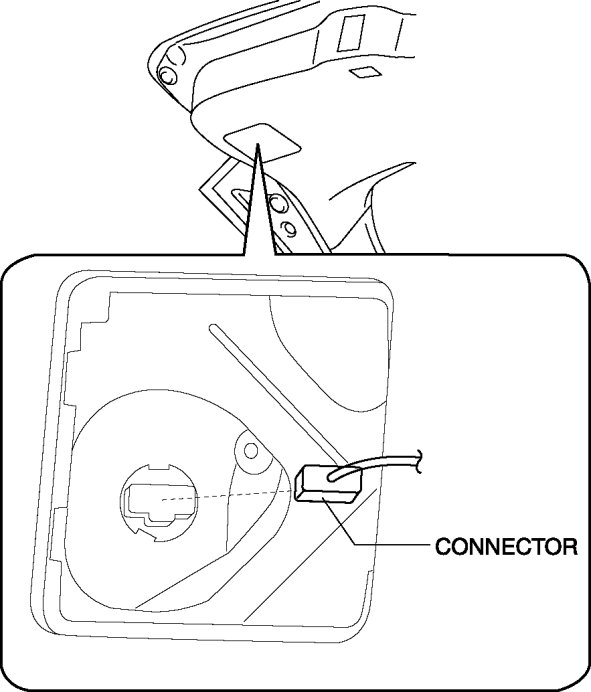

3. Disconnect the connector.

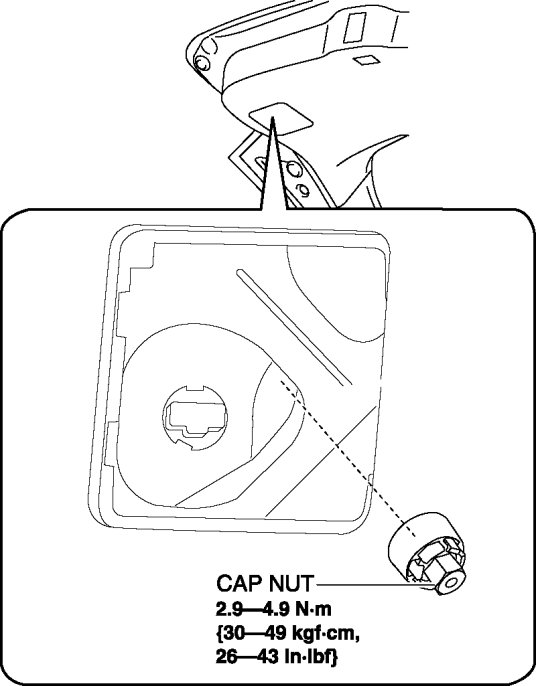

4. Remove the cap nut.

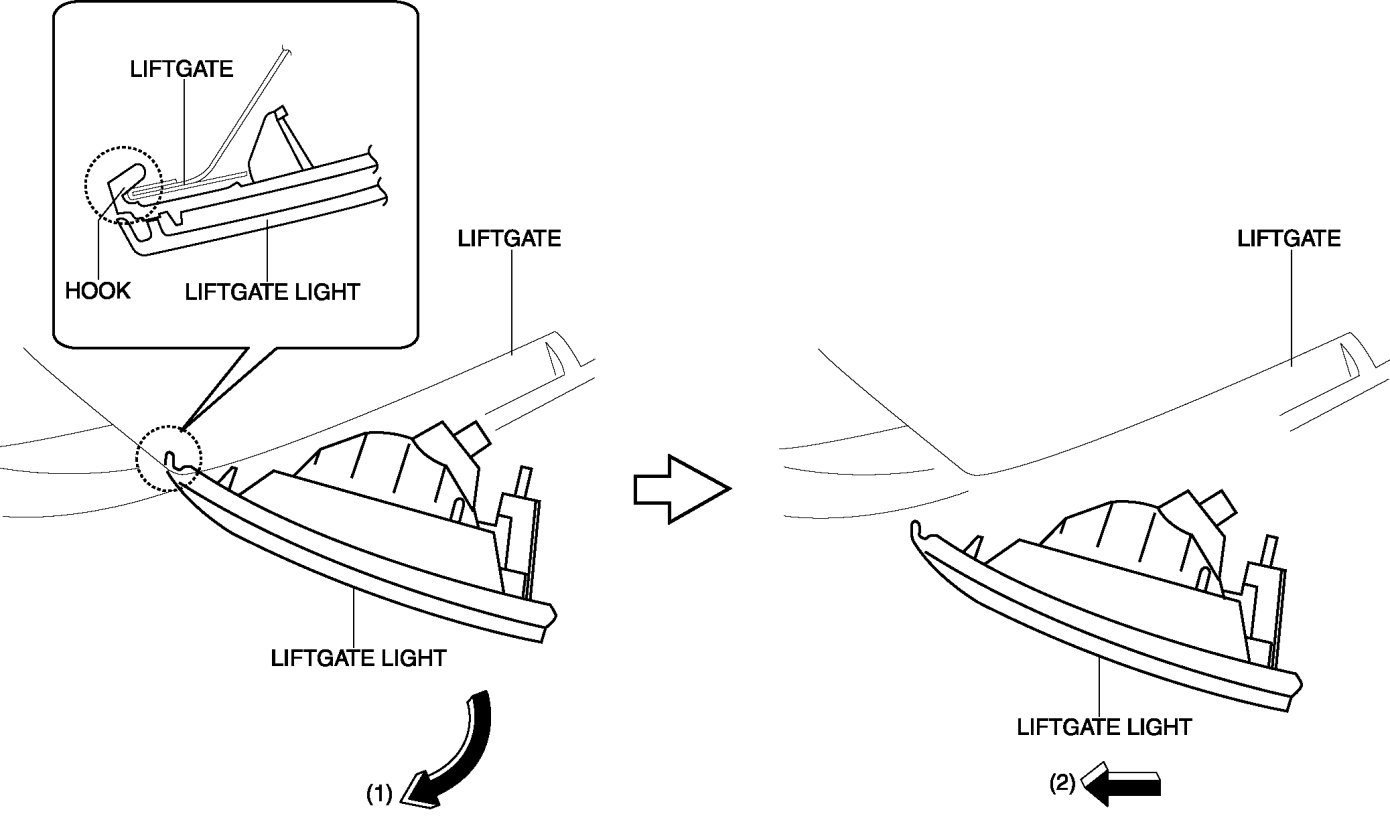

5. Pull the liftgate light in the direction of the arrow (1), (2) shown in the figure while detaching hook.






6. Remove the liftgate light.

7. Install in the reverse order of removal.
