Trunk End Trim Removal/Installation
TRUNK END TRIM REMOVAL/INSTALLATION 1.
Remove the sub-trunk.
Sub-Trunk Removal/Installation 2.

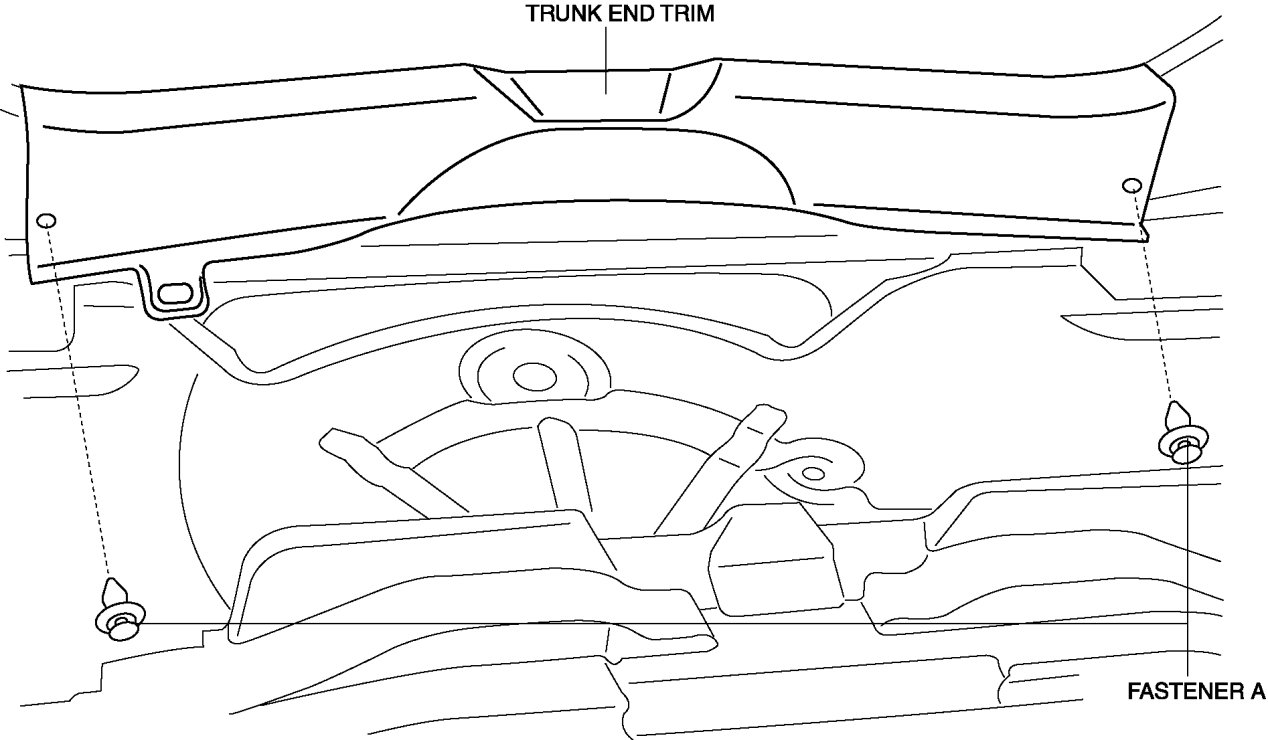

Remove the fasteners A.
3.

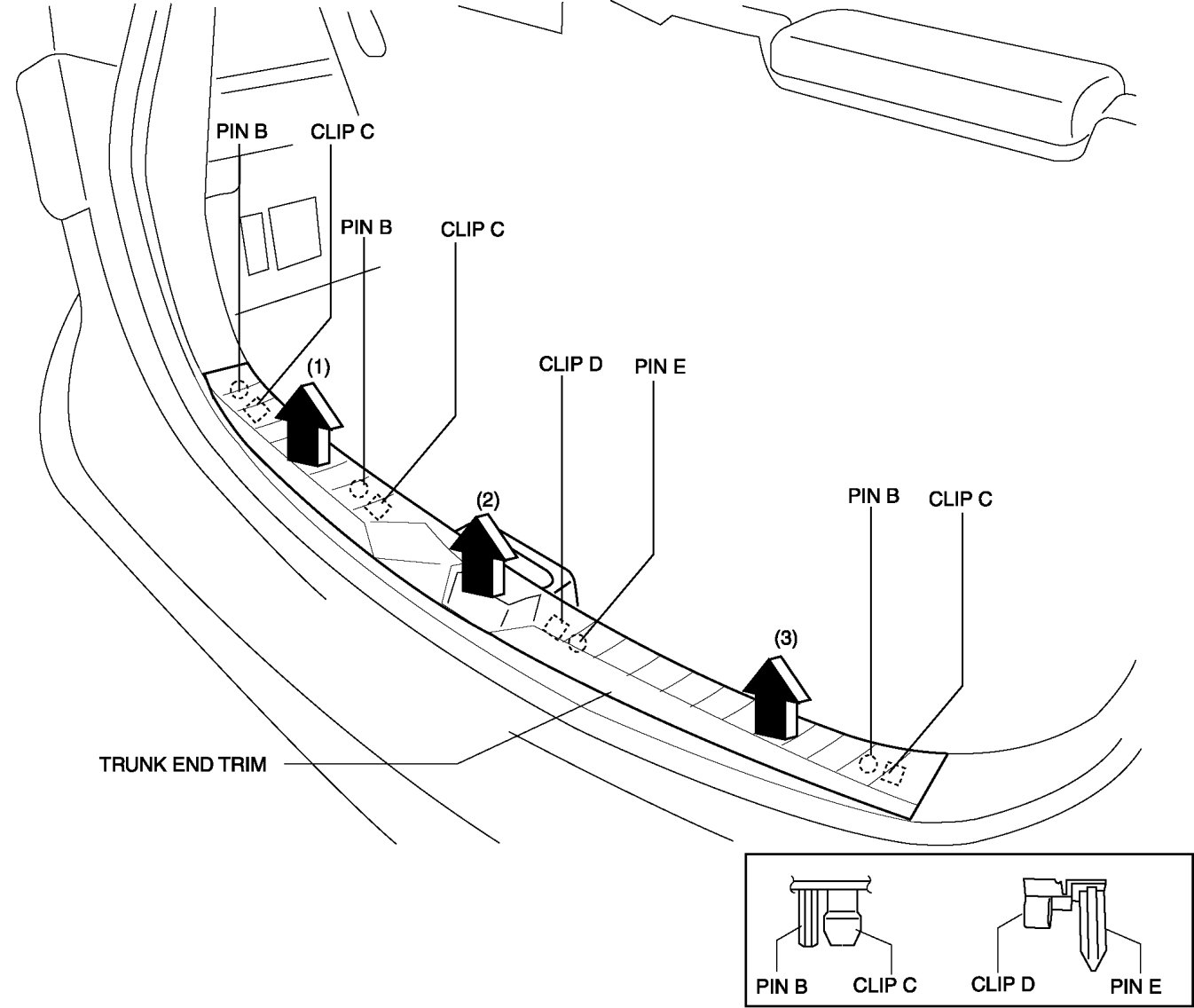

Pull in the direction of the arrow (1), (2), (3) shown in the figure and remove pins B, clips C, clip D, pins E.
4.
Remove the trunk end trim.
5.
Install in the reverse order of removal.
