Trunk / Liftgate Switch: Service and Repair
LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the following parts:
a.
Liftgate upper trim
b.
Liftgate side trim
c.
Liftgate lower trim
d.
Liftgate light
Service and Repair e.
Liftgate garnish
3.

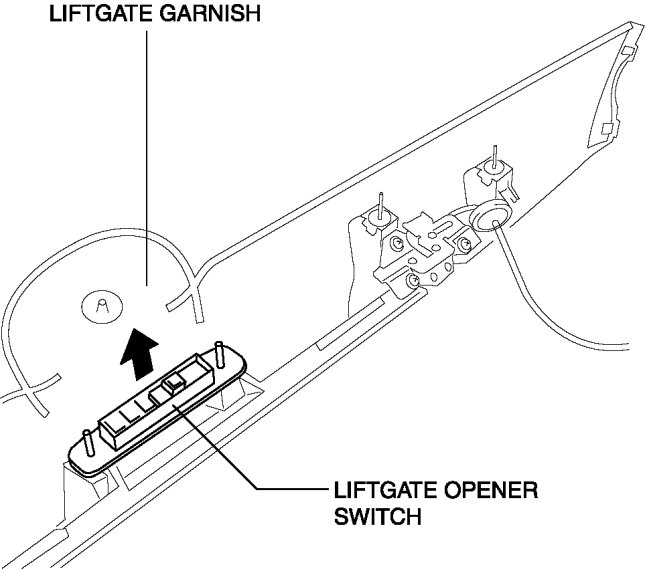

Remove the liftgate opener switch from the liftgate garnish.
4.
Install in the reverse order of removal.
