Exterior Moulding / Trim: Service and Repair

SAIL GARNISH REMOVAL/INSTALLATION

1. Open the front door.

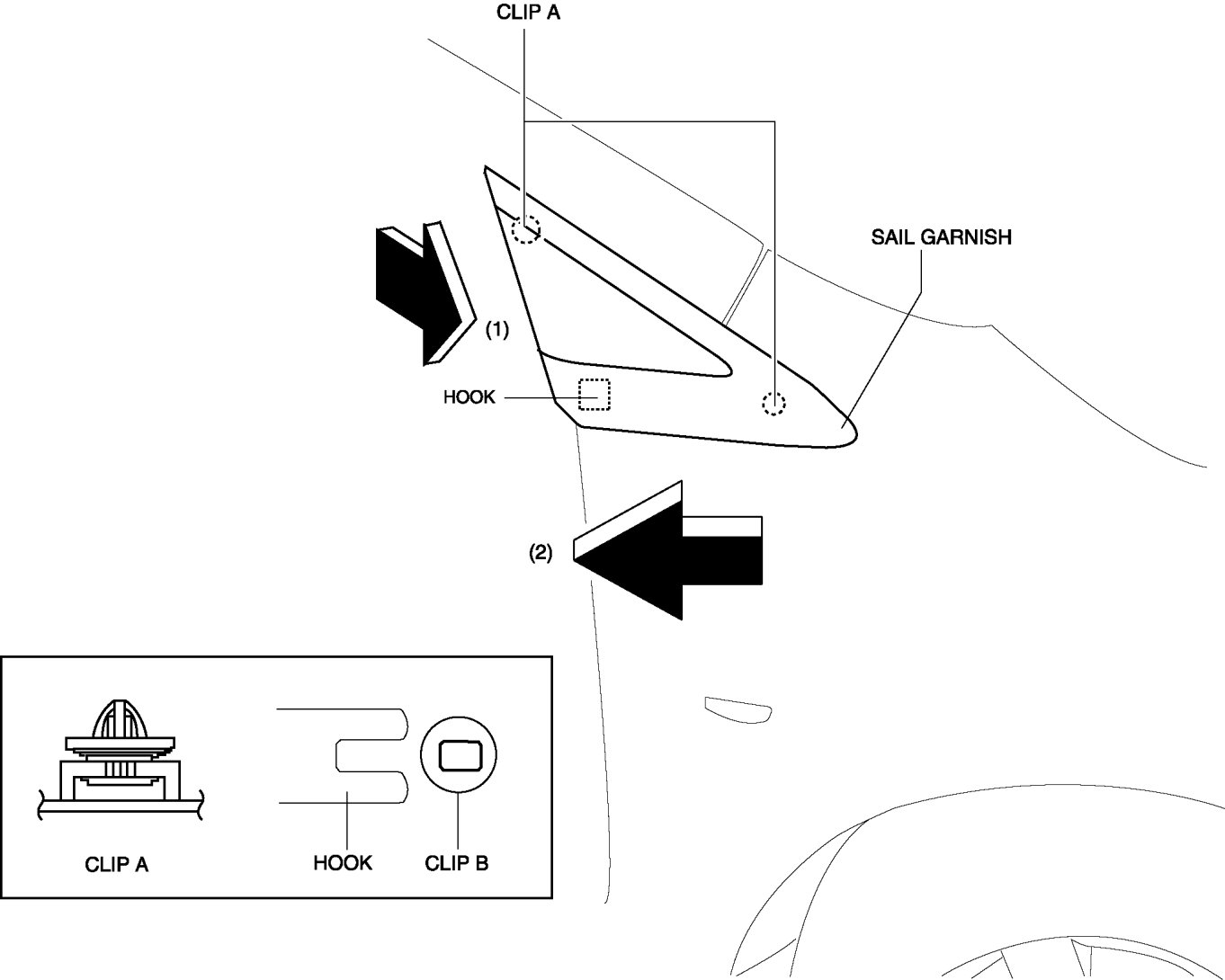

2. Remove the clip A in the direction of arrow (1) using a fastener remover.

3. Slide the sail garnish in the direction of the arrow (2) shown in the figure and remove the hook from clip B.

4. Remove the sail garnish.

5. After removing the sail garnish, remove clip B from the body using a fastener remover.

6. Install in the reverse order of removal.
