Front Fender: Service and Repair

FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front bumper Removal and Replacement

b. Front combination lights Service and Repair

c. Front fender molding Cowl Grille Removal/Installation

d. Side step molding

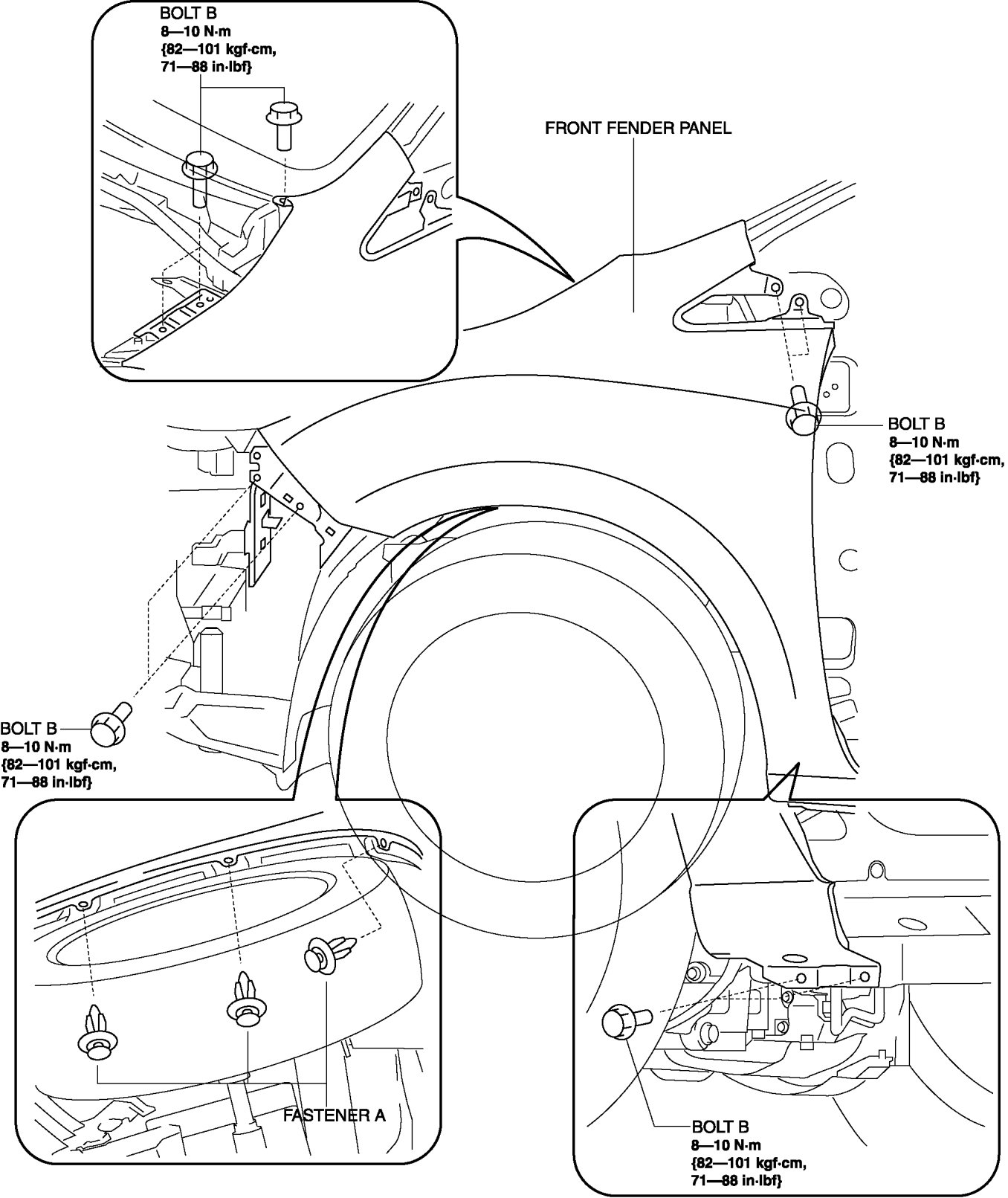

3. Remove fastener A and bolt B, then remove the front fender panel.

4. Install in the reverse order of removal.

5. Adjust the headlight aiming. Adjustments
