Keyless Entry: Service and Repair

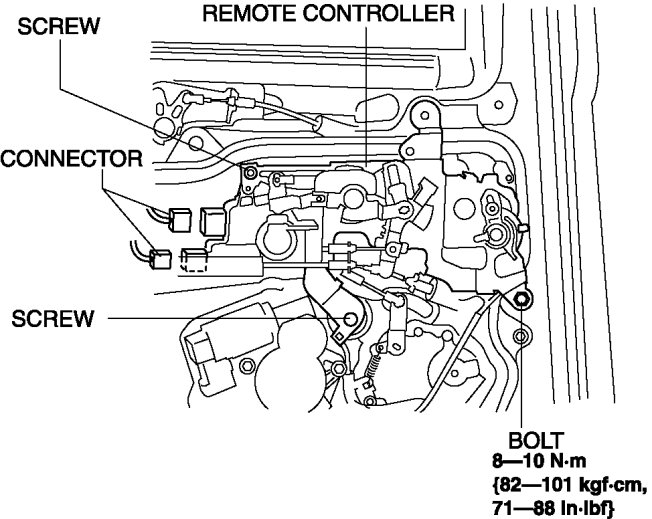

REMOTE CONTROLLER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Side door garnish Side Door Garnish Removal/Installation

b. Rear side trim Rear Side Trim Removal/Installation

c. Sliding door trim Service and Repair

d. Sliding door inner handle Service and Repair

3. Disconnect the connector.






4. Disconnect the link and cable.

5. Remove the screws.

6. Remove the bolt.

7. Remove the remote controller.

8. Remove the sliding door lock actuator. Sliding Door Lock Actuator Removal/Installation

9. Install in the reverse order of removal.
