Power Door Lock Switch: Testing and Inspection
DOOR LOCK SWITCH INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the inner handle cover.
Overhaul 3.
Remove the door lock switch.
Service and Repair 4.

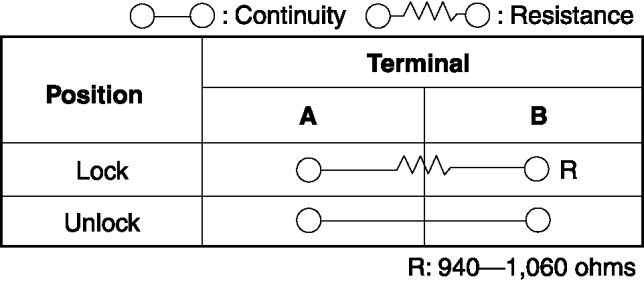

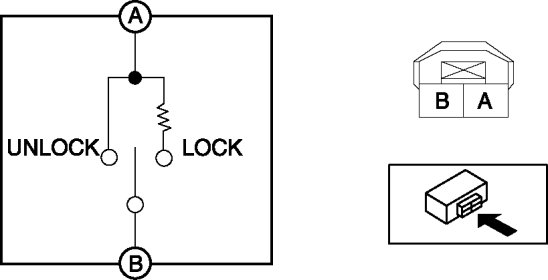

Verify that the continuity between the door lock switch terminals is as indicated in the table.
-
If not as indicated in the table, replace the door lock switch.
