Power Mirror Switch: Testing and Inspection





POWER OUTER MIRROR SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Driver-side inner garnish Inner Garnish Removal/Installation

b. Driver-side front door trim Front Door Trim Removal/Installation

c. Switch panel Service and Repair

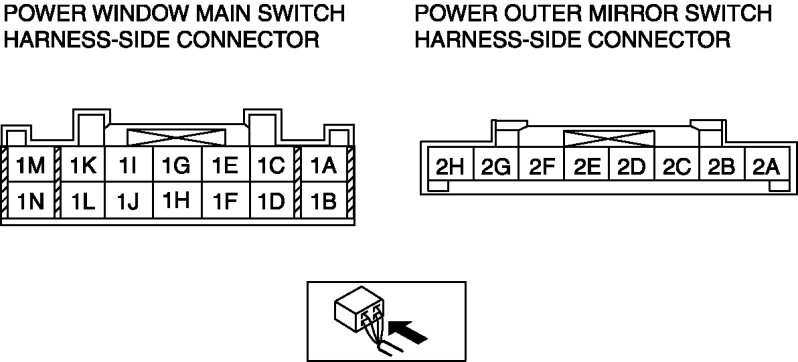

3. Connect the power outer mirror switch connector.

4. Connect the negative battery cable.

5. Verify that the voltages of each of the terminals are as indicated in the terminal voltage table.

- If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.

- If the system does not work normally even though the parts or related wiring harnesses do not have any malfunction, replace the power outer mirror switch. Service and Repair

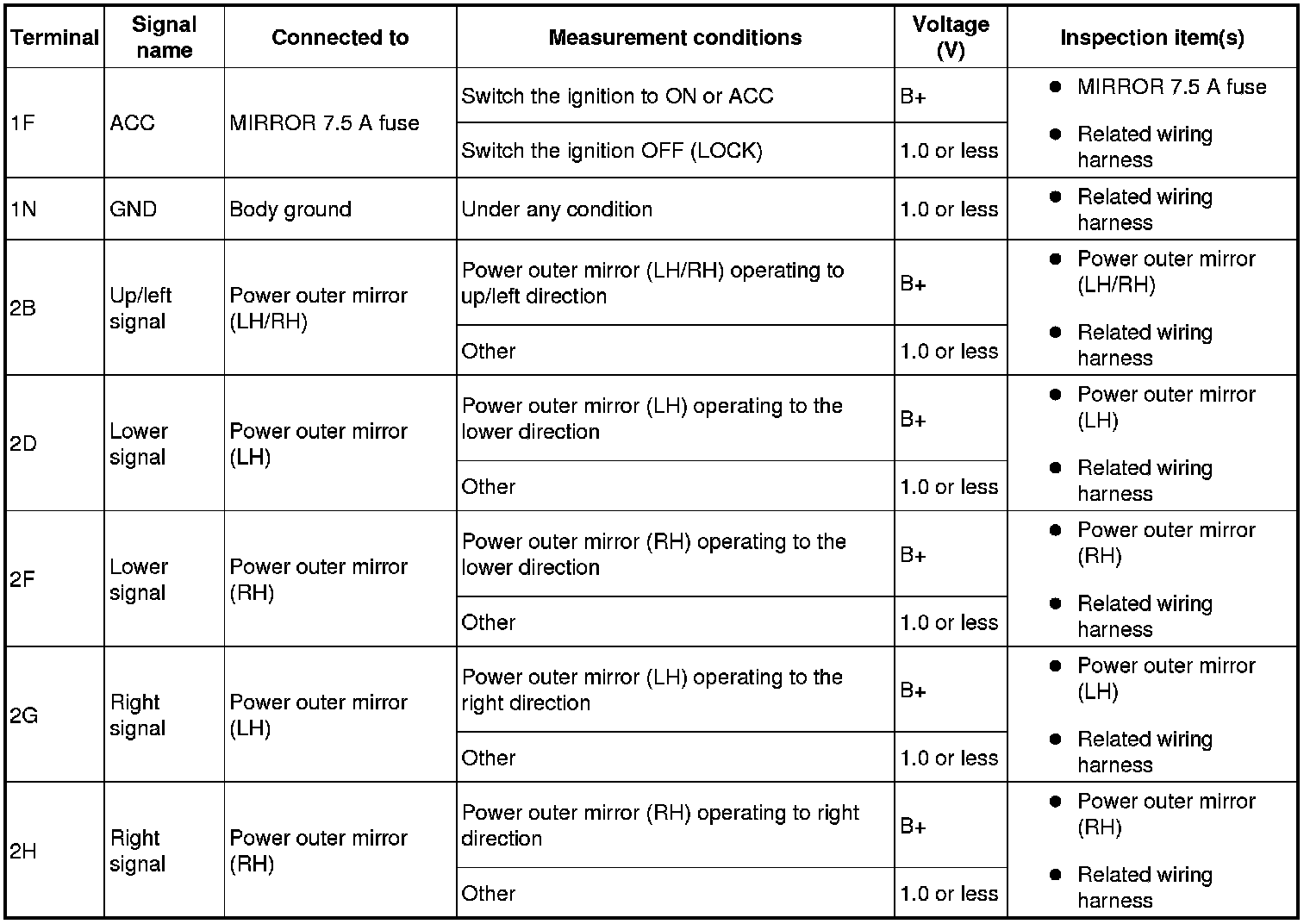

Terminal Voltage Table (Reference)
