Outer Mirror Glass Installation
OUTER MIRROR GLASS INSTALLATION 1.

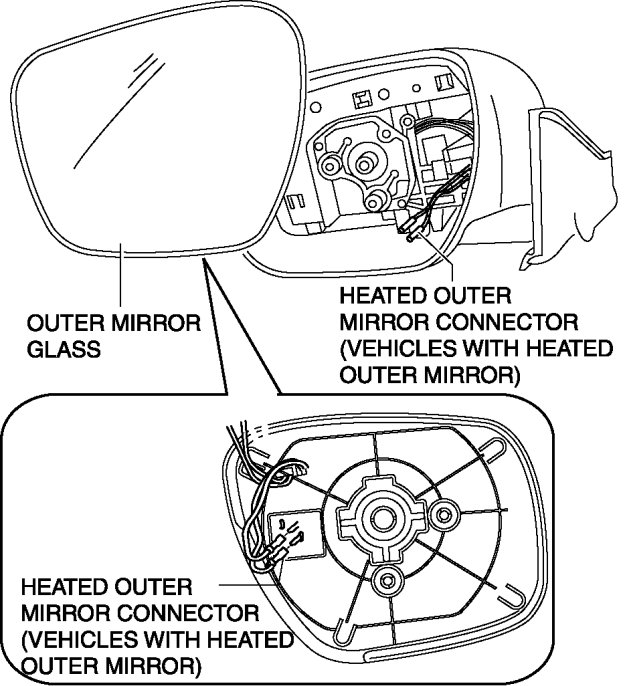

Connect the heated outer mirror connector (vehicles with heated outer mirror).
2.

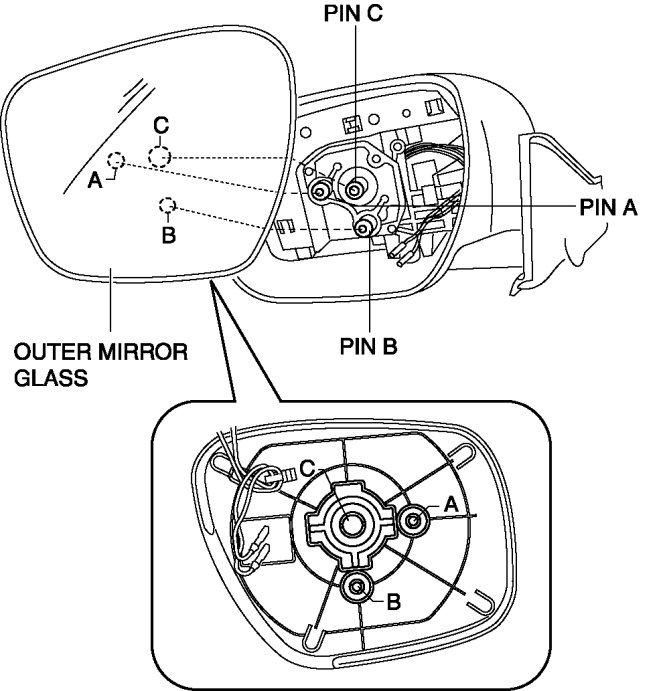

Press part C on the outer mirror glass and install pin C.
3.
Press part A on the outer mirror glass and install pin A.
4.
Press part B on the outer mirror glass and install pins B.
5.
Connect the negative battery cable.
