Seat Temperature Switch: Service and Repair





SEAT WARMER SWITCH REMOVAL/INSTALLATION



1. Switch the ignition OFF (LOCK).

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable and wait 1 min or more.

4. Disconnect the negative battery cable.

5. Remove the center console box. Center Console Removal/Installation

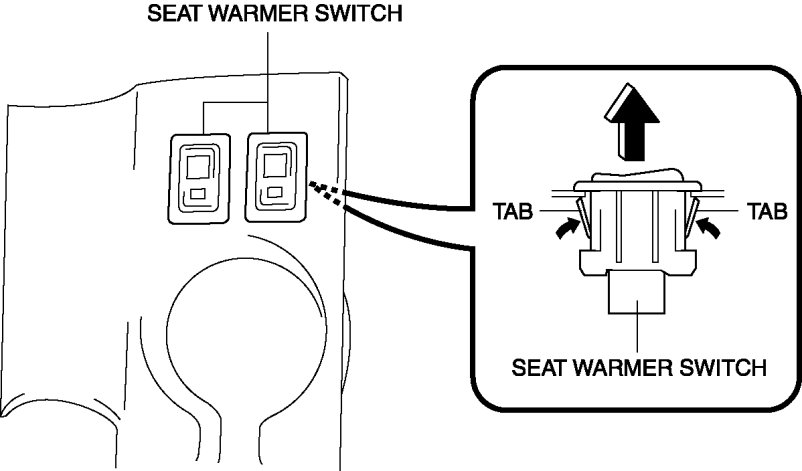

6. Squeeze the tabs of seat warmer switch and pull it outward to remove it.






7. Remove the seat warmer switch.

8. Install in the reverse order of removal.

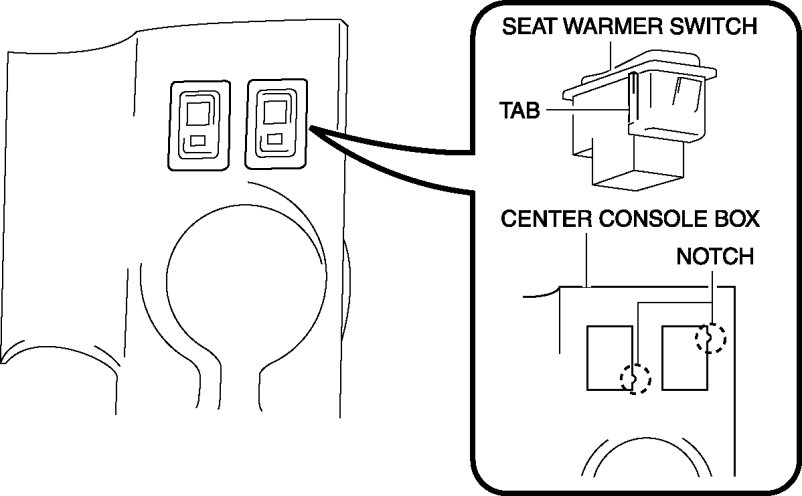

Seat Warmer Switch Installation Note

1. Place the seat warmer switch's tab to the notch of center console box.
