Second-Row Seat Back Component Removal/Installation
SECOND-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION 1.

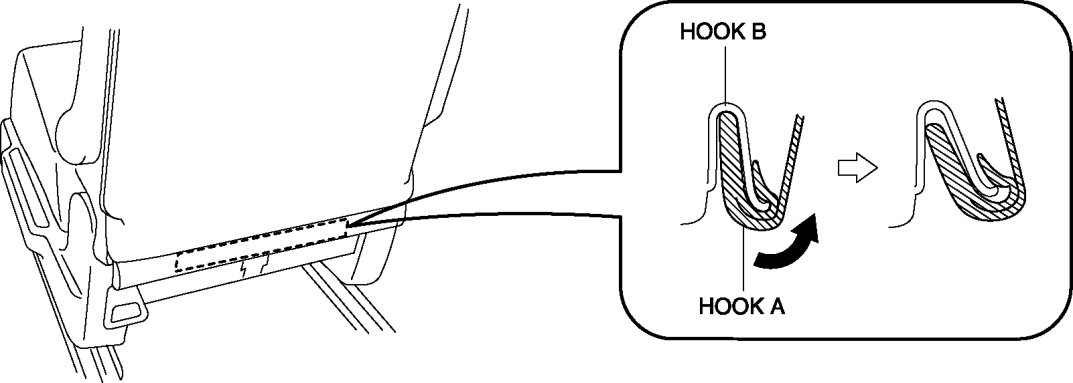

Slide the hook A shown in the figure to detach it from the hook B.
2.
Remove the second-row seat armrest.
Second-Row Seat Back Trim Removal/Installation 3.

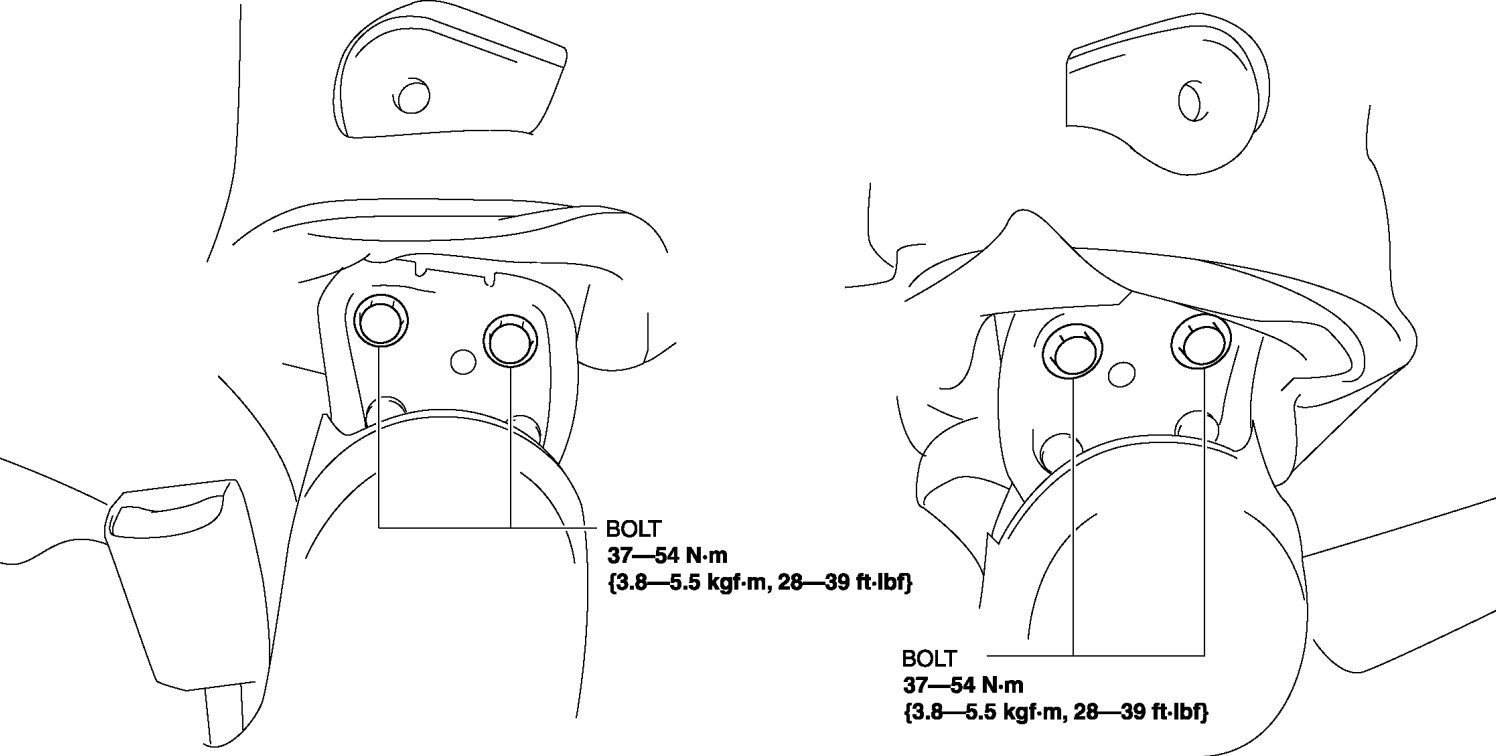

Remove the bolts, then remove the second-row seat back component.
4.
Install in the reverse order of removal.
