Rear - Second-Row Seat Removal/Installation
SECOND-ROW SEAT REMOVAL/INSTALLATION 1.

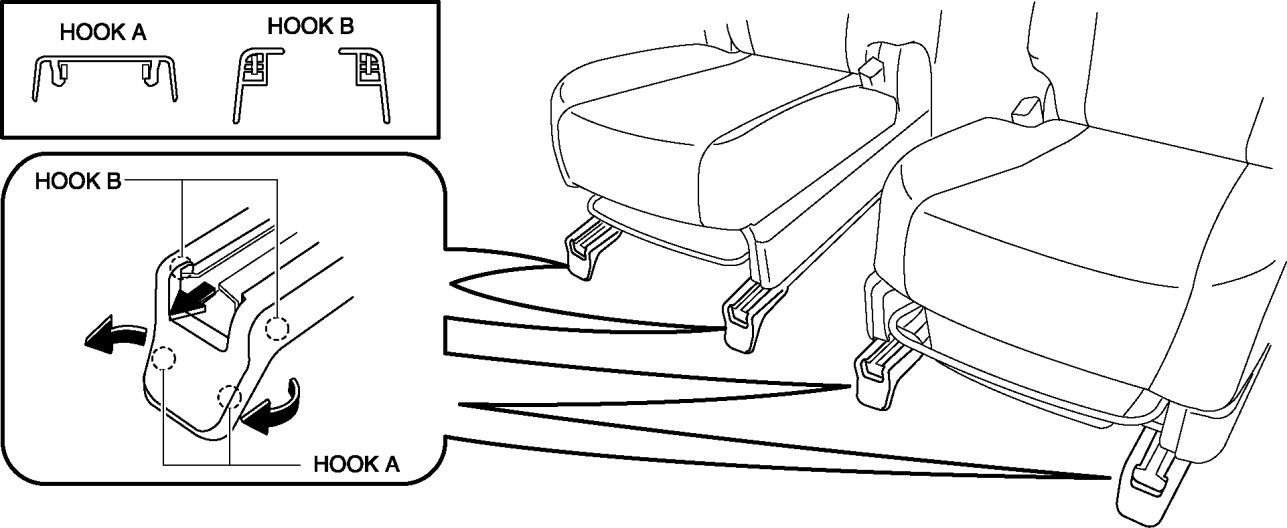

Detach the hook A and B, remove the cover.
2.

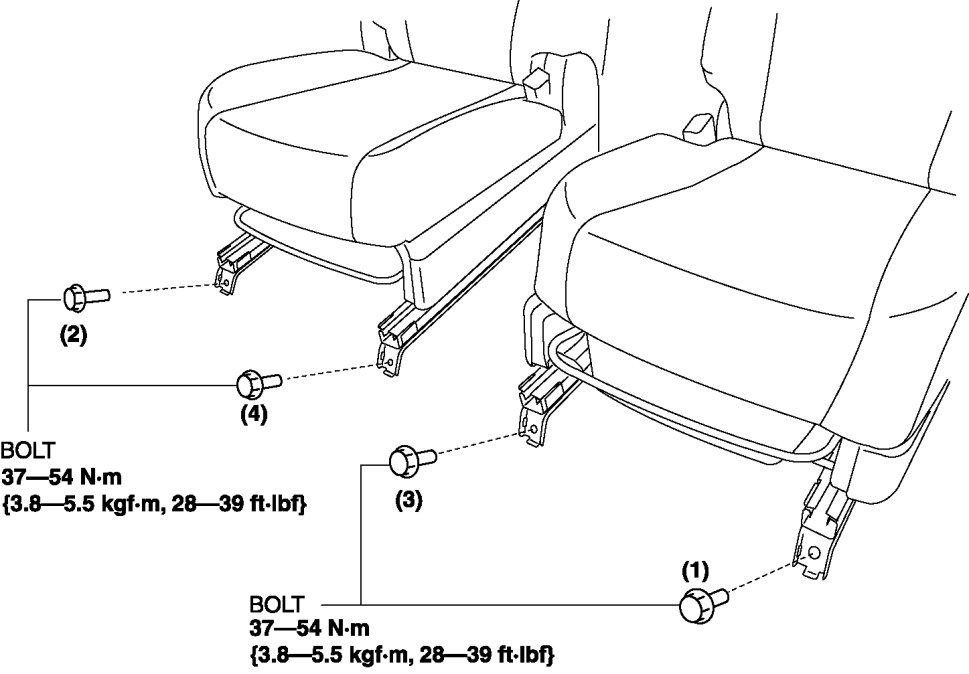

Remove the bolts in the order of (1), (2), (3), (4) shown in the figure.
3.

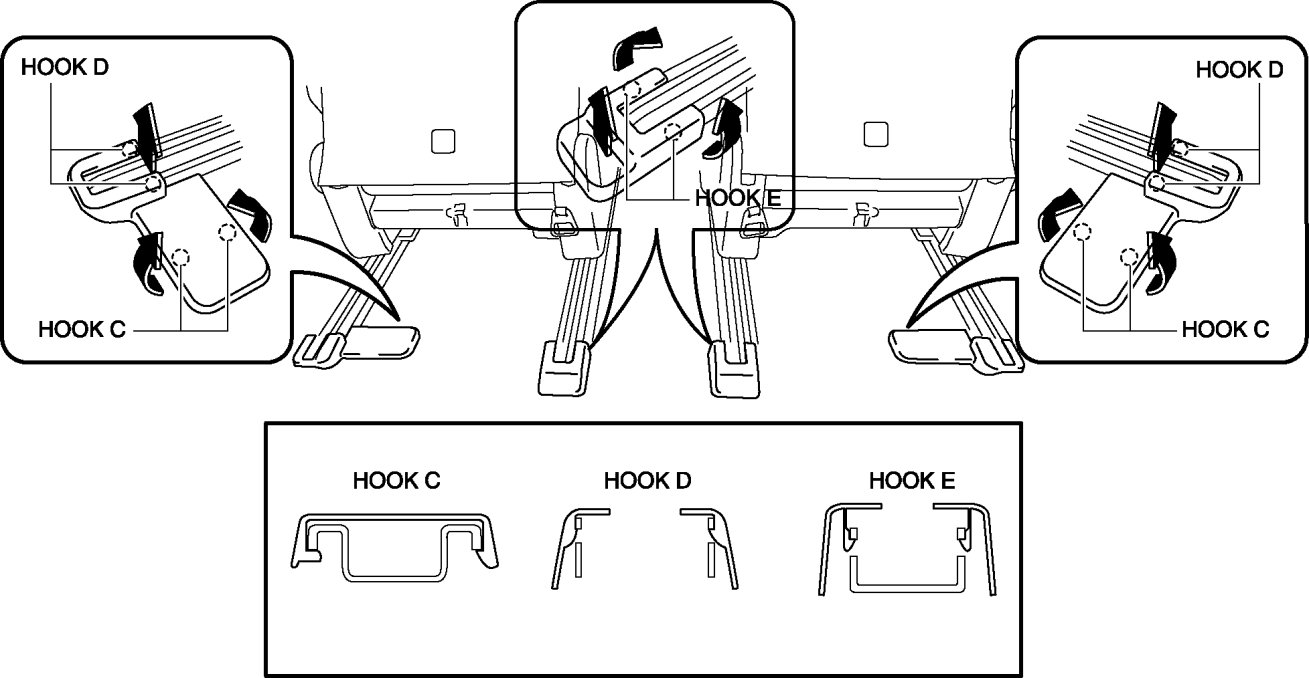

Detach the hook C, D and E, remove the cover.
4.

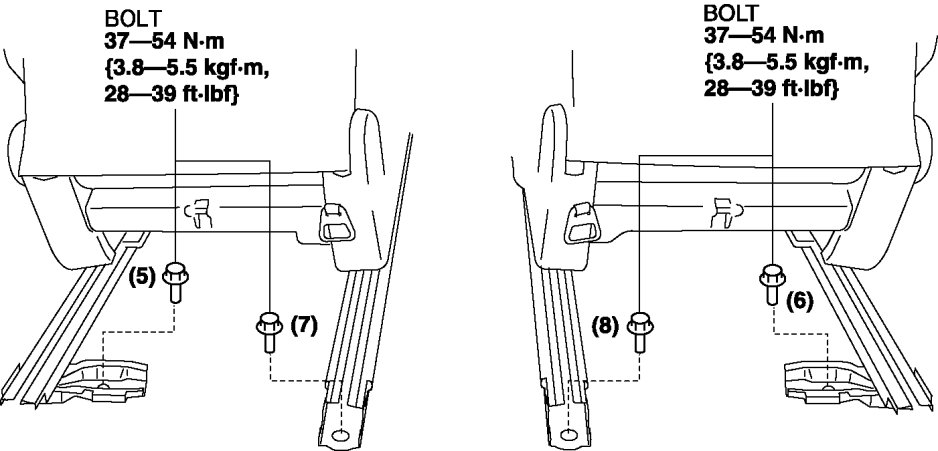

Remove the bolts in the order of (5), (6), (7), (8) shown in the figure.
5.
Take the second-row seat out.
6.
Install in the reverse order of removal.
