Splash Guard: Service and Repair
SPLASH SHIELD REMOVAL/INSTALLATIONFront 1.

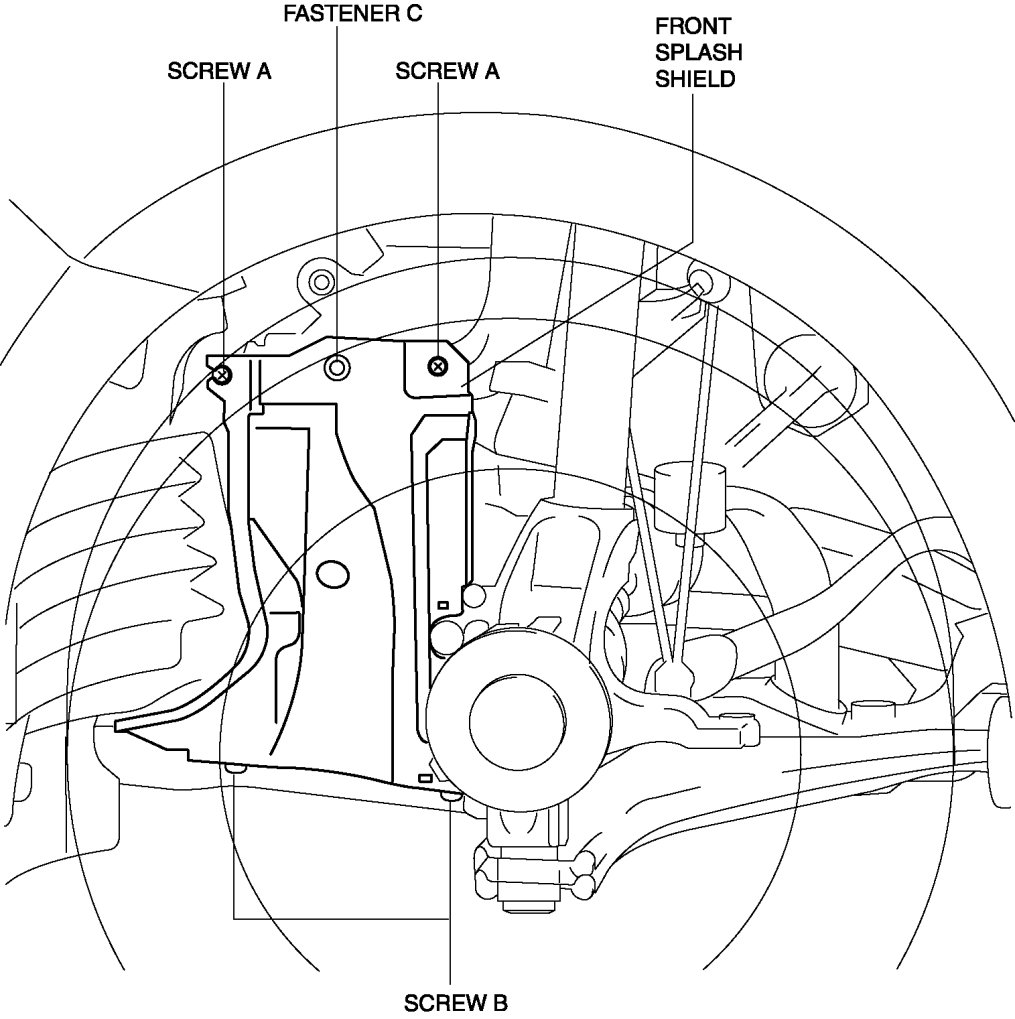

Remove the screws A, screw B, and fastener C.
2.
Remove the front splash shield.
3.
Install in the reverse order of removal.
Rear 1.

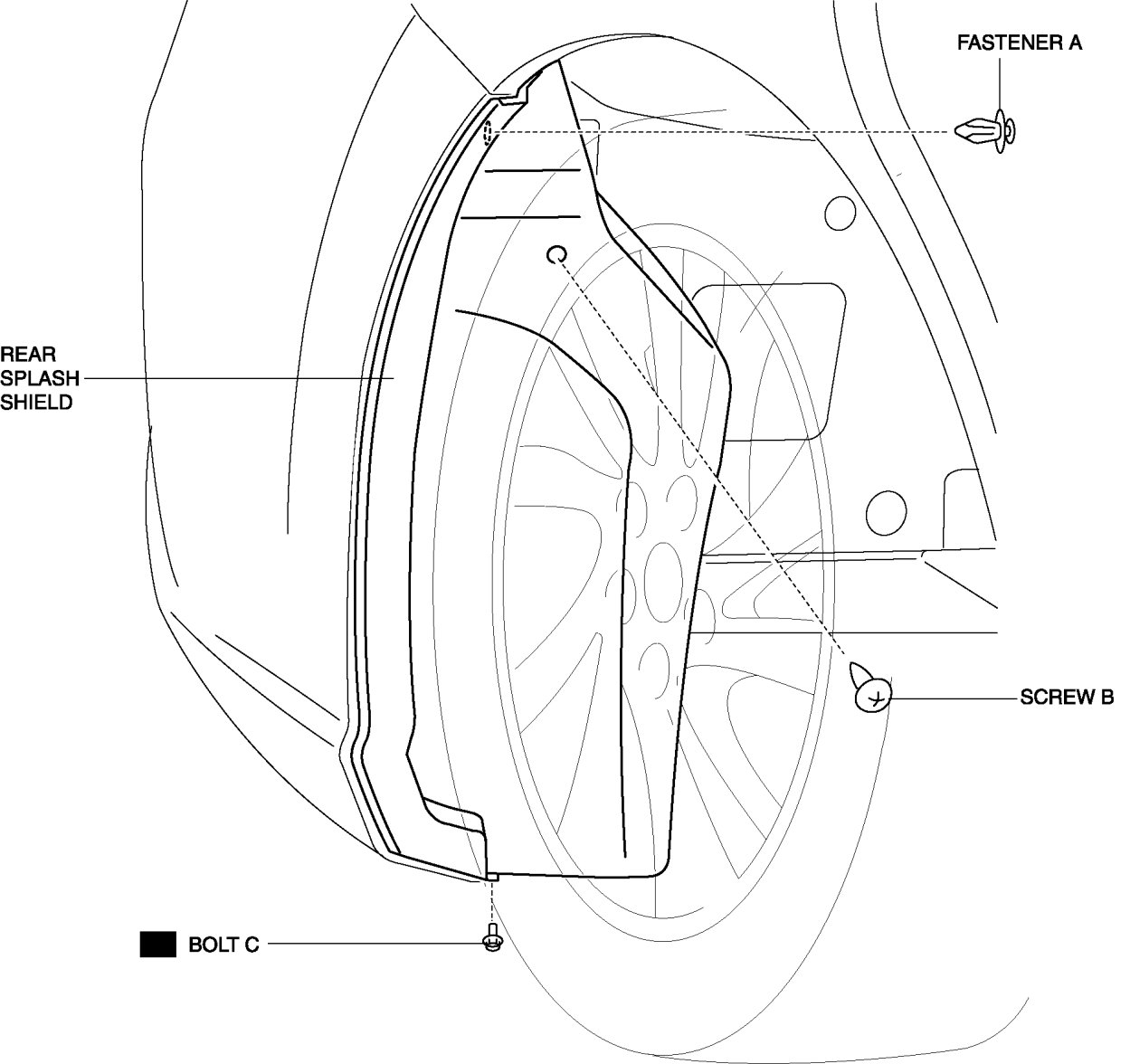

Remove the fastener A, screw B, and bolt C.
2.

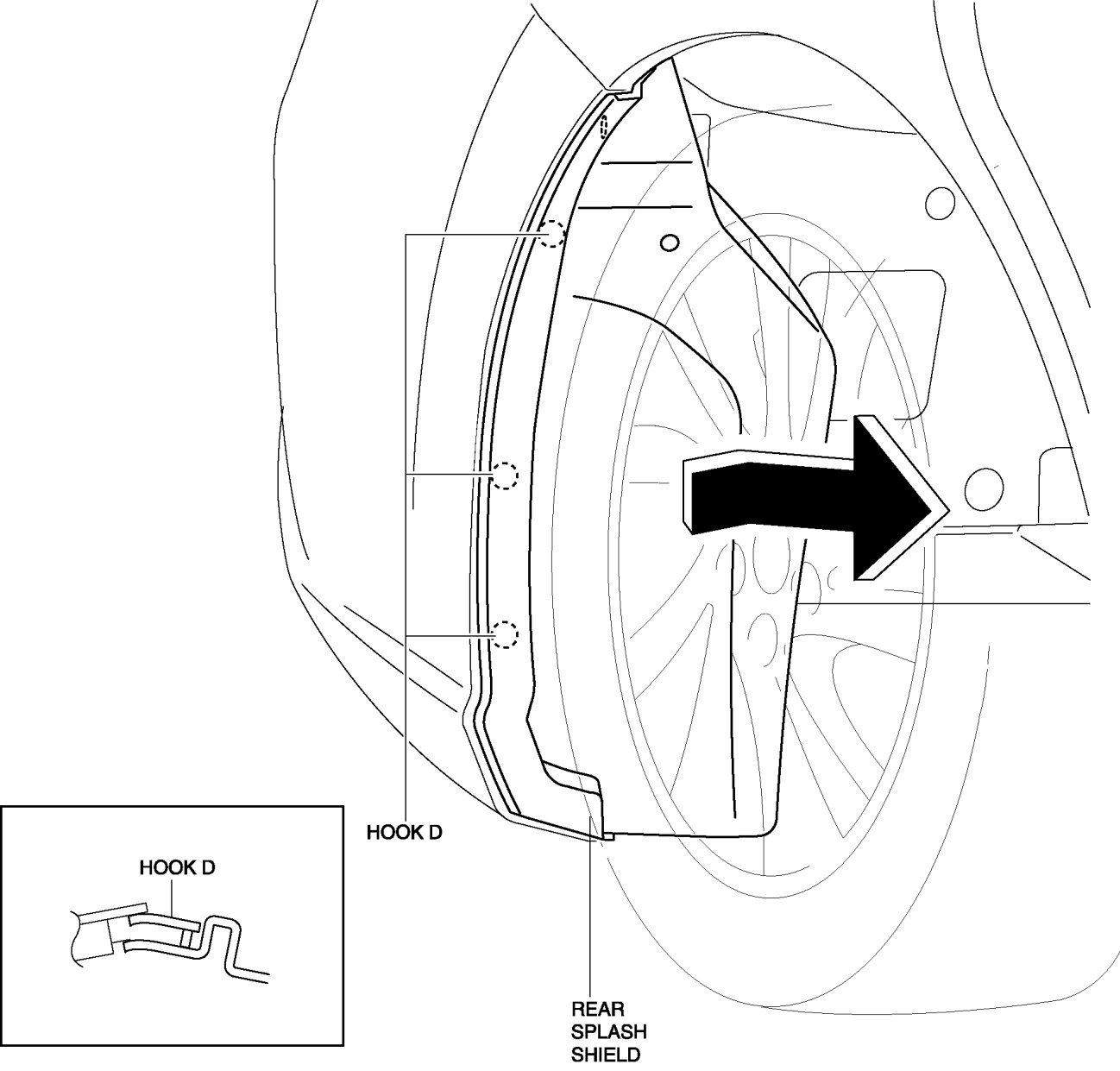

Pull the rear splash shield in the direction of the arrow shown in the figure, then remove it while detaching the hook D.
3.
Install in the reverse order of removal.
