Component Tests and General Diagnostics
STEERING ANGLE SENSOR INSPECTION 1.
Remove the column cover.
Service and Repair 2.

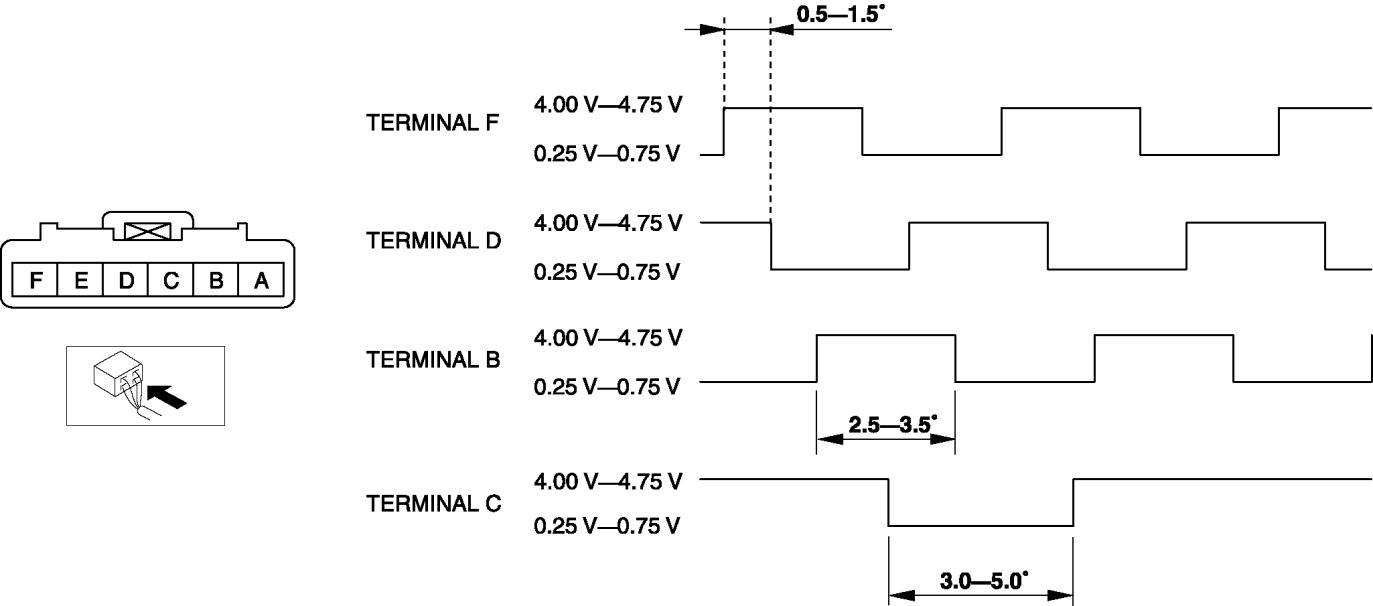

Verify that the terminal voltage and pulse are as indicated in the table when the steering wheel is turned to the left and right.
-
If not as indicated in the table, replace the
steering angle sensor.
