Symptom Troubleshooting - Dynamic Stability Control - DSC
SYMPTOM TROUBLESHOOTING [DYNAMIC STABILITY CONTROL (DSC)] -

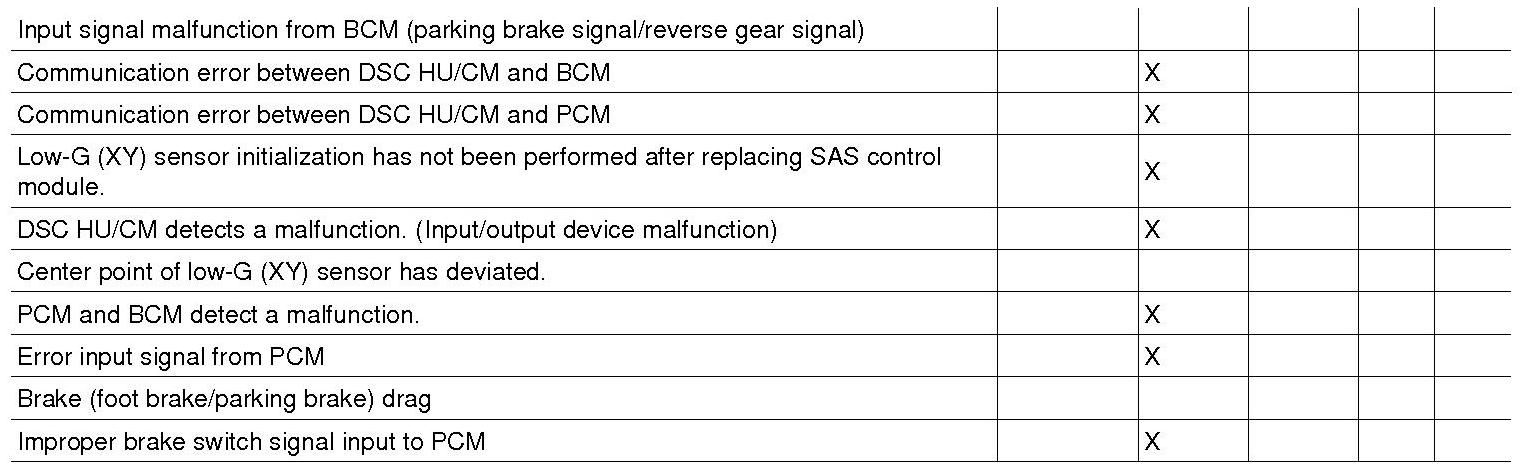

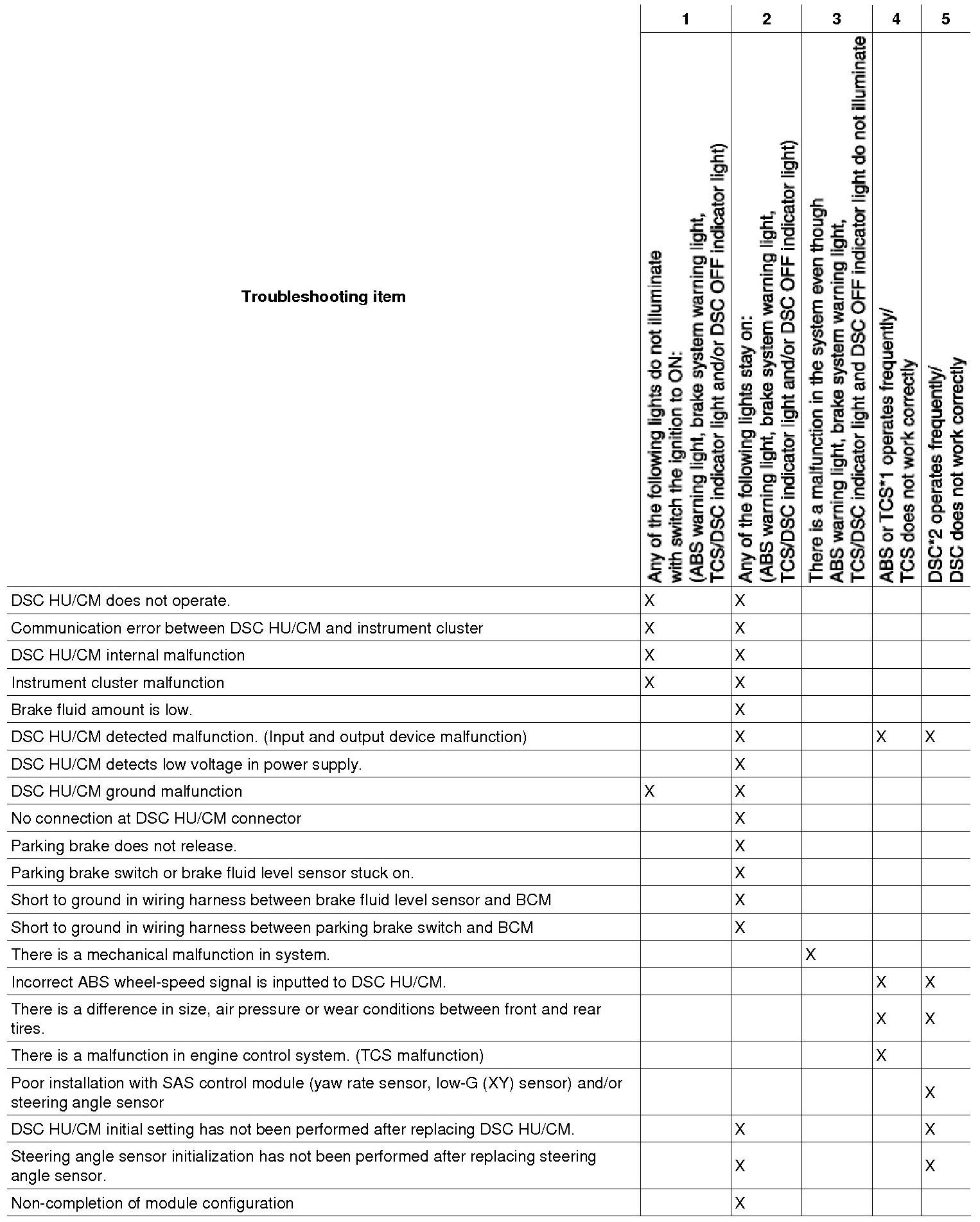

Verify the symptoms, and perform troubleshooting according to the appropriate number.
X: Applied
*1
DSC system function contains traction control function, TCS/DSC indicator light goes on and off while TCS operates *2
TCS/DSC indicator light goes on and off while DSC operates
