Parking Brake Lever: Service and Repair

PARKING BRAKE LEVER REMOVAL/INSTALLATION

1. Remove the center console box. Center Console Box Removal/Installation

2. Remove the console panel. Console Panel Removal/Installation

3. Remove the center console. Center Console Removal/Installation

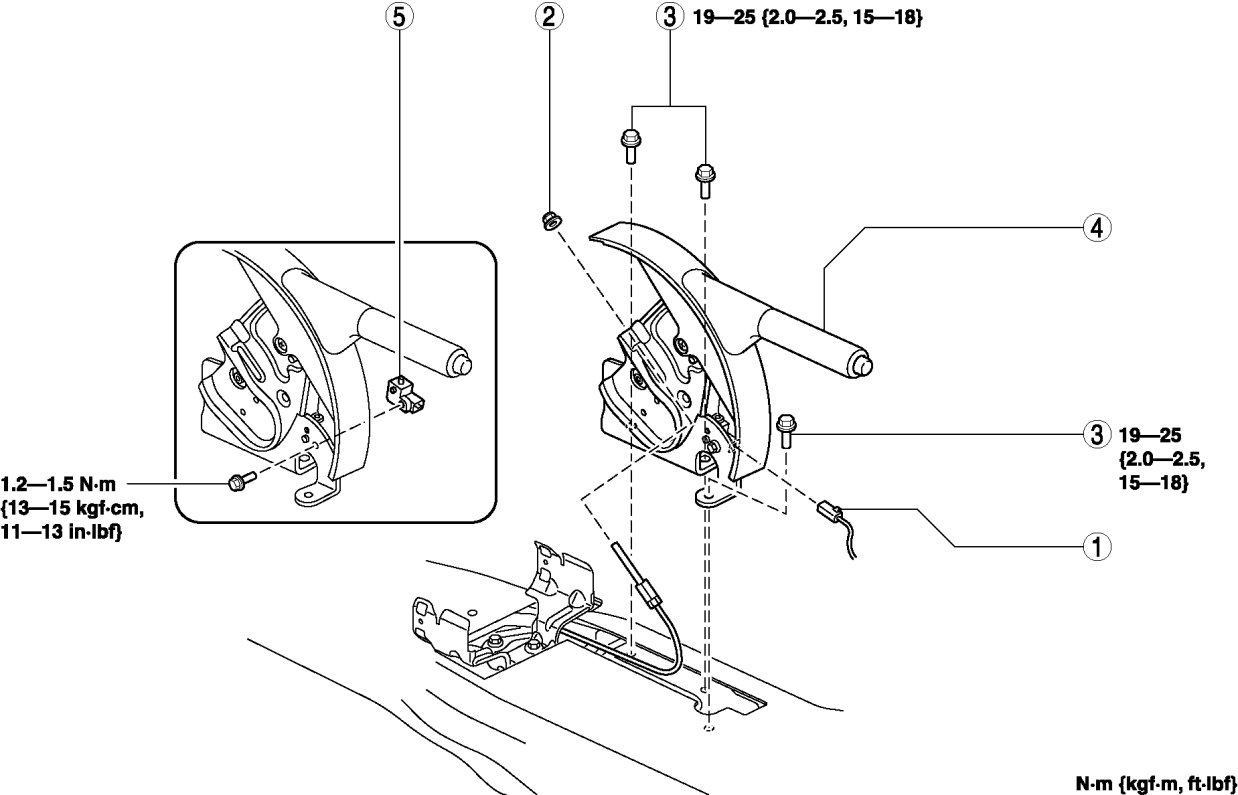

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

6. After installation, inspect the parking brake lever stroke. Testing and Inspection
