Oil Pressure Switch Removal
OIL PRESSURE SWITCH REMOVALWARNING: -
A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.
1.
Disconnect the negative battery cable.
2.
Remove aerodynamic undercover.
Service and Repair 3.

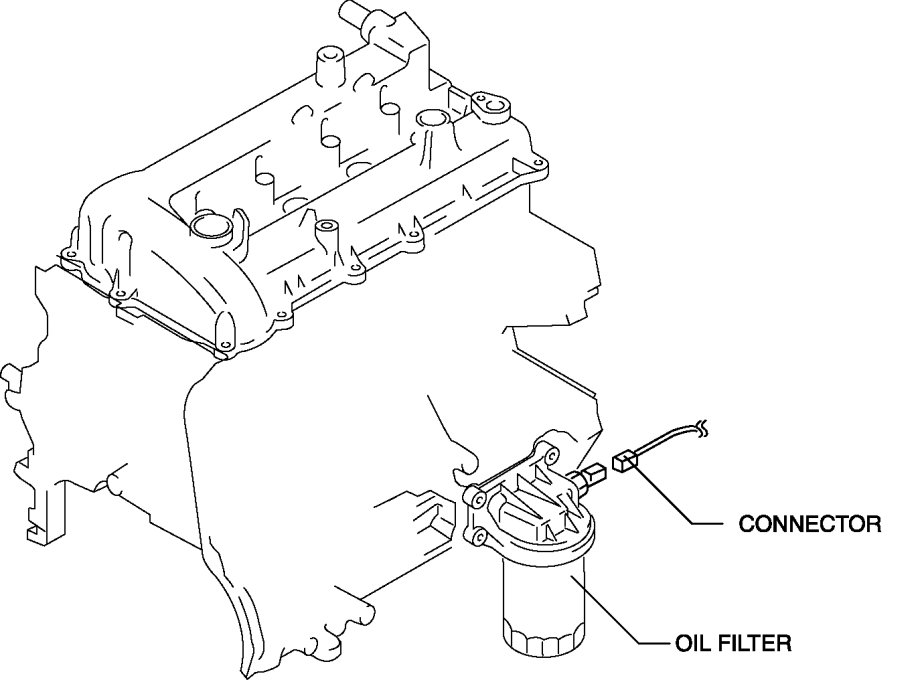

Disconnect the connector.
4.

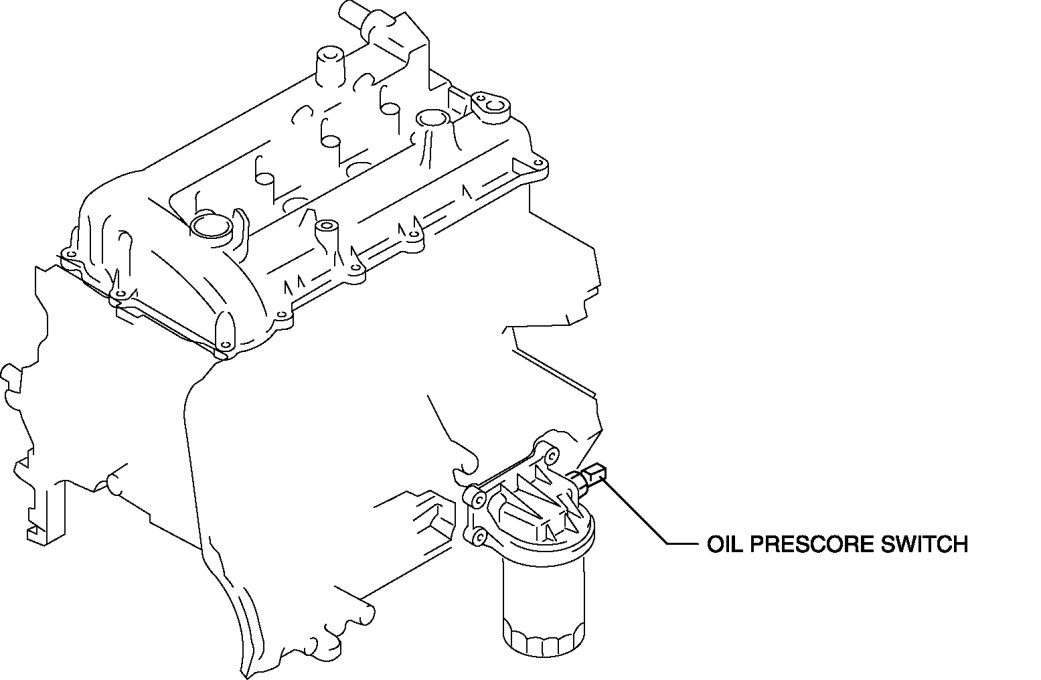

Remove the oil pressure switch.
