Blower Motor Switch: Testing and Inspection

REAR FAN SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER]

1. Remove the rear fan switch. Service and Repair

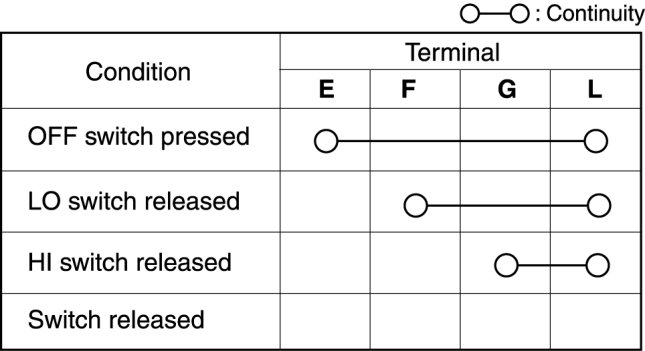

2. Verify that the continuity between the rear fan switch terminals is as indicated in the table.

- If not as indicated in the table, replace the rear fan switch.

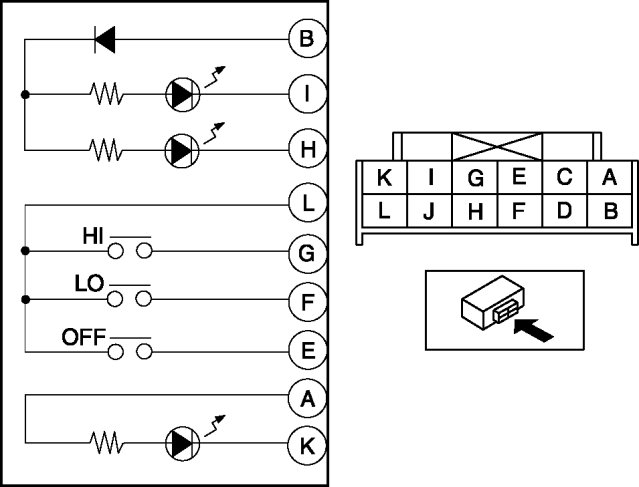

3. Apply battery voltage and ground to the following terminals and verify that the LEDs illuminate.

- If there is any malfunction, replace the rear fan switch.
