Cabin Ventilation Grille: Service and Repair
EXTRACTOR CHAMBER REMOVAL/INSTALLATION 1.
Remove the following parts:
a.
Rear combination light
Service and Repair b.
Rear splash shield
Service and Repair c.
Rear bumper
Removal and Replacement 2.

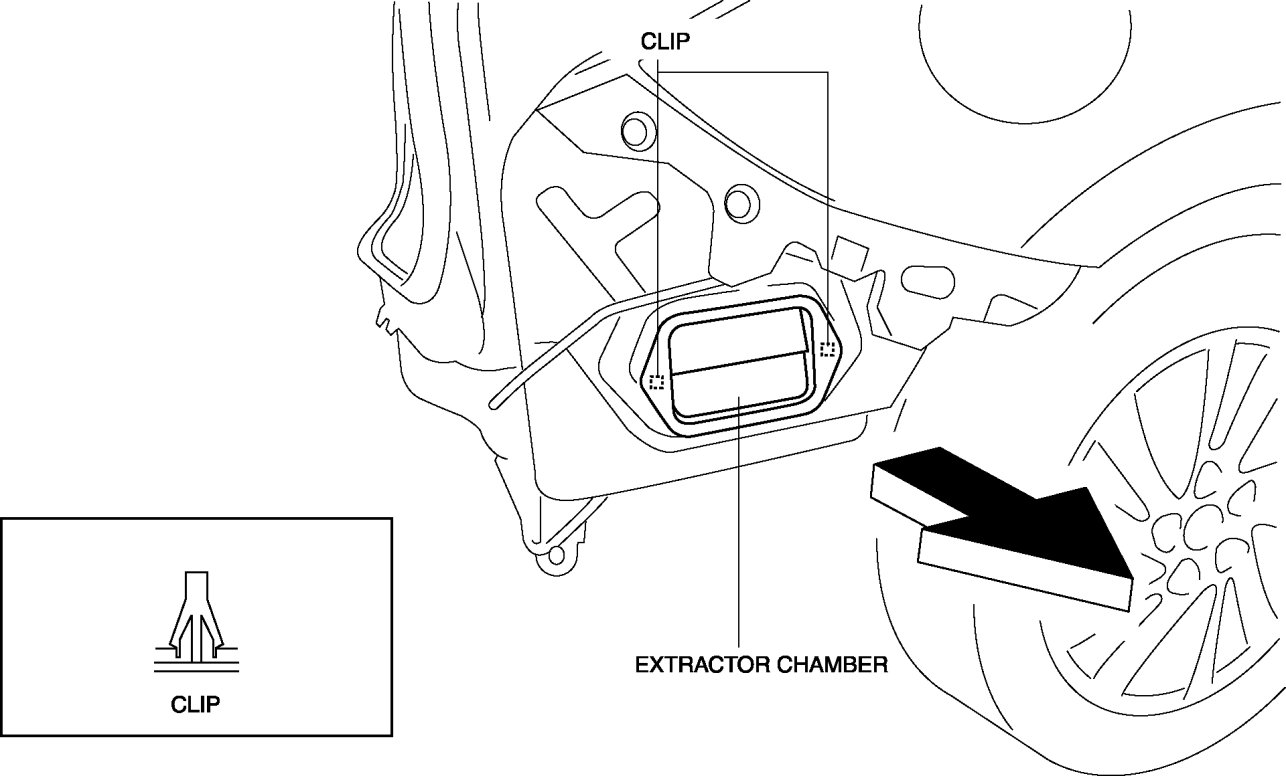

Pull the extractor chamber in the direction of the arrow shown in the figure while detaching the clips.
3.
Remove the extractor chamber.
4.
Install in the reverse order of removal.
