Rear Power MOS FET Transistor

REAR POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the battery cable.

2. Remove the following parts:
a. Center console box Center Console Box Removal/Installation

b. Console panel Console Panel Removal/Installation

c. Center console Center Console Removal/Installation

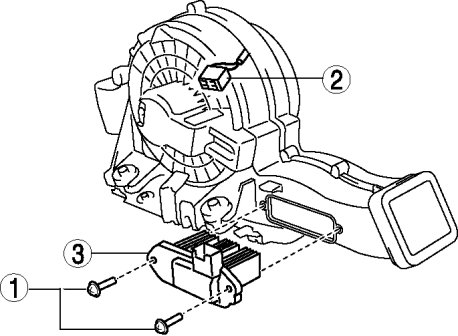

3. Remove the order indicated in the table.

4. Install in the reverse order of removal.
