Center Mounted Brake Lamp: Service and Repair
HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the liftgate upper trim.
3.

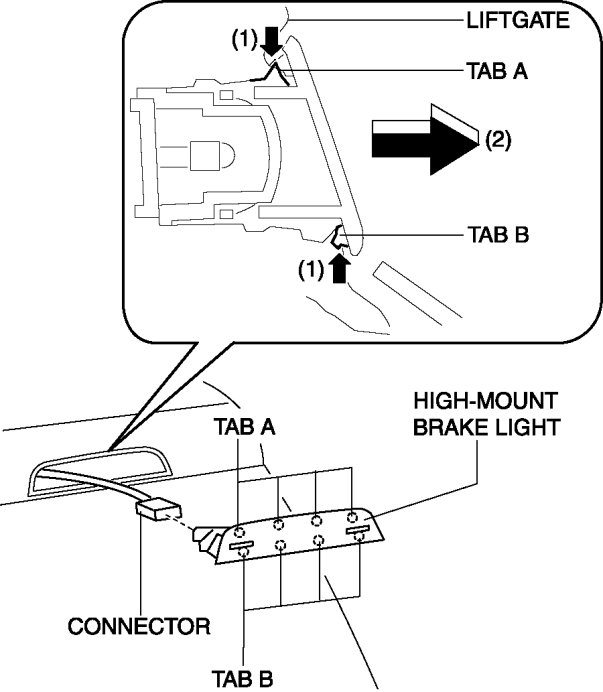

Pull the high-mount brake light in the direction of the arrow (2) shown in the figure and remove it while detaching tabs A and tabs B in the direction of the arrow (1).
4.
Disconnect the connector.
5.
Install in the reverse order of removal.
